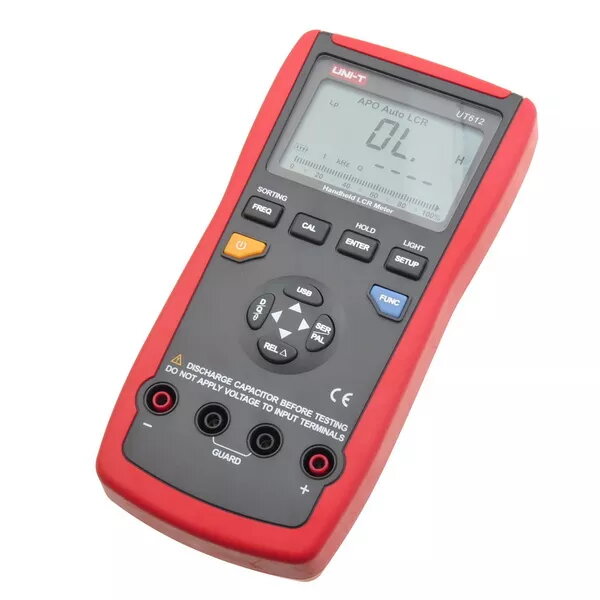

LCR Meter Unit UT612 with Diode and Transistor Testing — handheld LCR/ESR meter

The Unit UT612 is a professional-grade handheld LCR meter designed for precise measurement of inductance, capacitance, and resistance. This versatile instrument is an essential tool for electronics engineers, technicians, and hobbyists who require accurate component verification and troubleshooting capabilities. With its intuitive interface and robust design, the UT612 provides reliable performance for both laboratory environments and field service applications.

The primary advantage of the Unit UT612 lies in its high measurement accuracy and wide range of testing frequencies, which allow for detailed analysis of various electronic components. The device features a clear, easy-to-read display that presents measurement data alongside secondary parameters, ensuring comprehensive component evaluation. Its ergonomic handheld design, combined with simple controls, facilitates efficient operation during repetitive testing tasks, while the integrated diode and transistor testing functions add significant value for circuit diagnostics.

Suitable for

• Electronics troubleshooting and repair
• Component verification in quality control
• Circuit design and prototyping
• Educational laboratory experiments
• Field maintenance of electronic equipment

This device may not be suitable for high-voltage power applications or industrial environments where extreme electromagnetic interference is present. It is designed for low-voltage electronic components and should not be used to measure live circuits or high-power electrical installations.

Key specifications

• Measurement parameters: Inductance, Capacitance, Resistance
• Additional functions: Diode and transistor testing
• Display: Multi-parameter LCD with backlight
• Interface: USB connectivity for data transfer
• Power source: Battery operated

To use the Unit UT612, first ensure the device is powered on and the appropriate measurement mode is selected based on the component type. Connect the component to the test terminals or use the provided test leads for secure contact. The meter will automatically detect the component characteristics and display the primary and secondary values on the screen. For transistor testing, insert the component into the designated socket according to its pin configuration.

What to consider before purchase

• Check if the measurement range covers your specific component requirements
• Verify if the included accessories meet your testing needs
• Consider the necessity of data logging via USB for your projects

For optimal accuracy, perform a calibration using the open/short circuit compensation feature before starting your measurement session. Always ensure components are fully discharged before connecting them to the meter to prevent damage to the internal circuitry.
