Cable locator Unit UT683KIT — digital cable and wire tracer with LCD display and audio alert

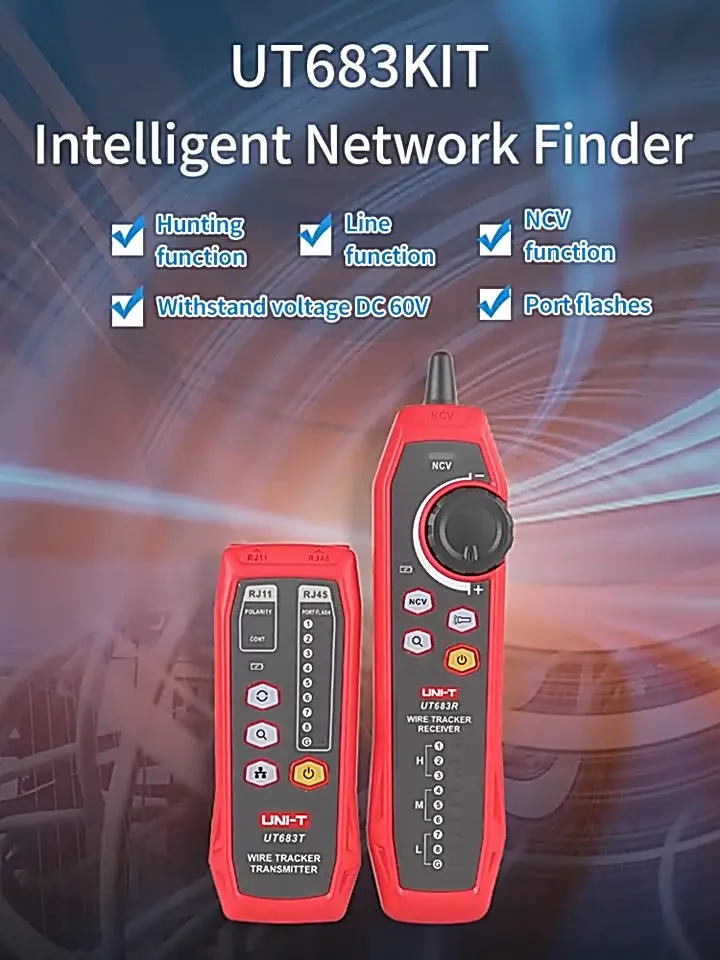

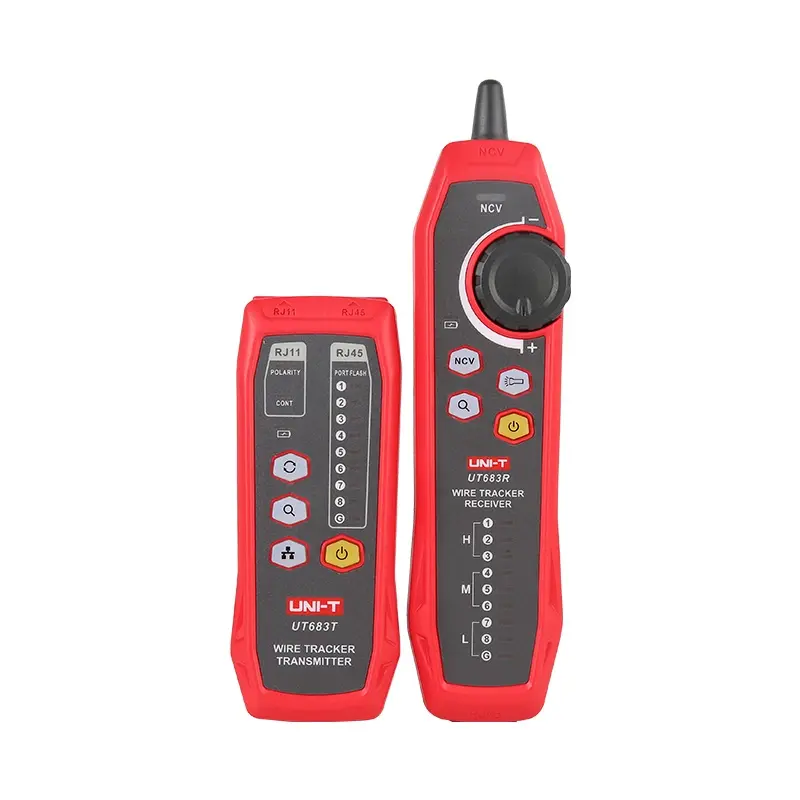

The UNI-T UT683KIT digital cable locator combines a transmitter and a receiver in a compact kit designed for tracing low-voltage cable runs and diagnosing faults. Intended for installers, service technicians and electricians, the device provides noise-resistant performance, automatic fault detection and tools for verifying continuity, polarity and wiring connections. The kit includes the transmitter, receiver, charging cable and test leads, and is supplied in a carrying case for convenient transport and storage.

Advantages

The UT683KIT delivers fast and accurate cable tracking even in noisy environments and supports long-distance tracing for RJ11 and RJ45 lines. Built-in rechargeable lithium-ion batteries ensure extended field use without frequent recharging. Safety features include operation up to 60 V DC and a non-contact voltage (NCV) detector on the receiver. Ergonomic, lightweight housings and a 3.5 mm headphone jack improve usability in confined or noisy conditions.

Key specifications

• Manufacturer: Uni-T
• Manufacturer code: UT683KIT
• Certifications: CE, RoHS
• Power supply: 1050 mAh lithium-ion rechargeable battery
• Transmitter functions: flashing port, cable tracking, line alignment, polarity test
• Break/short-circuit test (transmitter): up to 10 kΩ
• Transmitter operating time: >8 hours
• Receiver functions: cable tracking (RJ11 >3000 m; RJ45 >100 m), NCV
• Receiver operating time: >5 hours
• Headphone jack (receiver): 3.5 mm
• Low power indicator: yes
• Transmitter dimensions: 130 × 51 × 28 mm; weight approx. 95 g
• Receiver dimensions: 197 × 48 × 34 mm; weight approx. 127 g

How to use

Connect the transmitter to the cable under test using the appropriate RJ11, RJ45 or crocodile leads supplied, then switch the transmitter on and select the desired test mode. Use the receiver to follow the generated signal along the cable route, listening via the built-in speaker or the 3.5 mm headphone jack for clearer indication. For continuity, short or break checks, use the transmitter’s test mode and observe the receiver response; polarity is indicated by the dedicated polarity test function. Recharge both units with the supplied USB cable when the low power indicator appears.

Recommendations

Use the UT683KIT only on low-voltage installations up to 60 V DC and follow local safety practices. Verify connectors and test leads are correctly attached before tracing. For extended or critical diagnostics, combine signal tracing with visual inspection and isolate circuits as required. Store the kit in the carrying case to protect the instruments during transport.
