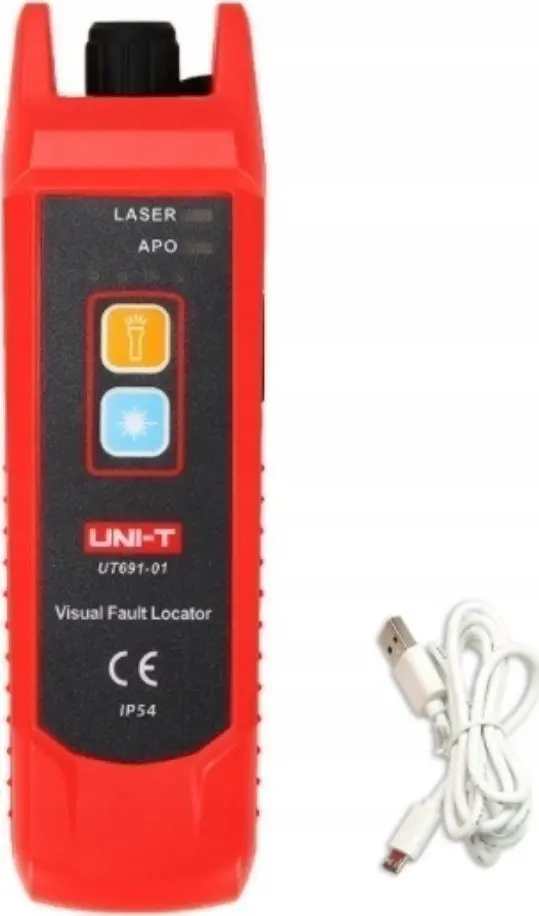

Optical cable tester Unit UT691-01 650 nm 1 mW, handheld fiber checker

The Unit UT691-01 handheld optical cable tester emits a visible 650 nm red light at 1 mW for visual fault finding and continuity checks in both single-mode and multimode fiber links. Compact and battery-powered, this fiber checker is intended for quick on-site identification of breaks, severe bends, and discontinuities in fiber runs. It provides a simple visible-light source for installers and technicians who need rapid basic verification of physical fiber integrity without relying on complex test equipment.

Advantages

The Unit UT691-01 combines portability with a focused visible light output that clearly highlights fiber breaks and poor terminations. Its 1 mW power level and 650 nm wavelength make faults easier to detect by eye in most single-mode and multimode fibers. The handheld design and simple on/off operation enable fast deployment in field troubleshooting and maintenance tasks. The tester requires no complex setup and is compatible with standard fiber connectors for quick checks.

Suitable for

• Visual fault location and continuity checks on single-mode and multimode fiber cables
• On-site troubleshooting and maintenance of fiber links in buildings and data centers
• Quick verification of newly installed fiber runs and connector terminations
• Field technicians and installers performing basic integrity checks

Key specifications

• Visible wavelength: 650 nm (red light)
• Output power: 1 mW
• Form factor: handheld, pocket-sized
• Power source: battery-powered for portable use
• Compatibility: works with common single-mode and multimode fiber types and standard connectors

How to use

Insert the appropriate fiber connector or mate the bare fiber to the tester's output interface, then switch the Unit UT691-01 on to emit the 650 nm red light. Observe the far end of the fiber or the accessible fiber jacket to identify bright light leakage, breaks, or strong bends where the light becomes visible. Use the tester to check connector continuity by looking for visible light at the far end or using an adapter for connectorized fibers. Turn the unit off after inspection to conserve battery life.

Usage recommendations

For safe and effective use, avoid looking directly into the light source and do not view emitted light with optical instruments. Use the tester in a dimly lit environment to increase visibility of the red light. When verifying connectorized fibers, ensure connectors are clean before testing to avoid misinterpreting contamination as a fault. Carry spare batteries and protective caps for the output to maintain device readiness during field work.
