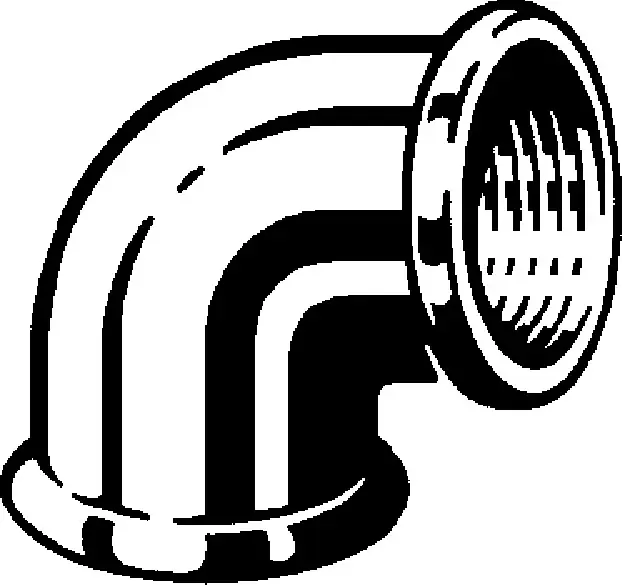

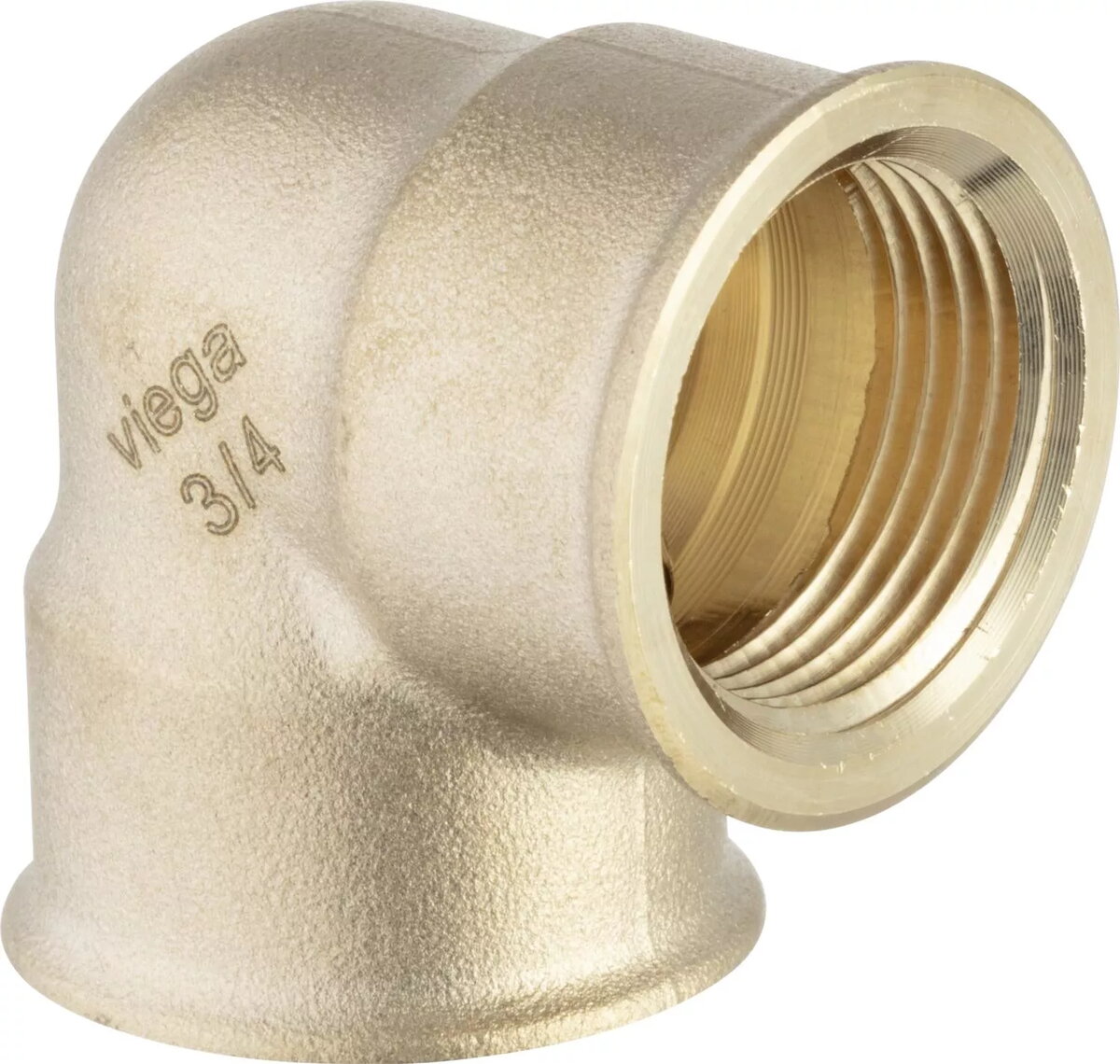

VIEGA Viega 3090 90° pipe elbow bend - single piece (bend angle 90°)

VIEGA Viega 3090 is a 90° pipe elbow designed to change the direction of piping runs with a fixed right-angle bend. Supplied as a single-piece elbow, it is intended for plumbing and HVAC installations where a compact, reliable 90° turn is required. The component connects compatible piping sections to form a neat directional joint and is suitable for use in confined spaces where an accurate bend angle simplifies layout and installation.

Advantages

The single-piece construction provides a consistent, factory-formed 90° angle that eliminates on-site bending and reduces installation time. The part is designed for compatibility with common piping systems used in building services, offering predictable geometry for accurate alignment. Its compact form helps maintain clearances in tight installations and supports a clean, professional appearance in visible piping runs.

Suitable for

• Changing the direction of plumbing pipework at a right angle
• HVAC duct and piping runs requiring compact 90° turns
• Installations in service shafts, under sinks, and other confined spaces
• Repair or replacement of existing right-angle joints

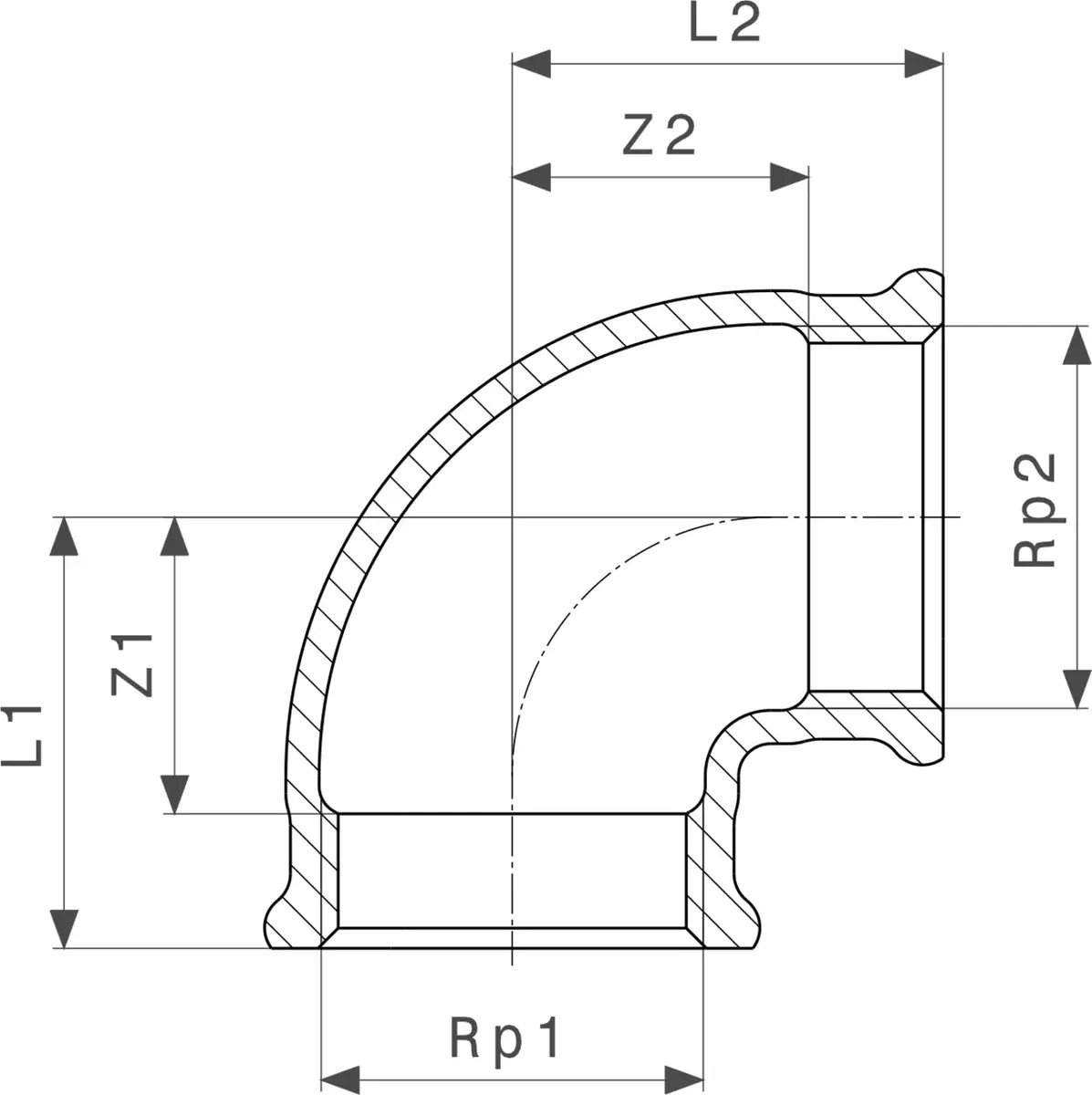

Key specifications

• Bend angle: 90° (fixed)
• Configuration: single-piece elbow
• Application: plumbing and HVAC directional change
• Use case: right-angle pipe connections in confined or visible installations

How to use

Select a compatible pipe material and size that matches the elbow's connection system, prepare pipe ends according to the manufacturer's guidelines, and join the elbow into the run using the appropriate installation method for the pipe system (such as press, solder, or mechanical coupling where applicable). Ensure correct alignment so the 90° direction is achieved and verify connections are secure and leak-free after installation. Follow applicable building codes and safety practices during the work.

Usage recommendations

Before installation, confirm compatibility between the elbow and the piping material and connection method. Allow sufficient space for joining tools and inspection. For concealed or high-pressure systems, follow the project specification and test the assembly after installation as required by local regulations.
