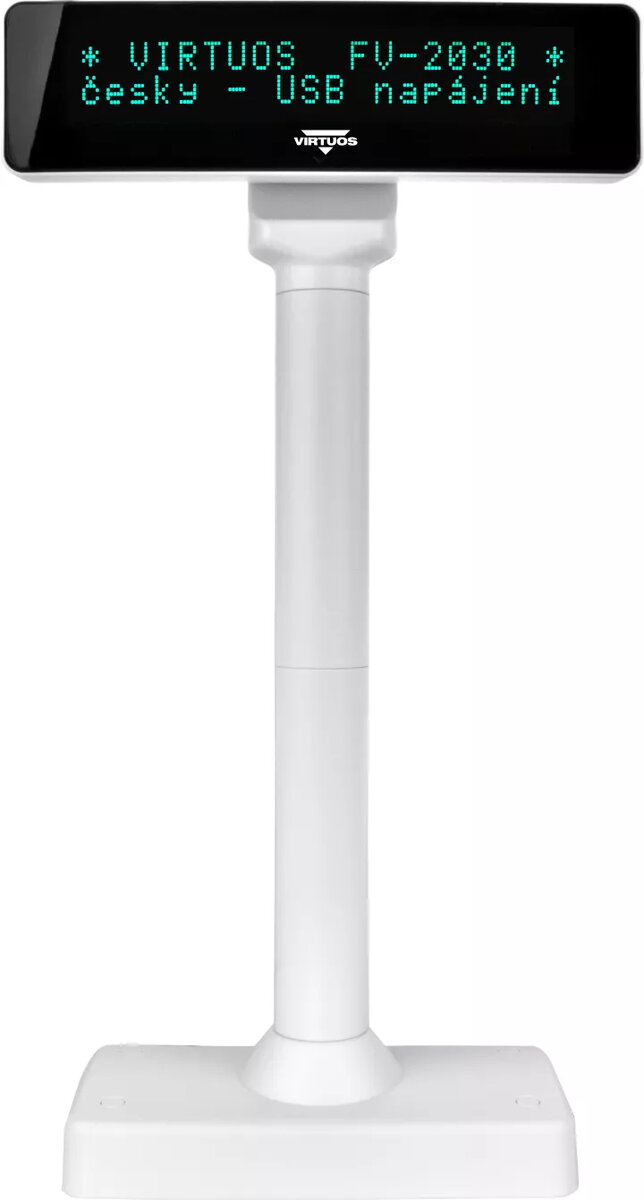

VFD customer display VIRTUOS FV-2030W 2x20 9mm USB white

VIRTUOS FV-2030W is a vacuum fluorescent (VFD) customer display with a 2x20 character layout and 9.2 mm character height, designed for point-of-sale systems and terminals. The unit is powered directly from a USB port (5 V) without the need for an external power supply and supports multiple connection options on request such as RS-232, Bluetooth, Wi‑Fi or Ethernet. The display provides adjustable tilt and height, editable welcome message, and a range of command emulations for integration with common POS software.

Advantages

The display features a modern compact design with smooth edges and low power consumption (max. 2.5 W). It offers high readability with a bright green VFD (500–1000 cd/m²), 29 international character sets including Czech Latin II (CP852) and one user-definable character set. Connectivity is implemented via USB 2.0 using the Prolific PL2303 virtual serial chipset for broad OS compatibility. Three height configurations are available by using two extension tubes, and the base and rear mounting holes (including VESA-compatible positions) allow secure mechanical attachment.

Suitable for

• Retail checkouts and point-of-sale terminals
• Hospitality counters and ticketing desks
• Any customer-facing information display requiring USB connectivity

Key specifications

• Display type: VFD (vacuum-fluorescent), green
• Format: 40 characters (2 rows × 20 columns)
• Character size: 5 × 7 matrix, 5.5 mm (W) × 9.2 mm (H)
• Dot size: 0.86 × 1.2 mm
• Brightness: 500–1000 cd/m² (adjustable)
• Character sets: 29 international sets incl. Czech Latin II (CP852); 1 user-defined set
• Power: 5 V via USB, consumption max. 2.5 W
• Interfaces: USB 2.0 (Prolific PL2303); optional RS-232, Bluetooth, Wi‑Fi, Ethernet on request
• Mounting: base with 4 holes; 4 rear mounting holes (VESA-compatible)
• Dimensions (panel): 214 × 60 × 33 mm; base: 174 × 45 × 90 mm; two posts: 130 × Ø33 mm
• Tilt/rotation: 0–45° tilt / 360° rotation
• Weight: approx. 1 kg
• MTBF: 30,000 hours
• Compatibility: Windows (XP–10, Server 2008/2012/2016, Embedded), Windows 10 IoT, macOS (v3.1), Android 4.2+

How to use

Connect the display to the host system using the supplied 1.7 m USB-A cable; the display will draw 5 V directly from the USB port. Install the provided drivers from the included CD or download updated drivers if required; the Prolific PL2303 virtual COM driver enables serial emulation over USB. Configure the welcome message and timeout/idle mode (1–45 minutes) via ESC command sequences or using POS software that supports one of the device emulations. Adjust height and tilt using the extension tubes and the base to suit your counter setup, and secure the base or rear with screws if a fixed installation is required.

Usage recommendations

The display is intended for indoor POS use; ensure a stable USB power source and avoid exposure to strong magnetic fields or liquids. For reliable integration, use the driver matching your OS and test command emulation with your POS system (Aedex, Epson, DSP800, Firich CD5220 compatible). Regularly back up any custom character definitions if reprogramming is required.
