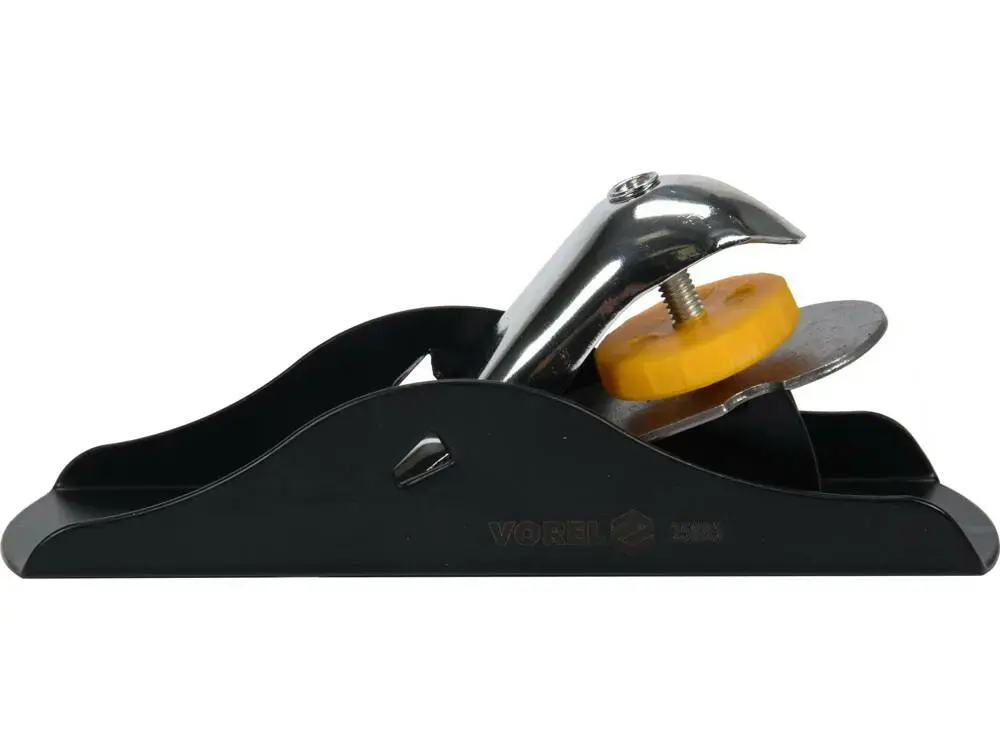

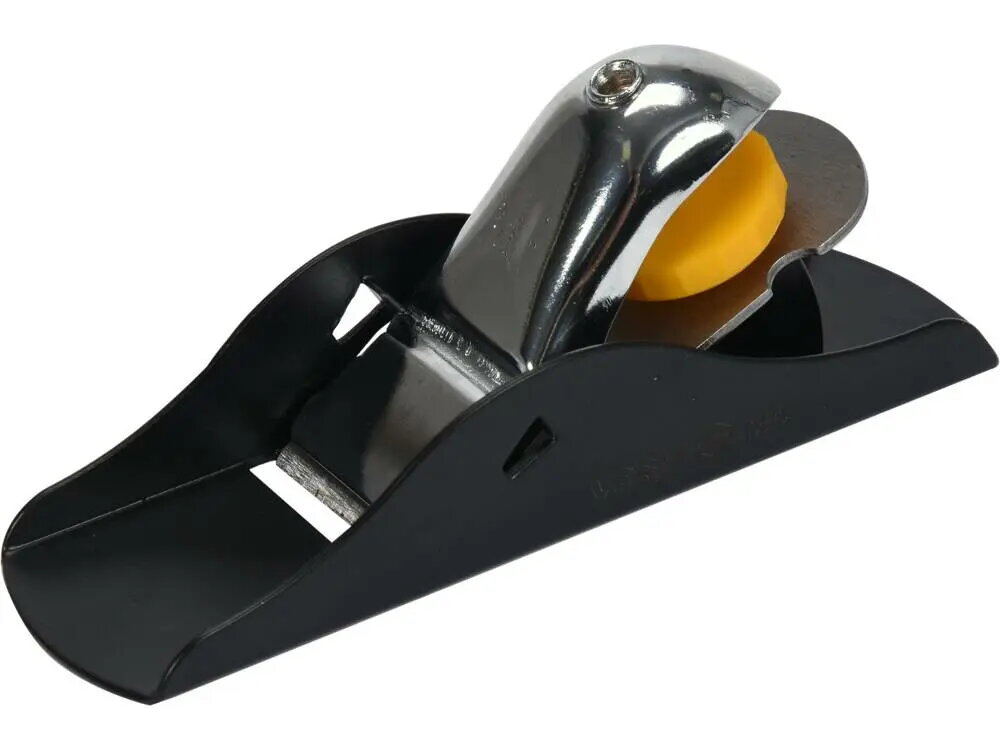

Hand plane Vorel 25885 — steel body, 165 mm length, single-piece

The Vorel 25885 hand plane — steel body, 165 mm length, single-piece is a compact bench tool designed for smoothing, trimming and fine finishing of wood surfaces, edges and joints. With a 165 mm base and a low-profile steel construction, it is intended for light woodworking, model making and repair tasks that require precise shaving and controlled material removal. The plane is supplied as a single unit and combines a rigid metal body with a ground sole and a narrow cutting width for accurate results on small workpieces.

Advantages

The steel body provides robust flatness and long-term dimensional stability compared with cast or plastic alternatives, while the 1.5 mm sheet construction keeps the plane compact and light. The ground sole ensures consistent contact with the workpiece for uniform shaving, and the large adjustment knob allows reliable blade clamping and pressure control. The relatively narrow 42 mm blade and 50 mm working width make the tool suitable for detailed finishing and modeling where controlled, small cuts are needed.

Suitable for

• Smoothing and leveling small wooden panels and trim
• Edge chamfering and finishing on furniture parts and joinery
• Model making and precision woodworking tasks
• On-site repairs and adjustments of wooden fittings

Key specifications

• Body material: 1.5 mm steel sheet
• Base (sole) length: 165 mm
• Working width: 50 mm
• Blade width: 42 mm
• Ground sole for improved flatness and consistent shaving
• Single-piece hand plane supplied as one unit

How to use

Secure the plane on a flat workbench when adjusting the blade. Set the blade depth using the large knob so that only a light shaving is taken on the first pass; make incremental adjustments until the desired cut is achieved. Hold the plane with one hand on the front section and the other on the rear area, keeping even pressure and moving the tool along the grain where possible for the cleanest finish. For narrow edges or small components, support the workpiece firmly in a vice or with clamps to prevent movement.

Usage recommendations

Use sharp, properly set blades and make test passes on scrap to avoid overcutting. When working on delicate or thin materials, reduce blade projection and take multiple light passes rather than one deep cut. Keep the sole clean and free of debris; wipe and protect the steel body after use to reduce surface corrosion.
