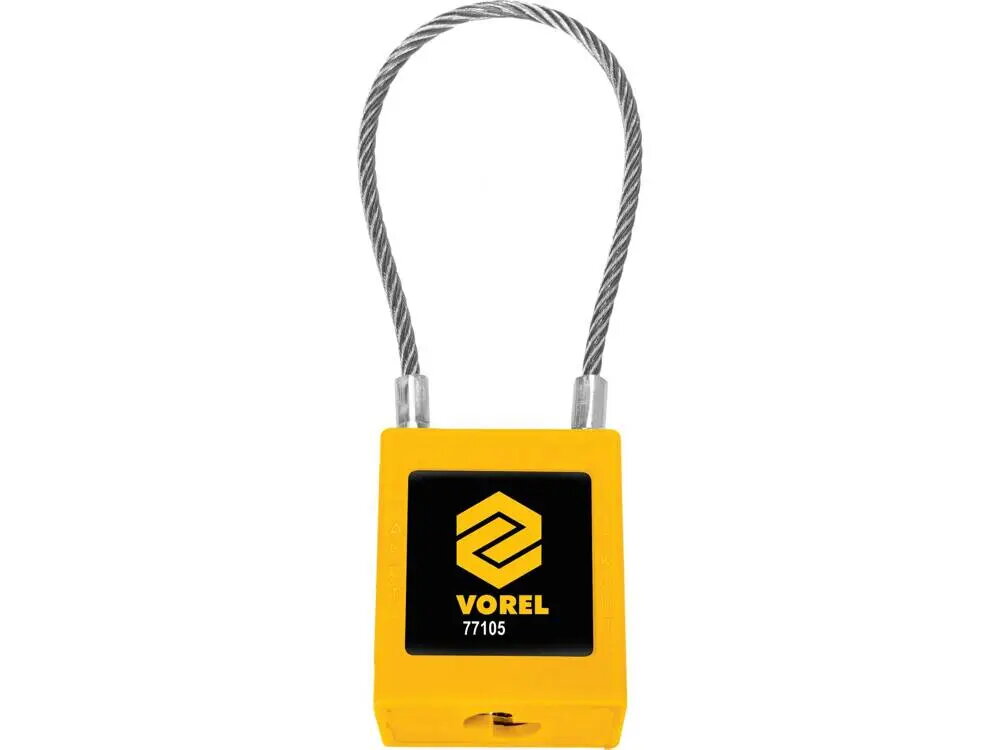

Padlock Vorel 77105, brass body, 45 mm height, 1 pc

Vorel 77105 is a compact brass-bodied padlock with a 45 mm body height supplied as a single unit. Intended for basic keyed security of gates, lockers, sheds and storage boxes, it combines a metal construction with a flexible stainless steel cable shackle to allow locking of items with awkward or larger closure points. The product includes two milled keys and is designed for everyday domestic and light commercial use where a simple, reliable locking solution is required.

Advantages

The padlock body is made from a zinc-based alloy protected by a thick nylon layer that improves resistance to mechanical wear and environmental exposure. A multi-centric cylinder insert increases pick resistance and the key is held in the body until the shackle is fully closed, reducing the risk of accidental key retention. The flexible stainless steel cable shackle (3.2 mm diameter, 175 mm total length, 85 mm loop height) enables locking around irregular or larger objects that rigid shackles cannot reach. Two milled keys are provided for convenient operation.

Suitable for

• Securing garden gates and fences
• Locking storage sheds and outdoor lockers
• Protecting toolboxes and storage boxes
• Locking items with non-standard or bulky hasps where a rigid shackle would not fit

Key specifications

• Body height: 45 mm
• Body material: zinc-based alloy with thick nylon coating
• Shackle type: flexible stainless steel cable
• Shackle diameter: 3.2 mm
• Shackle total length: 175 mm; loop height: 85 mm
• Body dimensions: 39.5 x 20 x 45 mm
• Locking mechanism: multi-centric insert; key blocked until closed
• Keys supplied: 2 milled keys with non-centric channel

How to use

Insert one of the supplied milled keys into the cylinder and turn to release the cable shackle. Thread the flexible cable through the hasp, chain or openings to be secured and insert the cable end into the lock body until it seats. Turn the key to lock; the key will remain blocked in the body until the shackle is fully engaged. Keep the spare key in a safe place separate from the lock to avoid accidental lockouts. Regularly inspect the cable and the nylon coating for signs of wear or corrosion and replace the lock if damage compromises security.

Usage recommendations

For best performance, use the padlock in environments appropriate for a general-purpose lock: domestic, workshop and light commercial settings. Avoid prolonged exposure to aggressive chemical environments or continuous marine immersion. Lubricate the cylinder annually with a graphite or dry lock lubricant to maintain smooth operation and prevent freezing in cold conditions.
