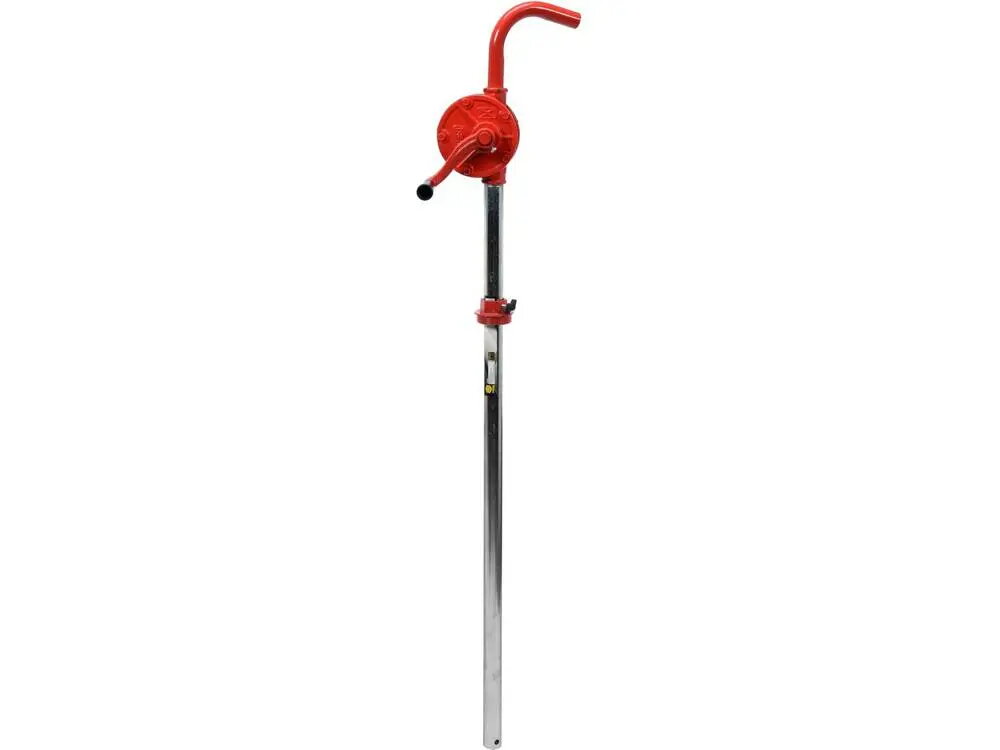

Vehicle repair/maintenance tool Vorel 78000 – single-piece automotive service tool

Vorel 78000 is a single-piece vehicle repair and maintenance tool designed for transferring oils and liquid lubricants from barrels to smaller containers. The unit incorporates a rotary hand-operated pump with a crank mechanism intended for routine automotive service tasks where a compact, manual pumping solution is required. Supplied as one complete pump assembly, it is compatible with standard barrel filler openings when secured with the included fastening ring and screw.

Advantages

The rotary crank design provides controlled pumping without external power, enabling precise transfer of oil at up to 19 l/min. Its construction supports a maximum lifting height of 5 m and a maximum lifting depth of 1.5 m, making it suitable for a range of barrel-to-container transfer scenarios. The pump is simple to install, operate and service, and can be emptied manually after use to reduce residual fluid inside the pump chamber.

Suitable for

• Transferring engine oil, gear oil and liquid lubricants from barrels to smaller containers
• Routine oil change and maintenance tasks in workshops and garages
• DIY vehicle servicing where manual, non-electrical pumping is required
• Situations requiring controlled, metered discharge without powered equipment

Key specifications

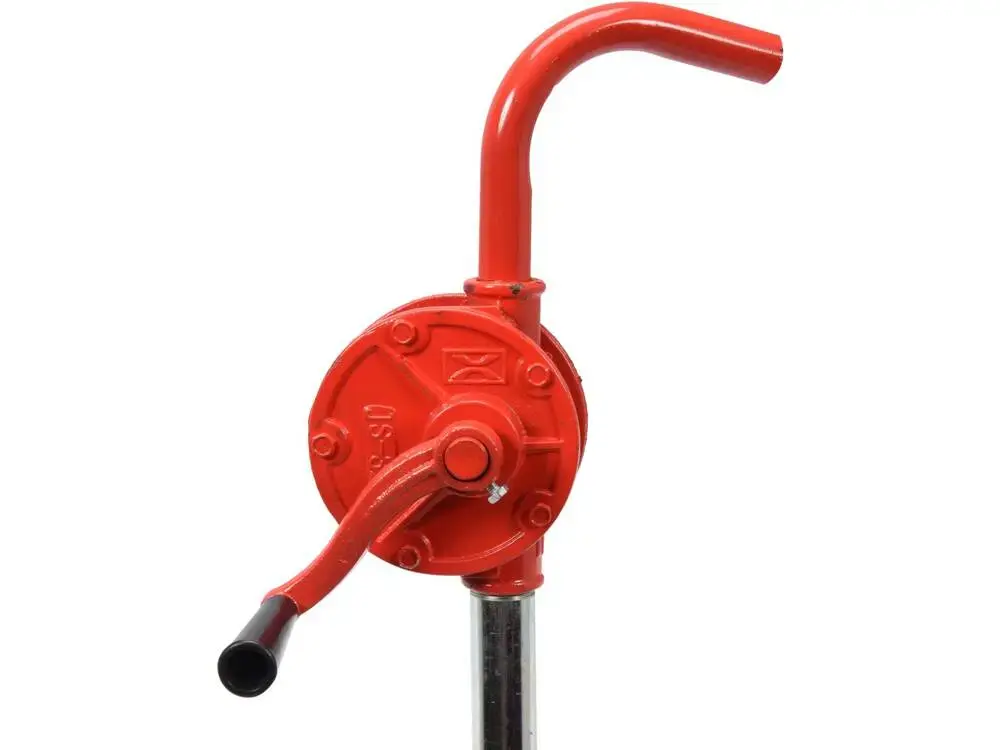

• Pumping mechanism: rotary hand crank
• Maximum performance: 19 l/min
• Maximum lifting height: 5 m
• Maximum lifting depth: 1.5 m
• Suitable fluids: oils and liquid lubricants
• Supply form: single-piece pump assembly with fastening ring and locking screw

How to use

Secure the fastening ring into the threaded filler opening of the barrel, insert the pump tube through the ring and lock it with the screw provided to ensure free rotation of the crank. Position the receiving container under the pump outlet. Operate the pump by turning the crank handle in a smooth, continuous motion to press oil from the barrel through the pump and into the container. When pumping is finished, withdraw the pump tube from the barrel and rotate the crank a few additional turns to evacuate remaining fluid from the pump chamber.

Usage recommendations

Use the pump only with compatible oils and lubricants. Ensure the fastening ring is securely attached to avoid leaks and verify that the receiving container is stable and correctly positioned. After use, clean external surfaces and store the pump in a dry place to prevent contamination and prolong service life.
