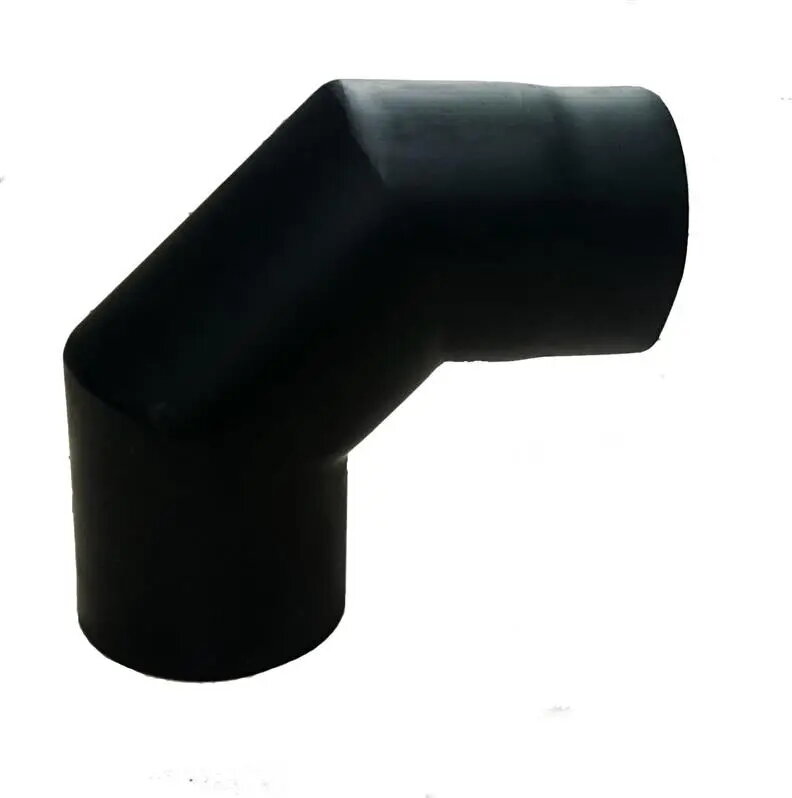

WADEX Chimney Elbow 90x115mm

The WADEX Chimney Elbow 90x115mm is a precision-engineered component designed for the efficient management of flue gases in residential and commercial heating systems. This 90-degree elbow allows for a smooth change in the direction of the chimney pipe, ensuring optimal airflow and system integrity. Constructed from high-quality steel and finished in a neutral black color, it integrates seamlessly into standard chimney installations while maintaining structural stability under demanding conditions.

Advantages

The primary advantage of this chimney elbow lies in its robust steel construction, which provides exceptional durability and resistance to thermal stress. Its precise 90-degree geometry facilitates a reliable connection between pipe sections, minimizing turbulence and ensuring consistent draft performance. The heat-resistant finish ensures that the component maintains its aesthetic and functional properties even when exposed to high operating temperatures, making it a dependable choice for long-term heating system maintenance.

Suitable for

• Residential wood-burning stoves and fireplace inserts
• Commercial heating ventilation systems
• Connecting chimney pipe segments at right angles
• Upgrading or repairing existing flue gas exhaust setups

This component is not suitable for use in systems requiring a damper mechanism, as it does not feature an integrated valve. Additionally, it should not be used in installations where the pipe diameter does not match the 115mm specification, as this would compromise the seal and safety of the flue gas ventilation.

Key specifications

• Material: Steel
• Diameter: 115mm
• Angle: 90 degrees
• Color: Black
• Maximum temperature resistance: 450°C

To install the WADEX Chimney Elbow, ensure that the heating system is completely cooled down. Align the elbow with the existing chimney pipe sections, ensuring a tight and secure fit at all connection points. Use appropriate heat-resistant sealant or mechanical fasteners if required by local building codes to ensure the system is airtight and leak-proof before initiating the first firing of the heating appliance.

What to consider before purchase

• Verify that your existing chimney system requires a 115mm diameter connection.
• Confirm that the 90-degree angle is appropriate for your specific installation path.
• Ensure the system operating temperature does not exceed 450°C.
• Check local regulations regarding the use of steel flue components in your area.

Usage recommendations

Regularly inspect the connection points of the chimney elbow for signs of soot buildup or mechanical wear. Ensure that the chimney system is professionally cleaned and maintained annually to prevent blockages and maintain optimal exhaust efficiency.
