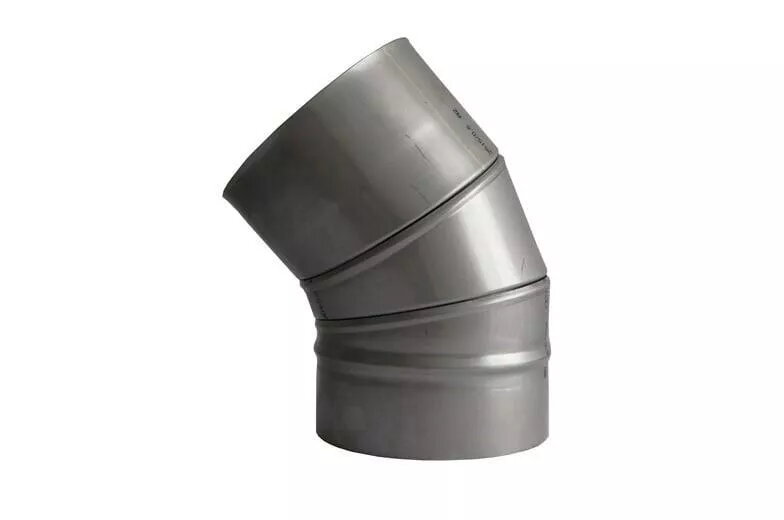

Chimney Elbow WADEX 115120000 45° for flue systems, 115 mm diameter

Chimney Elbow WADEX 115120000 45° for flue systems, 115 mm diameter is a 45-degree elbow designed to redirect exhaust gases in chimney and venting installations that use 115 mm ducting. The component provides a controlled change of direction for flue pipes, allowing installers to navigate around obstacles or align sections of the system while maintaining appropriate flow characteristics for residential and light commercial heating appliances.

Advantages

The WADEX 45° chimney elbow is made to provide a snug fit with 115 mm flue sections, offering consistent alignment and sealing when connected with compatible pipe segments or fittings. Its angled profile reduces stress on adjacent joints compared with sharper bends, helping preserve system integrity. The component is suitable for use in systems where a moderate directional change is needed and is compatible with common installation practices for small-scale heating and ventilation setups.

Suitable for

• Residential boiler and stove flue routing with 115 mm ducting
• Light commercial heating systems requiring a 45° directional change
• Retrofit or repair work where an existing 115 mm flue line needs rerouting

Key specifications

• Angle: 45° bend suitable for gradual directional changes
• Nominal diameter: 115 mm
• Material compatibility: designed for standard flue pipe connections used in small-scale heating systems
• Function: redirects exhaust gases and adapts piping direction

How to use

Install the elbow as part of the flue system by sliding or joining it to adjoining 115 mm pipe sections according to the system manufacturer's connection method (e.g., male/female ends, clamps or seals as applicable). Position the elbow so the flow direction follows the intended route and ensure joints are properly sealed and supported to prevent sagging or separation. Observe clearances, slope, and local building codes, and verify that the overall flue geometry maintains acceptable draft and condensate drainage where relevant.

Usage recommendations

Before installation, inspect the existing system and confirm compatibility with 115 mm components. Use appropriate sealing materials and mechanical supports at joints to secure the elbow, and consult the appliance and local regulations to ensure safe, code-compliant installation.
