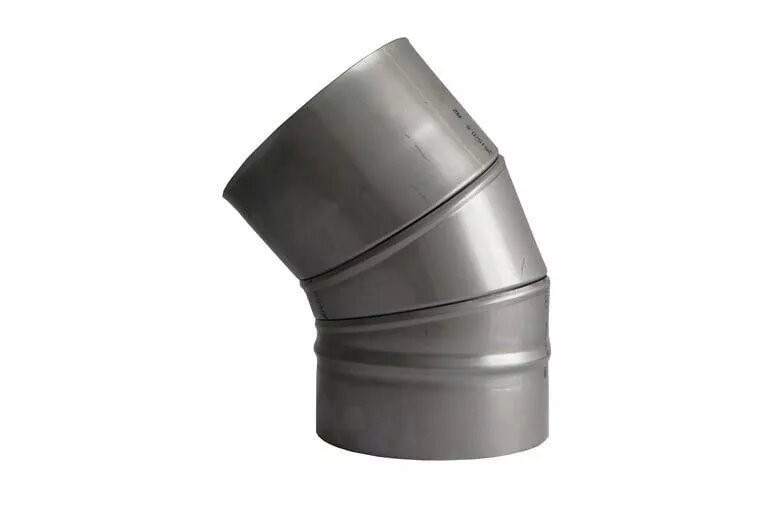

WADEX 115130000 Chimney Elbow 45°

The WADEX 115130000 chimney elbow 45° is a professional-grade component engineered for flue gas ventilation systems. This precision-manufactured elbow facilitates a 45-degree directional change in chimney piping, ensuring optimal routing of exhaust gases. Built with high-quality materials, it provides the necessary structural integrity and heat resistance required for safe heating exhaust installations in both residential and commercial environments.

Advantages

This chimney elbow offers exceptional durability and resistance to the harsh conditions typically found within flue gas systems. Its precise construction ensures a tight fit with compatible piping, which is critical for maintaining system airtightness and preventing the leakage of combustion byproducts. The 45-degree angle provides flexibility in system design, allowing for efficient routing around structural obstacles while maintaining proper draft performance.

Suitable for

• Residential heating system exhaust configurations
• Commercial flue gas ventilation setups
• Adjusting the trajectory of chimney piping systems
• New installations or maintenance of existing flue pipes

When it may not be suitable

This component is not intended for use in systems where the flue gas temperature exceeds the material's rated thermal capacity. It is also not suitable for non-standard pipe diameters or systems requiring a different angle of deflection.

Key specifications

• Angle: 45 degrees
• Application: Flue gas ventilation
• Material: High-grade chimney steel
• Compatibility: Standard chimney piping systems

How to use

Installation should be performed by a qualified professional to ensure all safety standards and local building codes are met. The elbow is inserted into the existing pipe run at the desired junction. Ensure that all connections are properly sealed using appropriate heat-resistant sealants or mechanical fasteners to prevent gas leaks. Verify that the direction of the elbow aligns with the intended exhaust path before finalizing the connection.

What to consider before purchase

• Verify the diameter of your existing chimney piping system
• Ensure the 45-degree angle meets your specific installation requirements
• Check local regulations regarding flue gas ventilation materials
• Confirm compatibility with your heating appliance type

Usage recommendations

Regularly inspect the chimney elbow during annual maintenance checks to ensure there are no signs of corrosion or structural degradation. Keep the interior of the pipe free from soot buildup to maintain optimal airflow and safety.
