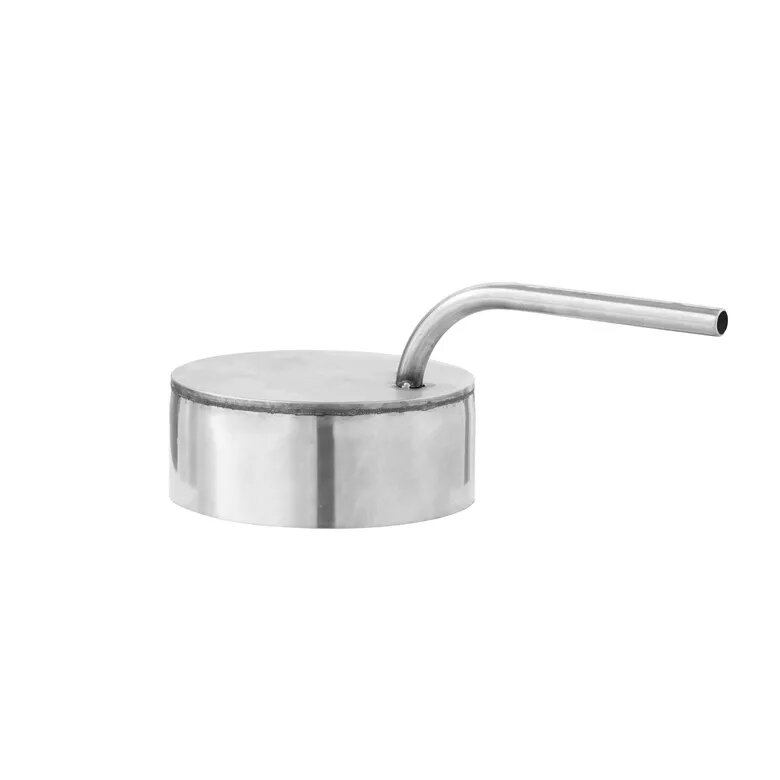

Chimney Condensate Collector WADEX 147 (147 mm diameter)

WADEX Chimney Condensate Collector 147 is a condensate collection unit manufactured for chimneys with a 147 mm internal diameter. It is designed to receive acidic condensate from flue gases and channel it safely to a drain or neutralization system. The device provides an enclosed path for condensate, helping to prevent corrosion of chimney liners and damage to building elements adjacent to the flue. The unit is compatible with gas, oil and pellet boiler flue systems where controlled condensate removal is needed.

Advantages

The condensate collector offers a compact design that fits a 147 mm chimney conduit and provides reliable condensate capture without altering flue draft. Constructed from materials suitable for wet flue conditions, the unit reduces the risk of acidic condensate contacting the chimney structure. Installation enables safer condensate routing to existing drains or to a neutralizer, simplifying maintenance and extending the service life of the flue system.

Suitable for

• Chimneys and flue pipes with 147 mm internal diameter
• Gas, oil and pellet boiler installations producing acidic condensate
• Systems requiring controlled condensate discharge to drains or neutralizers
• Retrofit projects where existing flues need condensate management

Key specifications

• Internal diameter compatibility: 147 mm
• Application: condensate collection from flue gases
• Intended fuels: gas, oil, pellet
• Function: channeling acidic condensate to drain or neutralization
• Mounting: in-line installation within the chimney or flue section

How to use

Install the condensate collector in the chimney run with its inlet aligned to the flue gas path so that condensate drains into the collector chamber. Connect the collector outlet to a suitable drain or neutralizer using corrosion-resistant piping and ensure slope and sealing to prevent leaks. Verify that adjacent flue components are correctly sealed and secured, and perform a smoke or pressure test if required by local installation rules. Follow local codes for condensate disposal and neutralization when routing the outlet.

Usage recommendations

Regularly inspect the collector and outlet connections for blockages, corrosion or leaks. Periodic cleaning and verification of the drain line and neutralizer (if used) will ensure continued safe removal of acidic condensate and maintain flue integrity.
