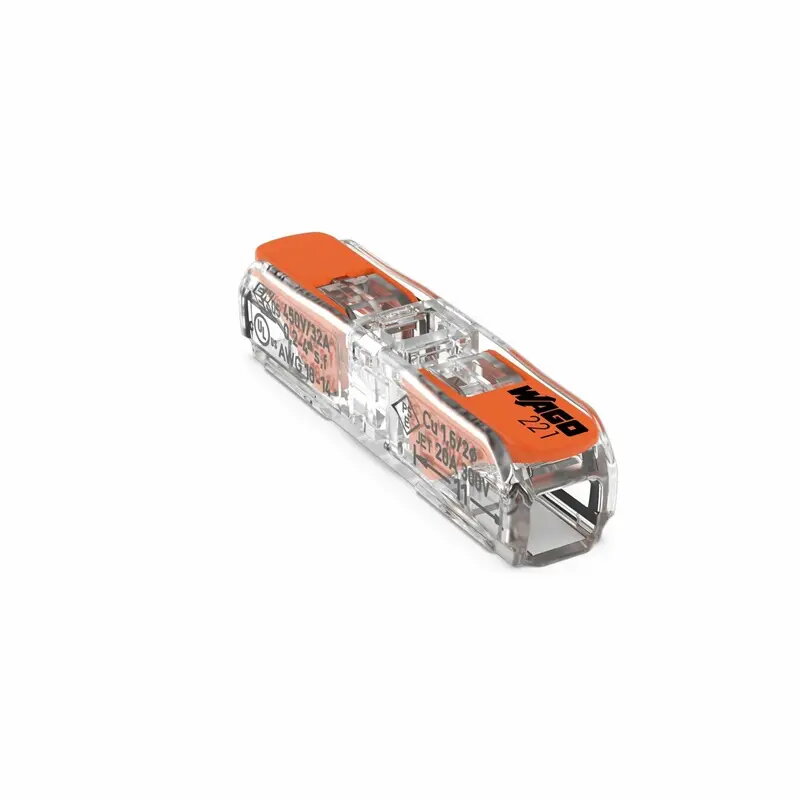

The Wago 221-2411/20 Compact Splicing Connector is a high-quality electrical component designed to facilitate efficient and secure wiring connections. This set includes 20 individual connectors, each engineered to accommodate solid, stranded, and fine-stranded conductors with cross-sections ranging from 0.2 to 4 mm2. Featuring a user-friendly lever-operated mechanism, these connectors allow for quick, tool-free installation, making them an essential tool for both professional electricians and DIY enthusiasts working on electrical distribution systems.
Advantages
The primary advantage of these Wago connectors lies in their versatility and ease of use. The lever-operated design eliminates the need for specialized tools, significantly reducing installation time while ensuring a consistent and reliable connection. The transparent housing allows for visual inspection of the conductor position, ensuring that the wire is correctly inserted and secured. Furthermore, the compact size makes them ideal for use in confined spaces such as junction boxes, where space is often limited. These connectors are reusable, allowing for adjustments or modifications to electrical circuits without the need to replace the hardware.
Suitable for
- Electrical installations in junction boxes
- Connecting solid, stranded, and fine-stranded wires
- Lighting installations and home automation wiring
- General electrical distribution tasks
When it may not be suitable
These connectors are designed for low-voltage electrical applications and are not suitable for high-voltage industrial power grids or outdoor environments exposed to direct moisture or extreme weather conditions without appropriate protective enclosures. They should not be used with conductors exceeding the specified cross-section range of 0.2 to 4 mm2.
Key specifications
- Rated voltage: 450 V
- Rated current: 32 A
- Conductor range: 0.2 to 4 mm2
- Number of contacts: 1
- Material: High-quality plastic
- Color: Transparent and orange
How to use
To use the Wago 221-2411/20 connector, first strip the insulation from the conductor to the recommended length. Lift the orange lever on the connector to the open position, insert the stripped wire fully into the terminal, and then push the lever back down to lock the conductor in place. The secure clamping mechanism ensures a permanent and vibration-resistant connection. To remove or adjust the wire, simply lift the lever again to release the conductor.
What to consider before purchase
- Ensure the conductor cross-section is within the 0.2 to 4 mm2 range
- Verify that the total current and voltage of your circuit do not exceed the connector ratings
- Check that the installation environment is dry and protected
Usage recommendations
Always ensure the power supply is disconnected before performing any electrical work to prevent accidental contact or short circuits.
