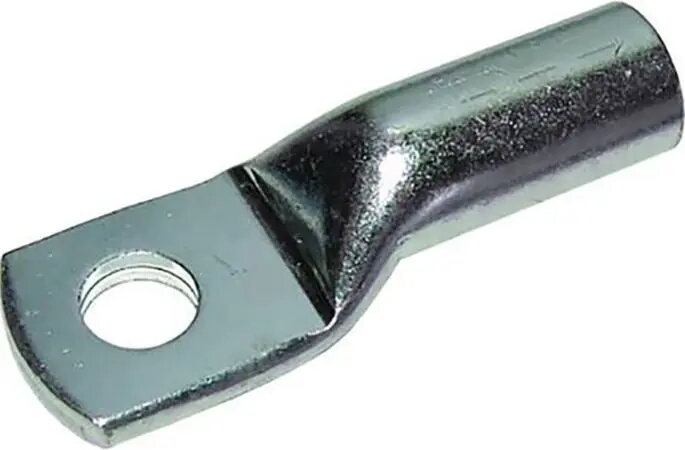

Weidmüller Non-insulated Ring Cable Lug 50mm2 M10 KP-M10/-50

The Weidmüller KP-M10/-50 is a professional-grade non-insulated ring cable lug engineered for high-performance electrical connectivity. Designed to accommodate a 50mm2 conductor cross-section, this terminal features a robust M10 stud hole, making it an essential component for secure and reliable power distribution in industrial environments. Its construction focuses on maintaining optimal electrical conductivity and mechanical integrity under varying operational conditions.

Advantages

This ring cable lug offers exceptional durability due to its high-quality material composition, which ensures a stable and long-lasting connection even in demanding electrical systems. The non-insulated design allows for versatile installation options, particularly in environments where specific insulation materials are required or where space constraints necessitate a compact connection profile. Its precise engineering guarantees a firm fit on M10 studs, minimizing resistance and preventing potential connection failures.

Suitable for

• Industrial power distribution panels
• Heavy-duty electrical machinery wiring
• Grounding connections in electrical cabinets
• Infrastructure and energy sector installations

When it may not be suitable

This product is not intended for use in applications requiring pre-insulated terminals or where the environment demands protection against accidental contact without additional heat-shrink tubing or insulation measures. It is also not suitable for conductors with cross-sections significantly smaller or larger than 50mm2.

Key specifications

• Conductor cross-section: 50mm2
• Stud hole diameter: M10
• Terminal type: Ring cable lug
• Insulation: Non-insulated
• Material: High-conductivity metal

How to use

To install the Weidmüller KP-M10/-50, first strip the insulation from the end of the 50mm2 cable to the appropriate length. Insert the conductor into the barrel of the lug and use a professional-grade crimping tool specifically calibrated for 50mm2 terminals to ensure a secure mechanical and electrical bond. Once crimped, place the ring terminal over the M10 stud and tighten the nut firmly to ensure a stable connection.

What to consider before purchase

• Ensure the conductor cross-section matches the 50mm2 specification exactly.
• Verify that the M10 stud size is compatible with your existing equipment.
• Confirm that you have the correct crimping tool for non-insulated terminals.
• Assess if additional insulation, such as heat-shrink tubing, is required for your specific safety standards.

Usage recommendations

Always use a calibrated crimping tool to achieve the required compression force, as improper crimping can lead to increased resistance and overheating of the connection point.
