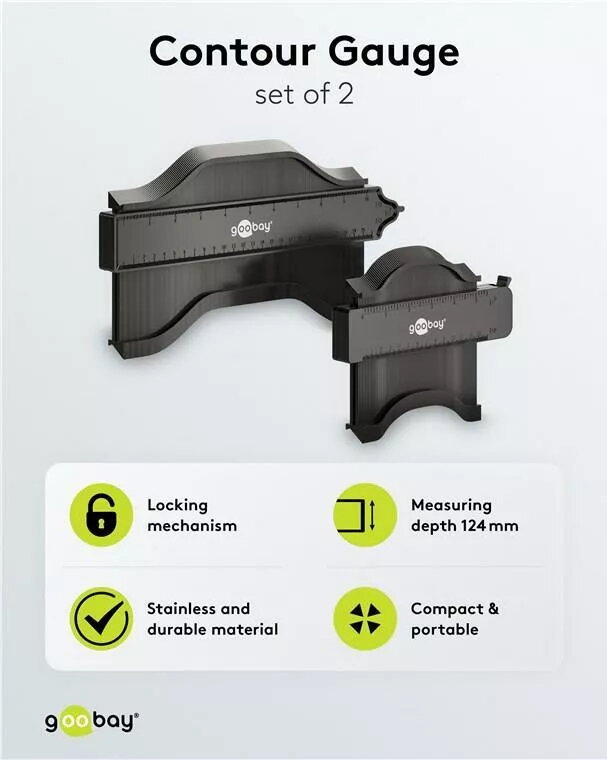

Contour Gauge WENTRONIC 2-piece set Model 61668 — profile duplicator for shaping and copying contours

The Contour Gauge WENTRONIC 2-piece set Model 61668 is a manual profile duplicator for copying and transferring complex shapes and contours. The set contains two contour gauges that lock in place to preserve the traced profile, enabling accurate transfer of irregular edges and profiles for cutting, fitting and installation tasks. Lightweight and designed for manual tracing, this tool supports woodworking, tiling, flooring and general DIY work where matching or reproducing a shape is required.

Advantages

The two-piece set offers versatility by providing different gauge sizes that accommodate varied profile depths and working areas. Its straightforward mechanical action holds a traced shape securely to reduce measurement errors and speeds up the transfer process compared with freehand tracing. The gauges are portable and easy to align against surfaces, which improves convenience on job sites and home projects.

Suitable for

• Woodworking: copying moldings, trims and irregular edges
• Tiling: transferring curves and uneven wall profiles to tiles
• Flooring: fitting around pipes, door frames and skirting boards
• General DIY: adapting materials to match existing contours

Key specifications

• Set contents: two contour gauges designed for profile duplication
• Operation type: manual mechanical locking of traced profile
• Primary application: tracing and transferring irregular shapes and contours
• Suitable materials: wood, tile, laminate, plastic and similar construction materials
• Portability: lightweight and handheld for on-site use

How to use

Place the contour gauge teeth firmly against the surface to be copied, allowing the pins or teeth to conform to the contour. Once the profile is reproduced, lock the gauge if a locking mechanism is present to preserve the shape. Transfer the captured profile to the workpiece by aligning the gauge and marking along the outer edge for cutting or trimming. Use appropriate marking tools and follow material-specific cutting practices to complete the fit.

Usage recommendations

For best results, clean debris from the surface before tracing, ensure the gauge teeth fully seat against the contour, and inspect the captured profile before transferring. Use clamps or steady hands when marking and cutting to maintain accuracy, and select the gauge size from the set that best matches the scale of the workpiece.
