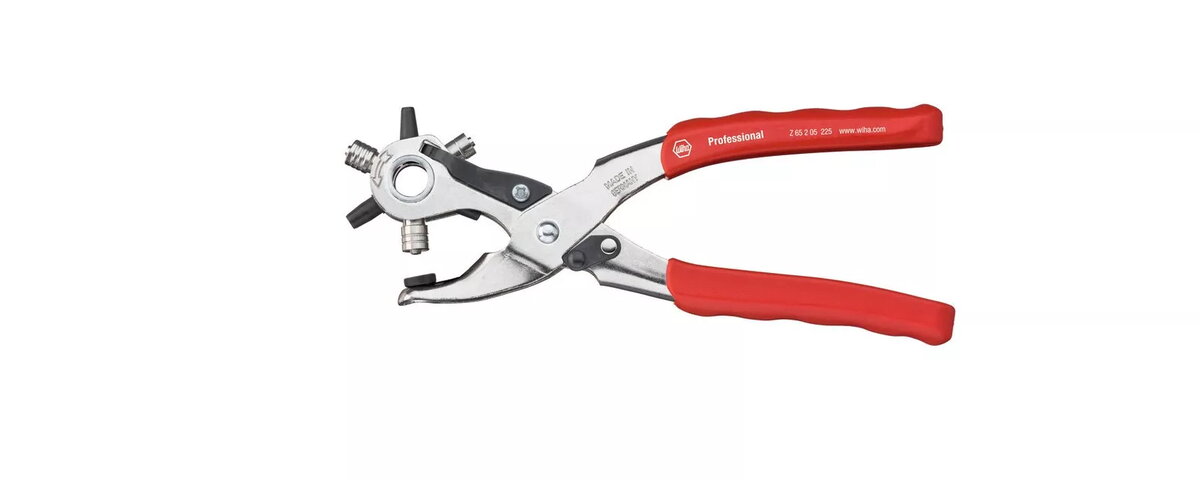

Revolving punch pliers Wiha Z 65 2 05

The Wiha Z 65 2 05 revolving punch pliers are a handheld tool for creating and setting metal or reinforced loops and for perforating materials. The pliers feature a high-resistance special steel body with nickel plating and an ergonomic plastic handle. A rotatable magazine and a locking lever allow quick selection and secure use of different punch sizes.

Advantages

Constructed from high-resistance special steel with nickel plating for corrosion resistance and durability. The rotatable magazine contains hole sizes 4.0, 4.5 and 5.0 mm and works with matching loop punches for finished loop diameters of 4.5, 5.0 and 5.5 mm. The locking lever holds the selected tool position during work. Ergonomic plastic handle improves grip and control during precision tasks.

Suitable for

• Creating perforations in materials for installing metal loops or eyelets
• Forming and pressing metal loops (eyelets) in three sizes
• Craft, upholstery, leatherwork and light repair jobs requiring neat holes

Key specifications

• Brand: wiha
• Model: Z 65 2 05 (Wiha revolving punch pliers)
• Material: high-resistance special steel, nickel-plated
• Hole sizes in magazine: 4.0 mm, 4.5 mm, 5.0 mm
• Loop (finished eyelet) sizes supported: 4.5 mm, 5.0 mm, 5.5 mm
• Handle: ergonomic plastic
• Length: 225 mm
• Weight: 316 g
• MPN: 29550
• EAN: 4010995295509

How to use

Select the required hole size by rotating the magazine until the corresponding perforating tube and loop punch are aligned. Lock the magazine in place using the locking lever. Position the workpiece between the perforating tube and the punch, then squeeze the handles evenly to perforate the material and press the loop (eyelet) in a single operation. Release the handles and check the formed loop for correct seating. Change magazine position and repeat for other sizes as needed.

Usage recommendations

Use on appropriately thick and supported materials; avoid applying the tool to overly hard or brittle materials that could damage the punches. Keep the punches and perforating tubes clean and occasionally lubricated to ensure smooth rotation and long life. Replace worn punches to maintain clean, accurate holes.
