Laser Engraver xTool S1 40W All-in-One Kit — xTool S1 40W

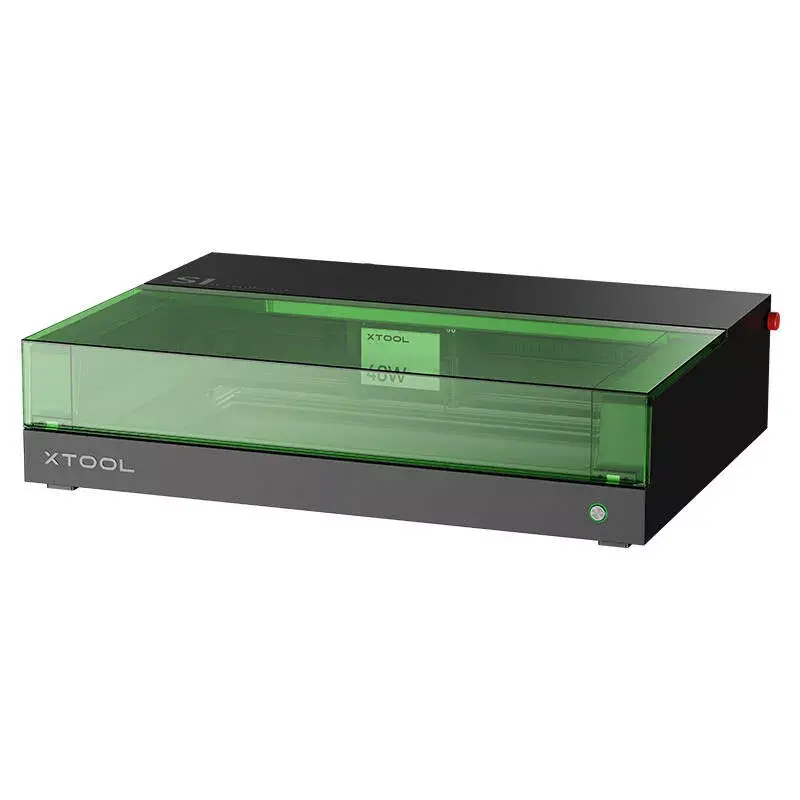

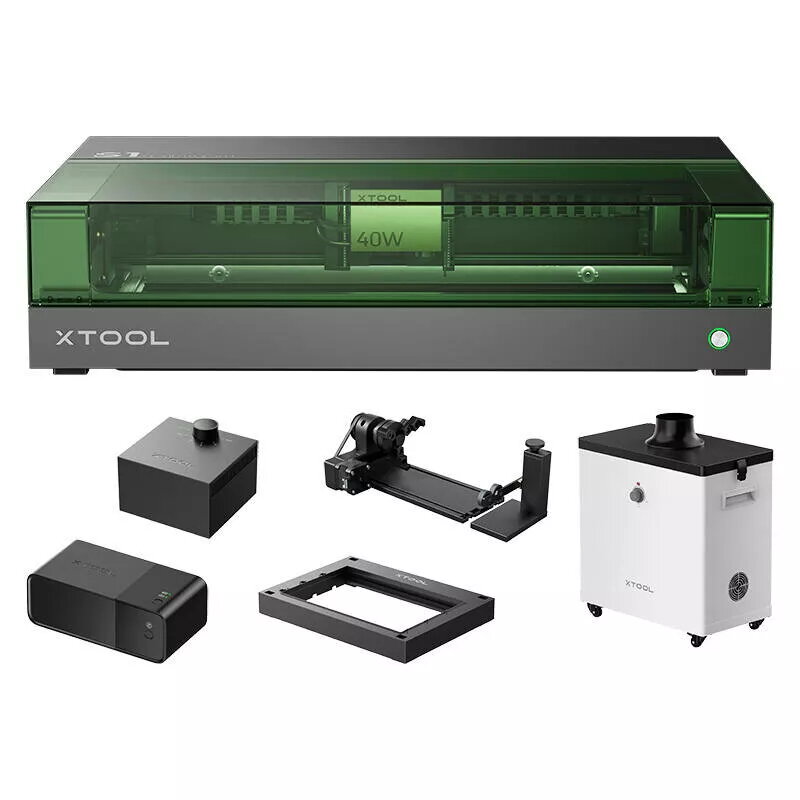

xTool S1 40W All-in-One Kit is a compact, ready-to-use laser engraving system designed for precision cutting, marking and engraving. The kit centers on the xTool S1 40W machine with a 498 x 319 mm working area and a 40W laser module that supports a wide range of materials. Included accessories—such as Smart Air Assist, RA2 Pro rotary attachment, Smoke Purifier, Riser Base and an automatic fire extinguishing system—extend capabilities for prototyping, customization and small-batch production while addressing safety and ventilation needs.

Advantages

The xTool S1 40W combines a small footprint with a powerful 40W laser, a fine 0.08 x 0.10 mm spot size and a top working speed of 600 mm/s, enabling accurate vector cutting and high-detail engraving. The All-in-One Kit bundles multiple accessories to provide immediate functionality: automated air assist for cleaner cuts, a multi-mode rotary unit for cylindrical and spherical work, a riser base for thicker materials, and a smoke purifier plus an automatic fire extinguishing system for safer operation. USB and Wi‑Fi connectivity and compatibility with XCS and LightBurn software support flexible workflows across Windows, macOS, Android and iOS.

Suitable for

• Hobbyist engraving and personalized gifts
• Prototype and small-batch manufacturing
• Signage, model making and decorative cutting
• Jewellery and cylindrical item engraving using the RA2 Pro rotary
• Workshops and small businesses requiring integrated safety and ventilation

Key specifications

• Laser power: 40W
• Spot size: 0.08 x 0.10 mm
• Maximum working speed: 600 mm/s
• Primary working area: 498 x 319 mm (expandable with additional feeder to 470 x 3000 mm)
• Supported systems: Android, iOS, Windows 10 or later, macOS
• Supported file formats: SVG, DXF, JPG, JPEG, PNG, BMP, TIF
• Connection: USB and Wi‑Fi
• Machine weight and dimensions: approx. 20 kg; 765 x 561 x 183 mm (without base)
• Smart Air Assist airflow: ≥30 L/min; power DC 24V
• Smoke Purifier airflow/MAF: 235 m3/h; power 150W; noise up to 55 dB
• RA2 Pro rotary engraving range: roll 3–198 mm; handle 0–100 mm; sphere 25–100 mm; ring 11–70 mm

How to use

Place the xTool S1 on a stable surface and install the included honeycomb panel or riser base depending on material thickness. Connect power and either USB or Wi‑Fi, then launch XCS or LightBurn and import a supported design file (SVG, DXF, JPG, PNG, etc.). Select appropriate laser power and speed settings for the material, enable Smart Air Assist to reduce smoke and improve edge quality, and attach the RA2 Pro when engraving cylindrical items. Use the smoke purifier during operation for ventilation and ensure the automatic fire extinguishing system is active for added safety. Perform a test cut or engraving on scrap material before running final jobs.

Usage recommendations

Use material-specific parameter guides when available, start with lower power and slower speed on unknown materials, and always run test samples. Keep the Smart Air Assist and Smoke Purifier active for materials that produce fumes. Maintain clear line of sight to the work area, check lens and mirror cleanliness regularly, and follow local safety regulations regarding laser operation and ventilation.
