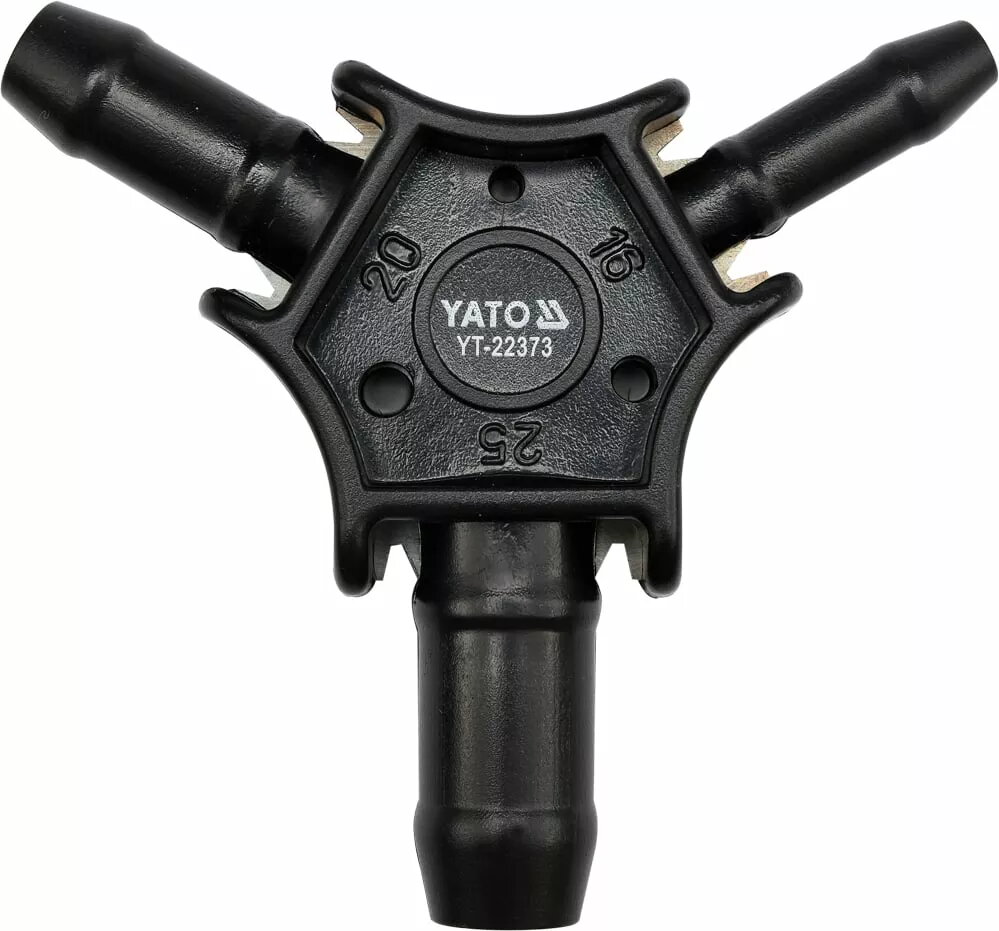

Pipe Calibrator YATO YT-22373 for PEX-AL-PEX pipes 16×20×25 mm

YATO YT-22373 pipe calibrator is made for PEX-AL-PEX multilayer pipes with nominal diameters 16 mm, 20 mm and 25 mm. The tool ensures uniform internal and external dimensions after cutting, helping to remove inner burrs, straighten pipe ends and restore roundness. Designed for use in plumbing and heating installations, this calibrator supports faster and more reliable jointing when preparing pipes for crimp, press or expansion fittings.

Advantages

The calibrator provides precise sizing for three common pipe diameters in a single compact tool, reducing the need for multiple instruments. Its construction ensures repeatable results that improve sealing and reduce the risk of leaks. The tool simplifies preparation by deburring and aligning the pipe end, which shortens assembly time and facilitates consistent connections with crimp rings, press sleeves or expansion fittings. The durable design is suitable for on-site use and routine installation tasks.

Suitable for

• Preparation of PEX-AL-PEX pipes before crimping connections
• Preparing pipes for press-fitting systems in heating and plumbing
• Pipe end deburring and straightening on installation sites
• Plumbing and radiator connections where correct pipe geometry is required

Key specifications

• Compatible pipe types: PEX-AL-PEX multilayer pipes
• Supported nominal diameters: 16 mm, 20 mm, 25 mm
• Function: internal and external calibration, deburring and end alignment
• Construction: handheld manual tool designed for site use
• Intended use: preparation for crimp, press and expansion fittings

How to use

Cut the PEX-AL-PEX pipe squarely, then insert the pipe end into the appropriate diameter opening on the calibrator. Rotate or work the tool according to its manual action to remove burrs, restore roundness and ensure the internal diameter and outer geometry meet fitting requirements. After calibration, verify the pipe end fits smoothly with the selected fitting (crimp ring, press sleeve or expansion fitting) and proceed with the specified joining method following the fitting manufacturer's instructions.

Usage recommendations

Use the calibrator after every cut and before each connection to ensure consistent results. Keep the tool clean from debris and inspect it periodically for wear. Use appropriate personal protective equipment when cutting and preparing pipes, and follow the connection system manufacturer's guidelines for insertion depth and crimping or pressing parameters.
