Hydraulic Shop Press YATO YT-55585 30T capacity, 0–1030mm stroke, 530mm throat

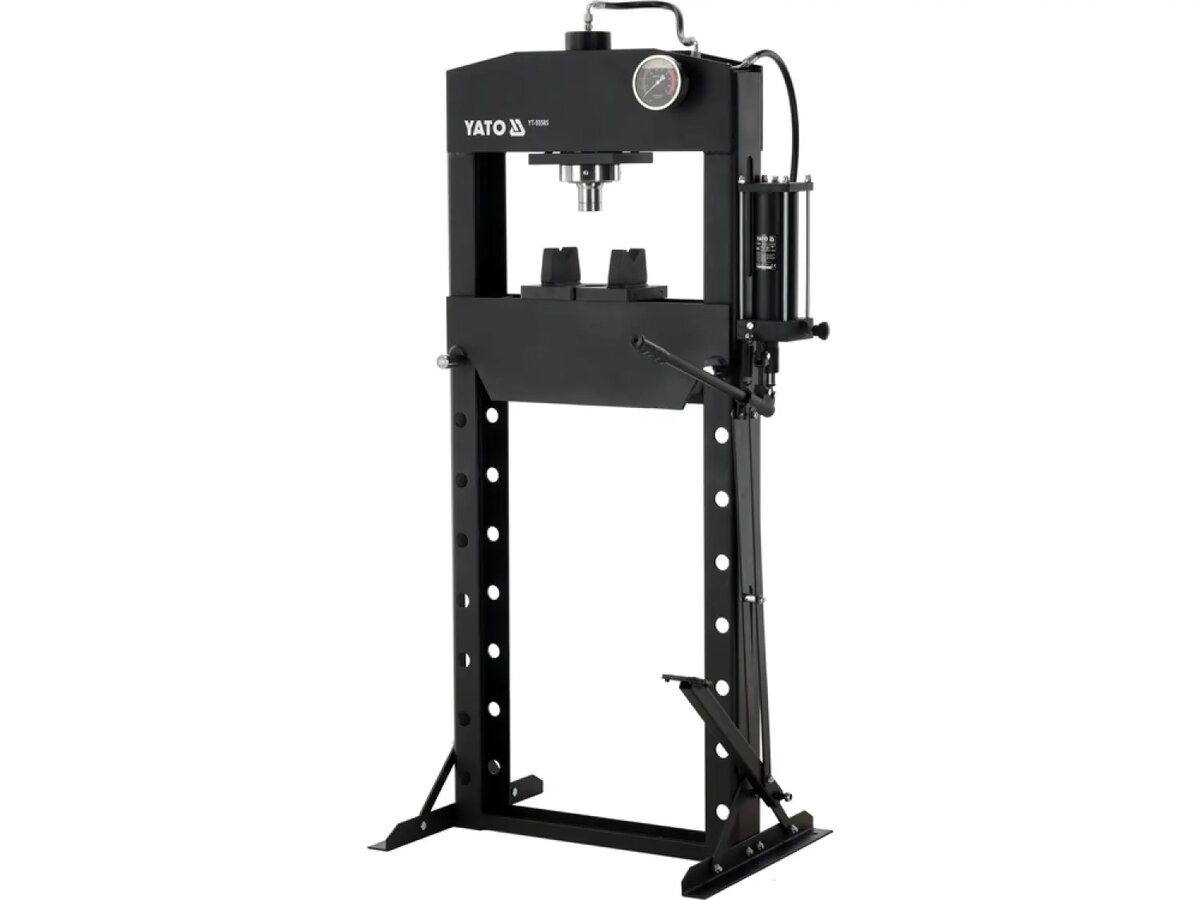

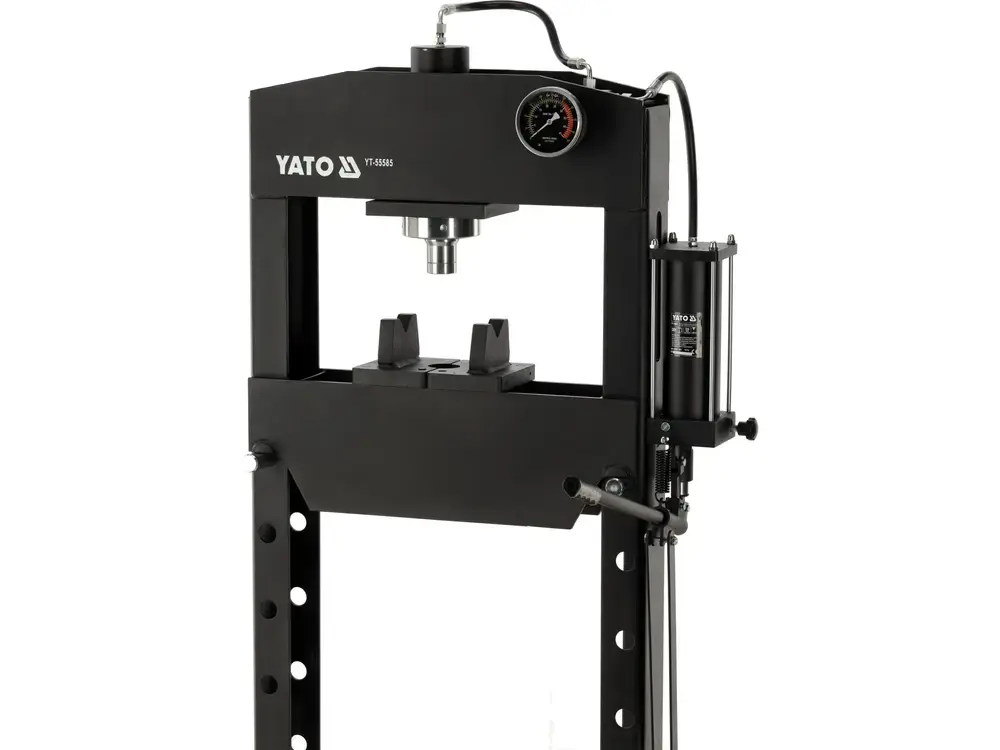

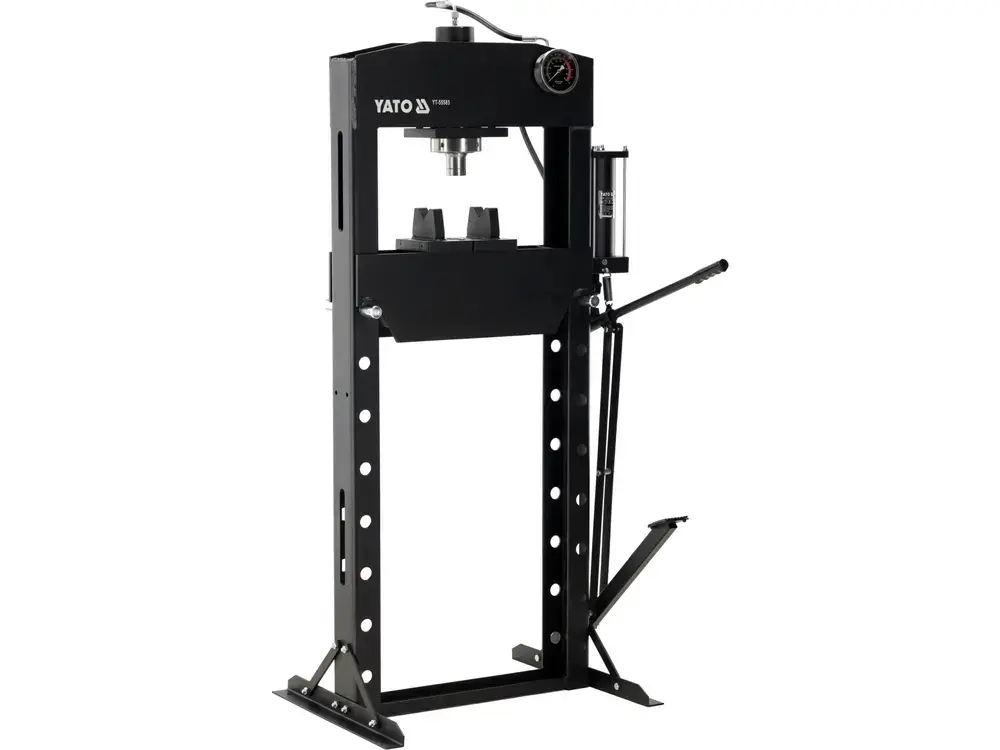

The YATO YT-55585 hydraulic shop press delivers up to 30 tonnes of pressing force for bending, pressing, straightening and assembly tasks in professional workshops and home garages. It has an adjustable working range from 0 to 1030 mm, a 530 mm throat for positioning workpieces, a 160 mm piston stroke and a robust lacquered steel frame designed for repeated heavy use.

Advantages

The press provides a high maximum pressure of 30 t combined with foot-pedal control for hands-free operation and improved safety. Fully hydraulic operation ensures steady, controllable force without the need for pneumatic systems. The multi-position adjustable work bed and sturdy steel construction offer flexibility and durability for a variety of metalworking and automotive tasks.

Suitable for

• Bending and straightening metal parts
• Pressing bearings, bushings and sleeves
• Assembling and disassembling mechanical components
• Automotive repair and maintenance workshops
• General workshop and tool room use

When it may not be suitable

This press is not intended for use beyond its rated 30 t capacity; exceeding the limit can be unsafe. It is a hydraulic, manually controlled shop press and may not be suitable where fully automated or pneumatic-operated presses are required.

Key specifications

• Maximum pressure force: 30 t
• Working range (stroke): 0–1030 mm
• Working width (throat): 530 mm
• Piston stroke: 160 mm
• Overall dimensions: 780 × 595 × 1705 mm
• Construction material: steel sheet with lacquered finish
• Weight: 122 kg
• Operation: fully hydraulic with foot pedal control

How to use

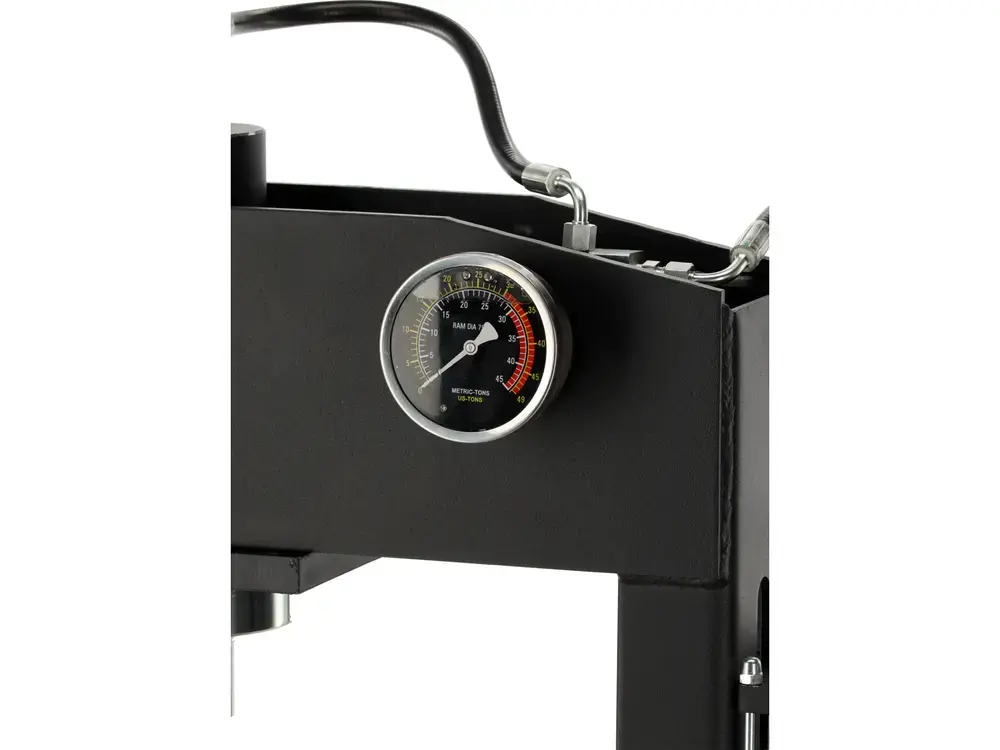

Place the press on a firm, level and stable surface. Position the workpiece on the adjustable work bed and set the bed to the required height. Use the foot pedal to operate the hydraulic cylinder and control the pressing action; monitor the pressure and alignment of the part while working. Follow the user manual for proper setup, adjustment and maintenance procedures.

What to consider before purchase

• Required maximum pressing capacity (30 t).
• Available workshop space to accommodate dimensions 780 × 595 × 1705 mm.
• Need for a 530 mm throat and 0–1030 mm working range for your typical workpieces.
• Floor strength and levelness to support a 122 kg unit and safe operation.

Usage recommendations

Read and follow the instruction manual, never exceed the rated 30 t capacity, use the foot pedal for hands-free control, and secure workpieces properly on the adjustable bed to ensure safe and accurate pressing operations.
