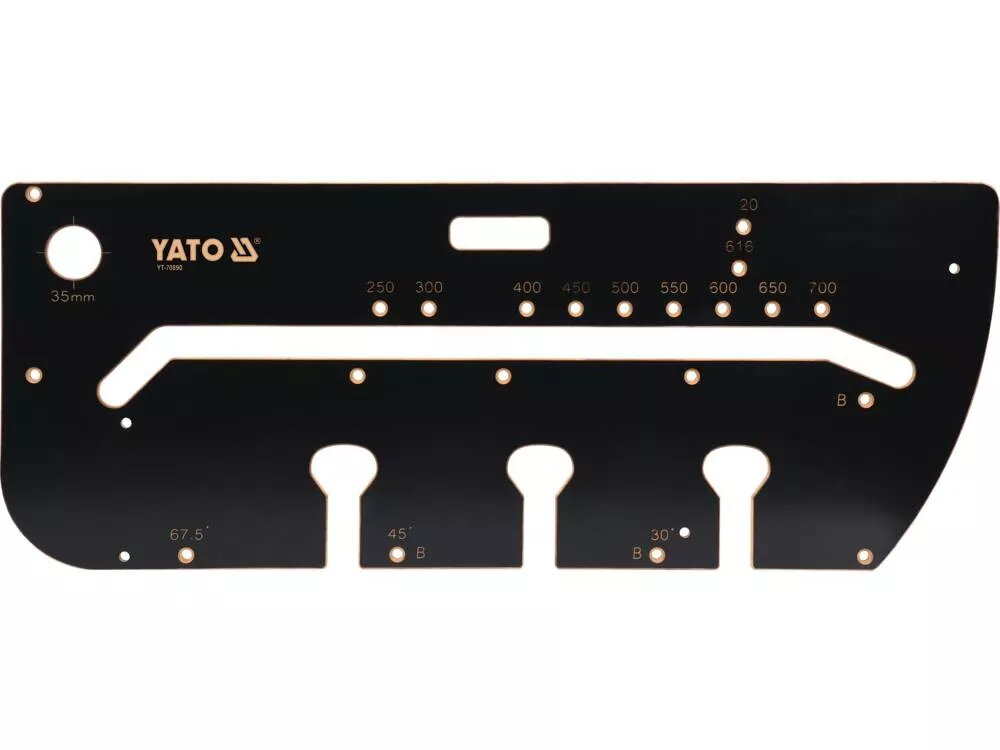

drafting template Yato YT-70890 Black

The Yato YT-70890 drafting template in black is a precision tool designed for detailed technical drawing and layout work. Made to provide a stable drafting surface, the template measures 390 mm in width, 1000 mm in depth and has a thickness of 1.2 cm, offering robustness and reduced flex during use. Its neutral black finish helps reduce glare and contrast with drawing media, allowing accurate tracing and consistent line quality for architects, designers and technical drafters.

Advantages

The drafting template combines a substantial 1.2 cm thickness with an extended 1000 mm depth to maintain flatness and resist warping under typical drafting conditions. The 390 mm working width gives a comfortable drawing area while remaining compact enough for transport and storage. The black surface improves visibility of both dark and light drawing instruments and supports precise edge-guided strokes and repeated use without rapid wear.

Suitable for

• Architectural floor plans and elevations
• Technical and engineering drawings
• Graphic design layouts and mock-ups
• Drafting classes and studio work
• On-site measurements and sketching

Key specifications

• Color: black
• Overall width: 390 mm
• Overall depth: 1000 mm
• Material thickness: 1.2 cm
• Rigid construction for minimal flex

How to use

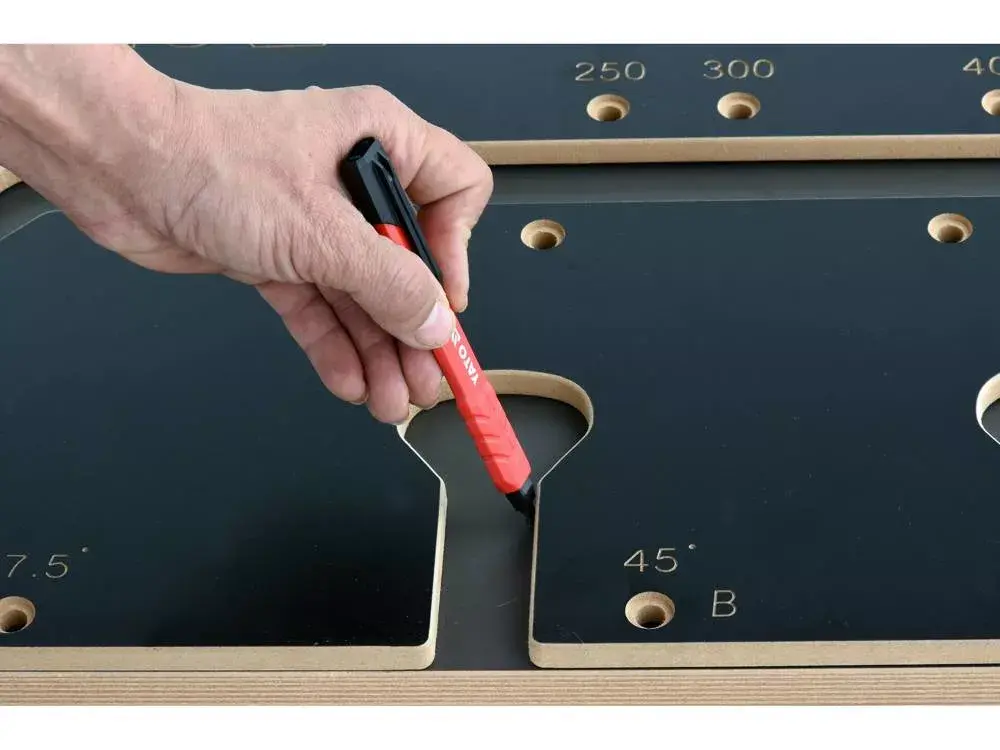

Place the drafting template on a flat, stable drawing surface and align the edges with your workpiece or drawing grid. Use pencils, technical pens, or markers against the template edges and cutouts to produce consistent lines and shapes. Apply gentle, even pressure when tracing to avoid slipping; for repetitive tasks, consider securing the template with low-tack tape or drafting clips to maintain position. Clean the surface after use with a soft cloth to remove graphite or ink residue without scratching.

Usage recommendations

For best results, store the template flat and avoid prolonged exposure to direct sunlight or extreme heat to prevent deformation. Pair the template with fine mechanical pencils or calibrated technical pens for optimal line accuracy. When transporting, protect the edges with a rigid sleeve or folder to preserve straightness.
