Caliper analogue YATO YT-72003 — dial-type measuring caliper (analogue)

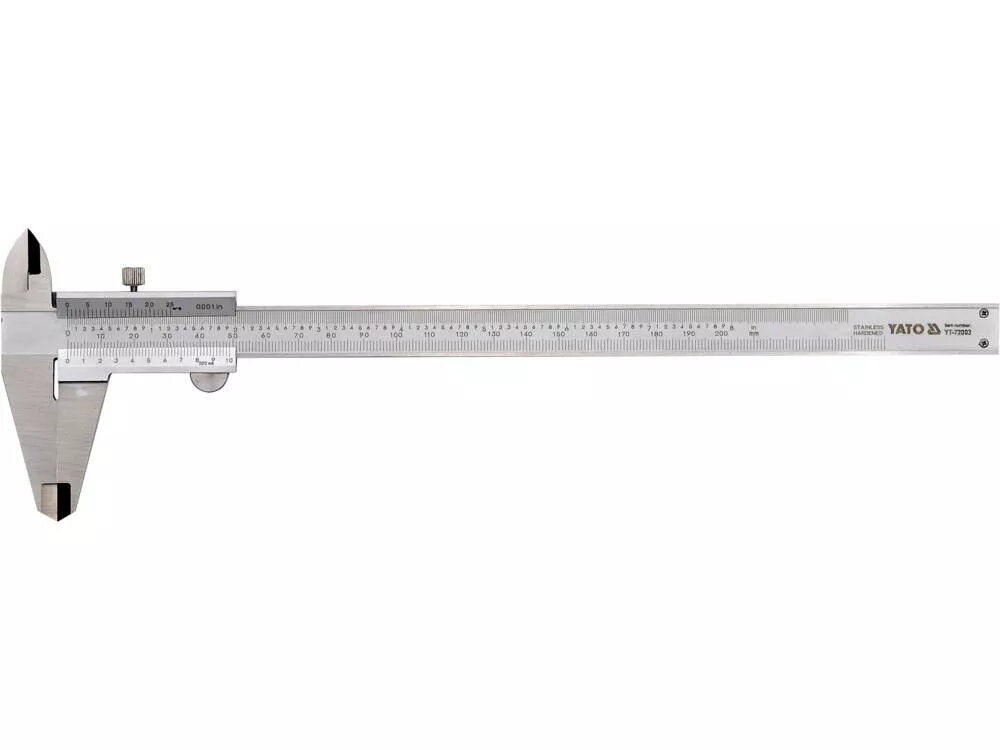

Analogue caliper YATO YT-72003 — dial-type measuring caliper (analogue) is a mechanical handheld instrument designed for direct visual reading of linear dimensions. The caliper measures external dimensions, internal diameters and depths using a dial indicator and vernier-like slider, without requiring batteries or electronic components. Constructed for routine workshop, maintenance and do‑it‑yourself tasks, this dial-type caliper offers straightforward operation and reliable readings for basic measurement needs.

Advantages

This dial-type caliper provides immediate, easy-to-read measurements via a clear analogue dial, eliminating dependency on electronics. Its mechanical design ensures operation in environments where power-free tools are preferred and reduces risk of electronic failure. The compact handheld format allows use in tight spaces, and the simple construction supports quick measuring of external, internal and depth dimensions with consistent repeatability when used correctly.

Suitable for

• General workshop measurement of shafts, housings and parts
• Maintenance and repair tasks requiring quick dimensional checks
• DIY projects and home workshop use for woodworking and metalworking
• Quality control checks where basic linear accuracy is sufficient

Key specifications

• Measuring functions: external, internal and depth measurements
• Display type: analogue dial with mechanical slider
• Construction: handheld caliper body with dial indicator
• Operation: mechanical, no batteries required
• Typical accuracy class: suitable for basic workshop-level linear measurement
• Material and finish: metal caliper components for durability (typical of dial calipers)

How to use

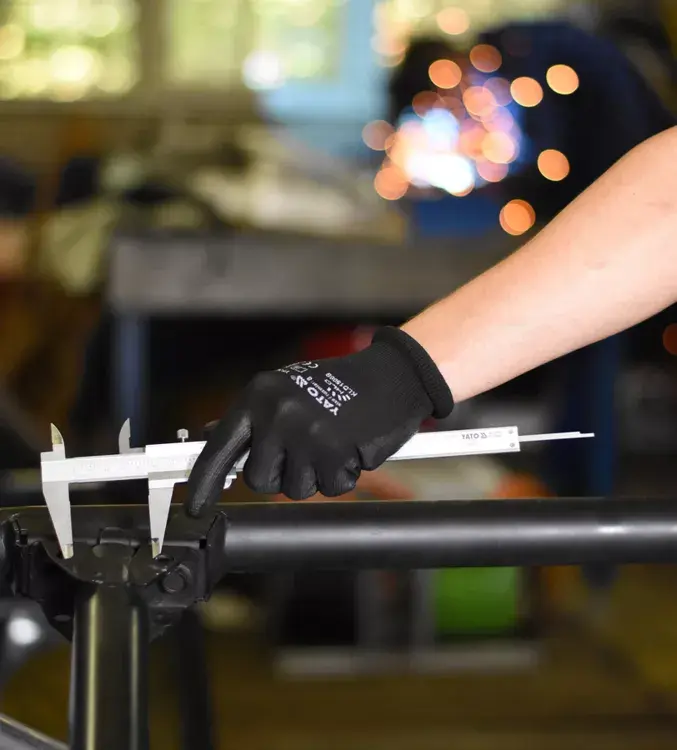

To measure external dimensions, position the object between the jaws and slide the movable jaw until both jaws contact the workpiece. Read the value directly from the dial and slider scale. For internal measurements, insert the smaller jaws into the opening, expand them until they contact the internal surface, and read the dial. For depth measurements, extend the depth probe into the hole or recess and read the resulting position on the dial. Before taking critical readings, ensure the jaws are clean and the caliper is zeroed with jaws closed or adjusted according to the dial’s zeroing mechanism.

Usage recommendations

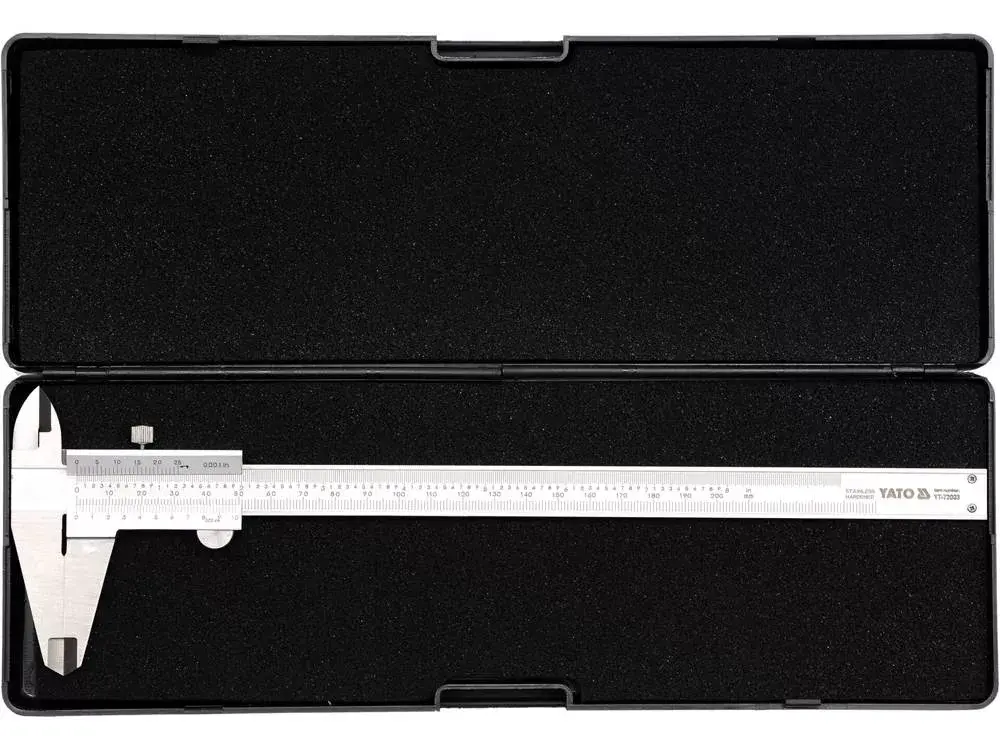

Handle the caliper carefully to avoid shocks that may affect dial calibration; keep contact surfaces clean and free of debris. Store the tool in a protective sleeve or case to maintain accuracy. Use gentle, consistent pressure when making measurements and verify zero position periodically to ensure reliable results.
