ABB PSH1/12 Busbar, 1-Phase, 12 Modules

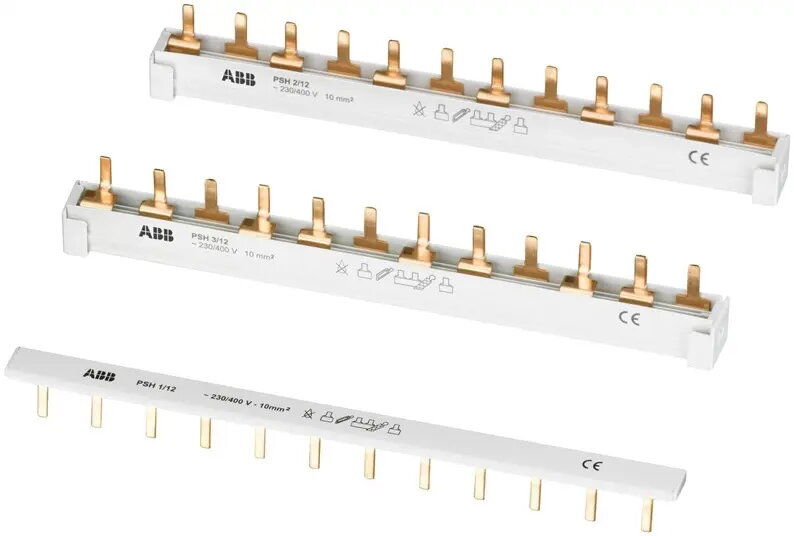

The ABB PSH1/12 busbar is a professional-grade electrical distribution component specifically engineered for 1-phase electrical systems. Designed to accommodate up to 12 modules, this busbar facilitates efficient power distribution within modular electrical panels, ensuring a clean and organized setup for your circuit protection devices. Its robust construction provides a reliable connection for DIN-rail mounted equipment, contributing to the overall stability and safety of your electrical installation.

Advantages

This busbar offers a streamlined approach to wiring, significantly reducing the time and effort required for complex installations. By providing a unified power path, it minimizes the need for individual jumper wires, which helps prevent connection errors and improves the overall reliability of the electrical circuit. The high-quality materials used in its manufacturing ensure excellent conductivity and long-term durability, making it a dependable choice for both residential and commercial electrical projects.

Suitable for

• Distribution boards in residential buildings
• Commercial electrical panels
• Connecting multiple miniature circuit breakers
• Modular DIN-rail mounted device configurations

When it may not be suitable

This busbar is designed exclusively for 1-phase systems and cannot be used in 3-phase electrical configurations. It is also limited to a capacity of 12 modules, meaning it may not be appropriate for larger distribution boards that require a higher number of connections without additional linking components.

Key specifications

• Number of poles: 1-phase
• Capacity: 12 modules
• Length: 212 mm
• Cross-section: 10 mm²

How to use

To install the busbar, first ensure that the main power supply to the distribution board is completely disconnected. Measure the required length and align the busbar pins with the terminals of your circuit breakers or other DIN-rail devices. Insert the busbar securely into the terminal slots and tighten the terminal screws to the manufacturer's recommended torque settings to ensure a firm, low-resistance connection. Verify that all connections are secure and that the busbar is properly seated before restoring power to the system.

What to consider before purchase

• Verify that your electrical system is 1-phase
• Ensure the 12-module capacity meets your current panel requirements
• Check that your circuit breakers are compatible with standard busbar pin connections
• Confirm the physical space in your panel allows for the 212 mm length

Usage recommendations

Always ensure that the total current load does not exceed the rated capacity of the busbar. It is recommended to have the installation performed by a qualified electrician to ensure compliance with local electrical codes and safety standards.
