Miniature circuit breaker ABB SH201-C40

Name: Miniature circuit breaker ABB SH201-C40 2CDS211001R0404
Brand: ABB
SKU: 12398375
Price: 5.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Miniature circuit breaker ABB SH201-C40 Type F 1, 40 A, 12–253 V, 50/60 Hz, IP20

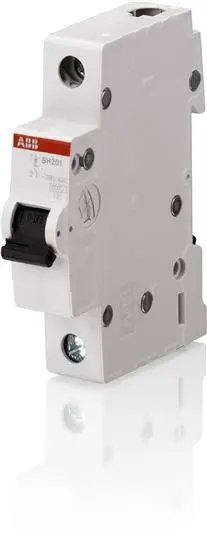

Miniature circuit breaker ABB SH201-C40 Photo 1

Miniature circuit breaker ABB SH201-C40 Photo 2

Miniature circuit breaker ABB SH201-C40 Photo 3

Short description

ABB SH201-C40 is a single-pole miniature circuit breaker, Type F, rated for 40 A with an input voltage range of 12–253 V and frequency 50/60 Hz. Designed for overcurrent protection in residential and light-commercial electrical installations, it features IP20 protection and compact DIN-rail mounting for reliable circuit safeguarding.

Warranty: 2 Years

SKU: 12398375

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ABB SH201-C40 is a single-pole miniature circuit breaker (Type F) rated at 40 A, with an operating voltage range of 12–253 V and frequency 50/60 Hz. It is intended for overcurrent protection in residential and light-commercial electrical installations and is supplied with IP20 finger-protection. The device is compact and suitable for DIN‑rail mounting.

Advantages

The miniature circuit breaker provides reliable overcurrent protection for single-phase circuits and supports mixed voltage systems due to its wide input voltage range. Its Type F characteristic offers enhanced selectivity for motor and inductive loads compared with standard types in some installations. The IP20 protection rating and compact design facilitate installation in standard distribution panels and consumer units.

Suitable for

Residential electrical distribution circuits
Light commercial or small workshop circuits
Protection of single-phase branch circuits for appliances, lighting, and outlets

When it may not be suitable

This single-pole breaker is not intended for three-phase power distribution or for circuits that require residual-current protection (RCD/RCBO) unless combined with appropriate devices. It has IP20 protection, so it is not rated for outdoor installations or environments with significant dust or moisture exposure without additional enclosure protection.

Key specifications

Protection type: Overcurrent (miniature circuit breaker)
Trip characteristic: Type F
Poles: 1 (single-pole)
Rated current: 40 A
Rated voltage range: 12–253 V
Frequency: 50/60 Hz
Ingress protection: IP20
Mounting: DIN-rail compatible, compact housing
Available colours: Black, Red, White

How to use

Install the ABB SH201-C40 on a standard DIN rail in a distribution board by connecting the line and load conductors to the designated terminals according to wiring diagrams and local electrical codes. Ensure the supply is de-energised before installation. Use appropriate torque settings for terminal screws and verify correct operation by testing under load conditions after energising. Coordinate with upstream and downstream protection devices to maintain selectivity.

What to consider before purchase

Confirm the required trip characteristic (Type F) is suitable for the connected loads
Verify the 40 A rating matches the circuit design and conductor sizing
Check that single-pole protection is acceptable for the intended circuit (not for three-phase systems)
Ensure installation location provides appropriate environmental protection given IP20 rating

Usage recommendations

Use this breaker for protecting single-phase branch circuits in homes and small commercial installations, and combine it with appropriate upstream protection or RCDs where required by regulations. Regularly inspect the distribution board and ensure terminals remain tight; replace the device if it trips frequently to investigate possible underlying faults.

Specifications

Weight:: 0.125 kg
Product colour:: Black, Red, White

All features

Type:: Type F
Storage temperature (T-T):: -40 - 70
Circuit breaker type:: Miniature circuit breaker
Energy limiting class:: 3
Total power loss:: 4.8 W
Compliance certificates:: RoHS

Weight & dimensions

Weight:: 0.125 kg
Height:: 85 mm
Width:: 17.5 mm
Depth:: 69 mm

Packaging data

Quantity per pack:: 1 pc(s)

Design

Product colour:: Black, Red, White
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20

Power

Input voltage:: 12 - 253
Rated current:: 40 A
Input frequency:: 50/60
Rated voltage:: 230 V

Features

Operating temperature (T-T):: -25 - 55
Number of poles:: 1
