Distribution Board Flush ABB 36-modules IP30 (model 2CPX077842R9999)

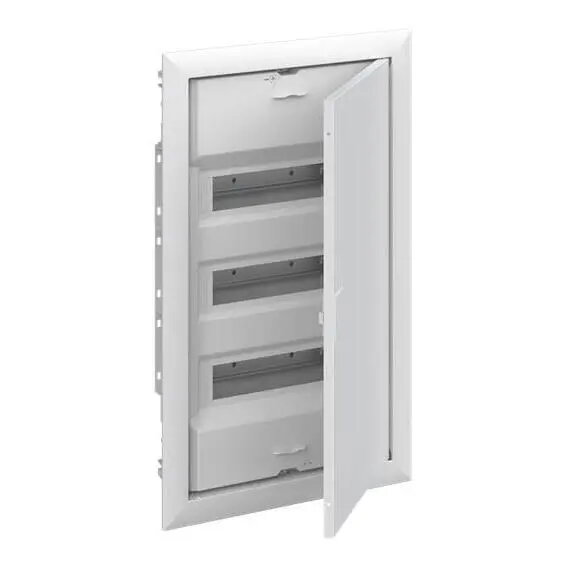

The Distribution Board Flush ABB 36-modules IP30 is a recessed enclosure designed to house up to 36 DIN-rail modular devices such as miniature circuit breakers and residual-current devices. It provides a tidy, concealed installation for electrical distribution in residential and light commercial settings where a standard IP30 protection rating is acceptable. The panel is intended for organizing circuits, protecting installations, and simplifying maintenance by grouping protective devices in one accessible location.

Advantages

This flush-mounted distribution board allows a clean, integrated installation into walls, reducing visible cabling and surface clutter. Its compatibility with a wide range of standard DIN-rail modular devices makes it versatile for configuring circuits and protective schemes. The IP30 rating offers protection against solid objects larger than 2.5 mm and basic access protection, suitable for indoor environments. The cabinet layout supports straightforward wiring and component replacement, which helps reduce installation and maintenance time.

Suitable for

• Residential electrical distribution and circuit protection
• Small offices and light commercial premises requiring recessed panels
• Installations using standard DIN-rail breakers, RCBOs, and auxiliary modules
• Retrofit projects where concealed mounting is preferred

When it may not be suitable

This distribution board is designed for indoor use and provides an IP30 rating, so it is not appropriate for outdoor installations or locations requiring higher ingress protection such as damp, dusty, or exposed environments. It may not be suitable where additional features are needed, such as integrated main switches, meters, or space for a larger number of modules beyond 36.

Key specifications

• Mounting type: Flush/recessed installation
• Capacity: Up to 36 modular DIN-rail devices
• Protection rating: IP30 (splash and dust protection level for indoor use)
• Application: Indoor electrical distribution for residential and light commercial use
• Compatibility: Standard DIN-rail modular breakers and protective devices

How to use

Prepare a recessed opening in the wall that matches the enclosure dimensions and ensure the structure is suitable for supporting the panel. Secure the distribution board in the recess following local electrical codes and the manufacturer's mechanical mounting recommendations. Install DIN-rail modular devices and arrange circuit wiring according to the electrical design, ensuring correct neutral and earth connections and appropriate labeling of circuits. Verify all terminal tightness and insulation clearances before energizing, and test protective devices and circuits after installation.

What to consider before purchase

• Confirm the number of modules required for current and future expansion to ensure the 36-module capacity is sufficient
• Check that an IP30 protection rating meets the environmental conditions of the installation site
• Ensure compatibility of intended DIN-rail devices (breaker widths and mounting types)
• Verify wall depth and recessing feasibility for flush mounting

Usage recommendations

Use this flush distribution board in dry indoor locations and pair it with appropriately rated modular breakers and RCDs. Plan circuit layout and labeling to simplify maintenance and future changes, and follow local electrical regulations for earthing, conductor sizing, and protective device selection.
