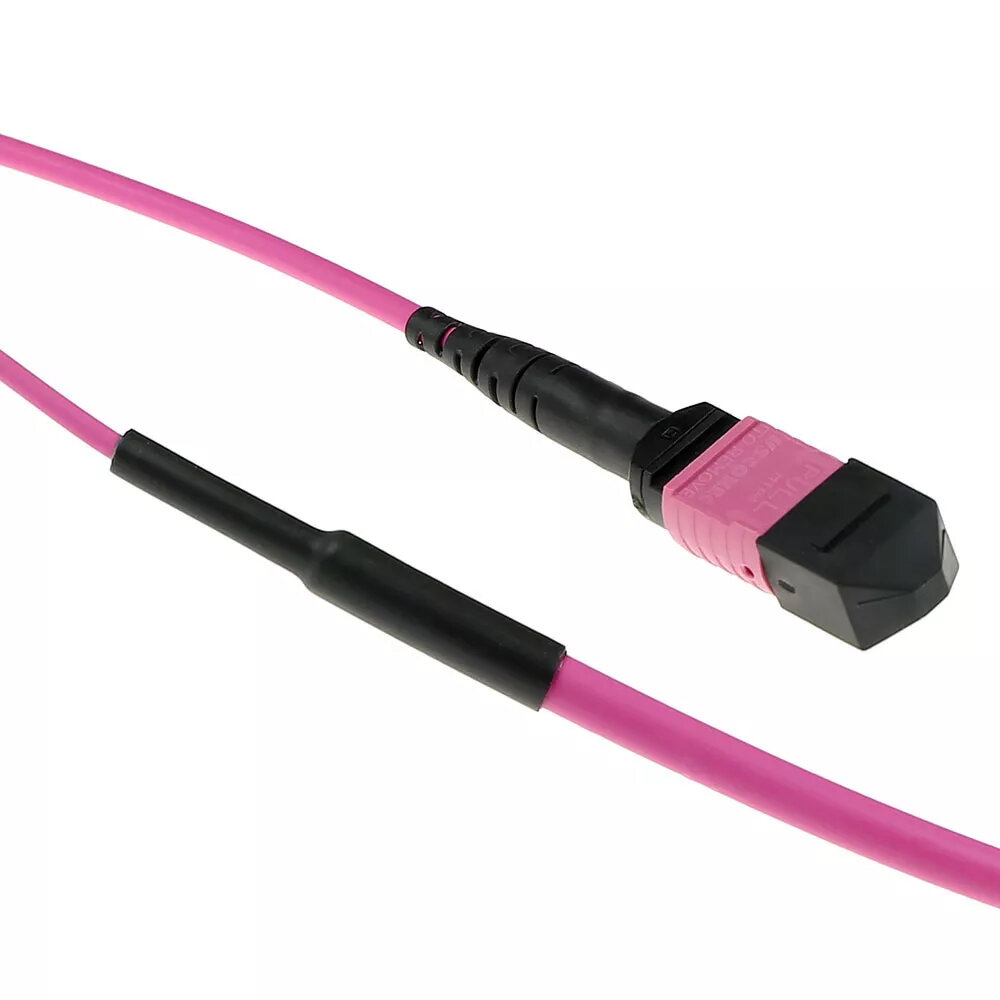

Fiber Trunk Cable ACT 25m Multimode 50/125 OM4(OM3) Photo 1

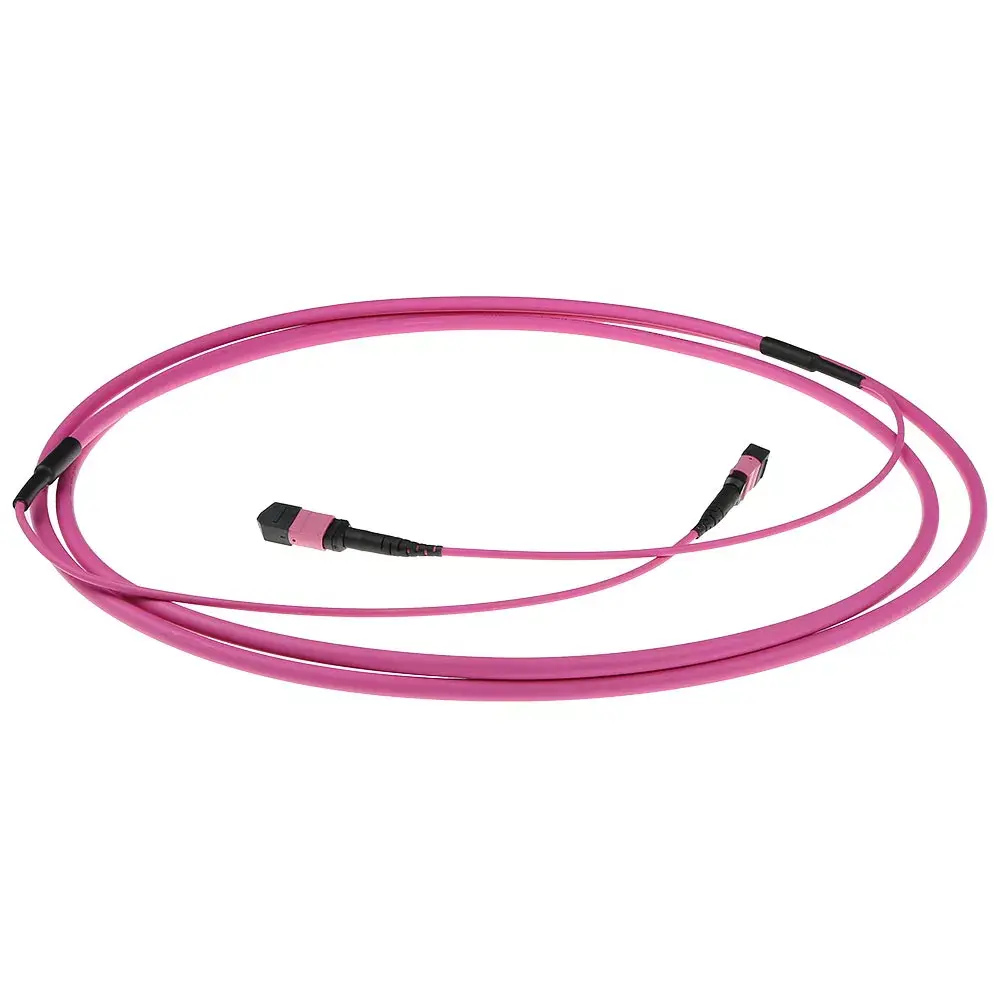

Fiber Trunk Cable ACT 25m Multimode 50/125 OM4(OM3) Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 25 meter Multimode 50/125 OM4(OM3) fiber trunk cable features MTP/MPO female connectors, ensuring high-speed data transmission. With a core diameter of 50 µm, this cable is ideal for data centers and high-performance networks. Its polarity A configuration allows for easy integration into existing systems, providing reliable connectivity and enhanced performance for various applications.

Available for order: 9 pcs.

Warranty: 2 Years

SKU: 3889020

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT 25m Multimode 50/125 OM4(OM3) Fiber Trunk Cable with MTP/MPO female connectors is a 12-fiber, 6.5 mm trunk cable designed for high-density datacenter environments and backbone links. It uses OM4 multimode fibre that is backward compatible with OM3 and is intended for use with QSFP transceivers or as part of high-speed network infrastructure. The cable features an MTP US Conec connector at each end to ensure low insertion loss and improved mechanical performance.

Advantages

Ultra-compact design combines 12 fibers in a single 6.5 mm trunk for reduced space usage in racks and ducts. MTP US Conec connectors provide low loss and consistent optical performance with better mechanical durability. OM4 fibre supports higher bandwidth and longer multimode links while remaining compatible with OM3 equipment. Polarity A wiring simplifies integration in systems that require that configuration.

Suitable for

Datacenter backbone and high-density patching
Connections to QSFP transceivers and high-speed modules
Multimode network infrastructure requiring OM4/OM3 compatibility

Key specifications

Length: 25 m
Fiber type: Multimode 50/125 µm OM4 (backwards compatible with OM3)
Fiber count: 12 fibers
Cable diameter: 6.5 mm
Connector type: MTP/MPO female (MTP US Conec)
Polarity: A
Brand/Model: ACT, MPN DC5000
EAN: 8716065420692

How to use

Route the trunk cable through racks or containment systems, avoiding sharp bends and excessive tensile stress. Terminate each end into compatible MTP/MPO adapters or cassette panels and connect to QSFP transceivers or patch panels following the Polarity A wiring scheme. Ensure connectors are clean before mating and secure cable to prevent strain on the connector interfaces.

Usage recommendations

Inspect and clean MTP connectors with appropriate fibre cleaning tools before installation, maintain minimum bend radius according to manufacturer guidance, and use compatible MPO/MTP adapters or cassettes to preserve low loss and mechanical integrity.

All features

Weight:: 1.04 kg
Storage temperature (T-T):: -40 - 80
Operating temperature (T-T):: -20 - 70
Cable length:: 25 m
Product colour:: Violet
Connector 1:: MPO/MTP
Connector 2:: MPO/MTP
Cable diameter:: 6.5 mm
Insertion loss:: 0.35 dB
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Jacket material:: Low smoke zero halogen (LSZH), Low smoke fire retardant zero halogen (LSFRZH)
Connector 1 gender:: Female
Connector 2 gender:: Female
Harmonized System (HS) code:: 85447000
Fibre optic type:: OM3/OM4
Return loss:: 20 dB
