Fiber Trunk Cable ACT 30m Multimode 50/125 OM4(OM3)

Name: Fiber Trunk Cable ACT 30m DC5001
Brand: ACT
SKU: 3889019
Price: 307.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Fiber Trunk Cable ACT 30m Multimode 50/125 OM4(OM3) Polarity A

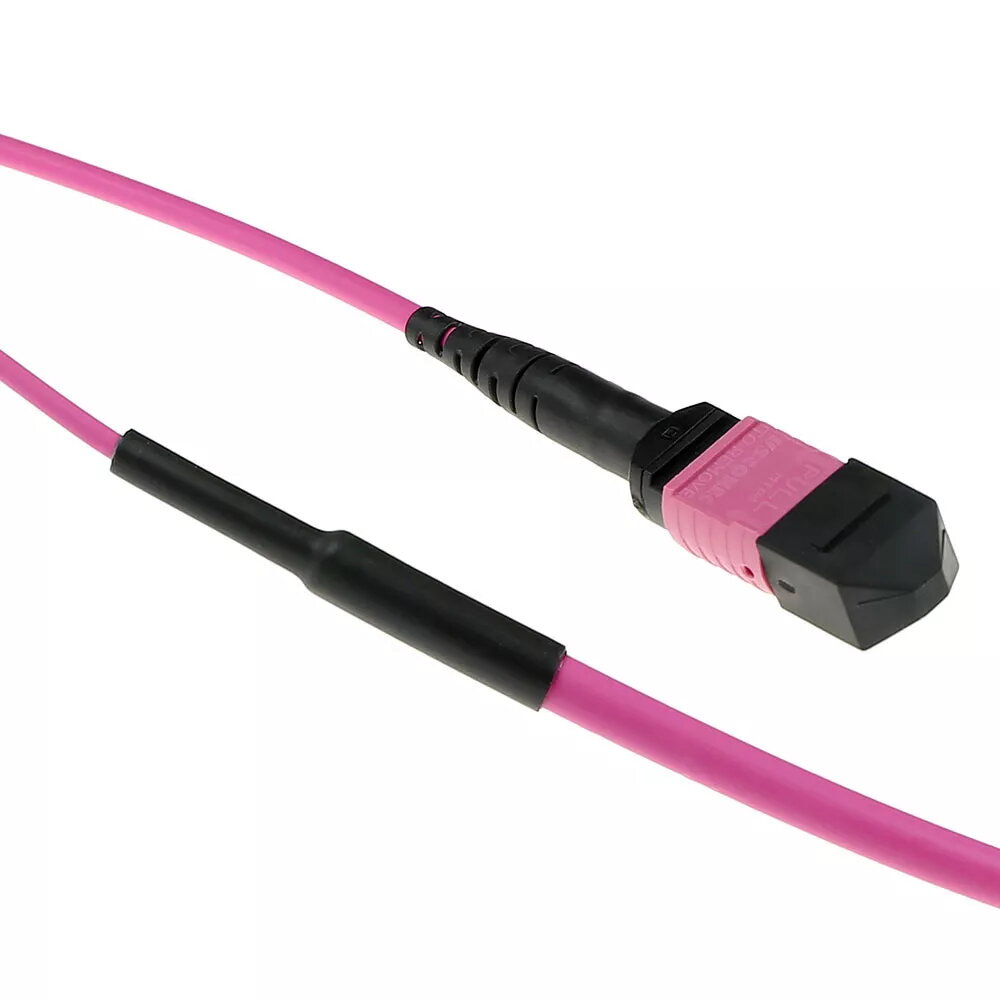

Fiber Trunk Cable ACT 30m Multimode 50/125 OM4(OM3) Photo 1

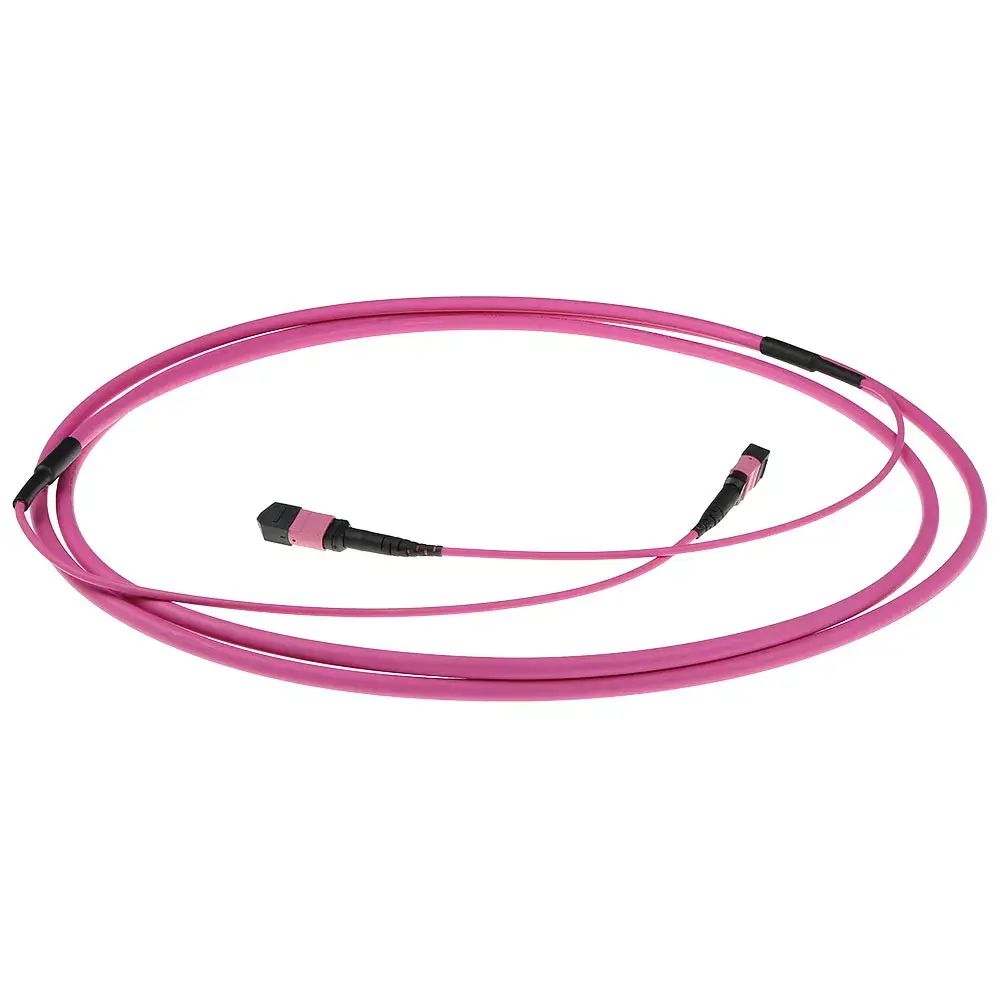

Fiber Trunk Cable ACT 30m Multimode 50/125 OM4(OM3) Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 30 meter Multimode 50/125 OM4(OM3) fiber trunk cable features MTP/MPO female connectors, ensuring high-speed data transmission. With a core diameter of 50 µm, this cable is ideal for data centers and high-bandwidth applications. Its polarity A configuration allows for easy integration into existing networks, providing reliable performance and durability for long-term use.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 3889019

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT 30m Multimode 50/125 OM4(OM3) Fiber Trunk Cable is an ultra-compact, high-density fibre solution featuring 12 multimode fibres in a 6.5 mm trunk and one MTP connector at each end. Designed for data centre backbones and QSFP transceiver connections, the cable uses OM4 fibres that are backwards compatible with OM3 and delivers low insertion loss thanks to MTP US Conec connectors. Polarity A wiring simplifies integration with existing infrastructure while supporting high-bandwidth links over short to medium distances.

Advantages

The cable’s compact 6.5 mm trunk with 12 fibres reduces space and improves cable management in dense rack environments. Fitted with MTP US Conec connectors, it offers low optical loss and improved mechanical stability compared with standard MPO terminations. Compatibility with QSFP transceivers and use as backbone cabling make it suitable for high-speed links. OM4 fibres provide enhanced modal bandwidth while remaining compatible with OM3 systems.

Suitable for

Data centre backbone cabling
Connections to QSFP transceivers (40G/100G applications)
High-density patching panels and MPO/MTP equipment
Short- to medium-reach multimode links

Key specifications

Length: 30 m
Fibre type: Multimode 50/125 µm OM4 (backwards compatible with OM3)
Fibre count: 12 fibres in a 6.5 mm trunk
Connectors: MTP/MPO (MTP US Conec)
Polarity: A
Brand: ACT
MPN: DC5001
EAN: 8716065420708

How to use

Install the trunk cable between MPO/MTP panels or directly between devices equipped with compatible MTP connectors. Ensure correct Polarity A alignment when connecting to patch panels or transceivers to maintain signal mapping. Route the 6.5 mm trunk to avoid tight bends and secure with appropriate cable management accessories to prevent strain on the connectors. Verify end-face cleanliness before mating to minimise insertion loss.

Usage recommendations

For reliable performance, clean MTP connector end faces with approved fibre cleaning tools prior to connection, avoid bend radii below the manufacturer’s minimum, and store or handle the trunk to prevent mechanical stress. Use the cable for short- to medium-reach multimode links and in high-density environments where space-saving trunk solutions are required.

All features

Weight:: 1.25 kg
Storage temperature (T-T):: -40 - 80
Operating temperature (T-T):: -20 - 70
Cable length:: 30 m
Product colour:: Violet
Connector 1:: MPO/MTP
Connector 2:: MPO/MTP
Cable diameter:: 6.5 mm
Insertion loss:: 0.35 dB
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Jacket material:: Low smoke zero halogen (LSZH), Low smoke fire retardant zero halogen (LSFRZH)
Connector 1 gender:: Female
Connector 2 gender:: Female
Harmonized System (HS) code:: 85447000
Fibre optic type:: OM3/OM4
Return loss:: 20 dB
