Fiber optic SC-SC simplex adapter ACT Fiber optic SC-SC simplex adapter multimode OM5

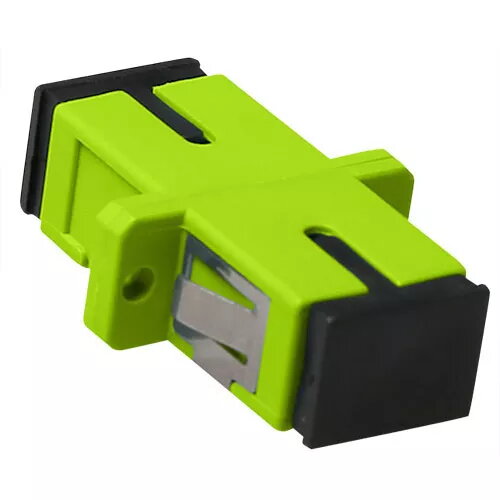

The ACT Fiber optic SC-SC simplex adapter multimode OM5 is a compact coupling device for joining two SC connectors in multimode OM5 fiber optic links. Designed for single-channel connections, the adapter aligns fiber cores precisely to maintain signal integrity and minimize insertion loss. Its green housing indicates OM5 multimode compatibility and supports high-speed data transmission in structured cabling and active equipment panels. Supplied as a single piece, the adapter is suitable for patch panels, wall plates, or inline splices where a simple, reliable SC-to-SC connection is required.

Advantages

The adapter provides accurate mechanical alignment between SC ferrules to reduce back-reflection and insertion loss, ensuring consistent signal performance. Its simplex SC form factor conserves panel space while offering easy push-pull mating for rapid installation and removal. The green color coding simplifies identification of OM5 multimode links in mixed-fiber environments. Constructed for compatibility with standard SC ferrules and multimode OM5 fiber, the adapter supports reliable operation in data center and LAN applications.

Suitable for

• Joining two SC multimode OM5 fiber cables in network racks and patch panels
• Connecting SC-terminated equipment to panel or wall outlet
• Short patch runs in data centers, telecommunication closets, and enterprise LANs
• Field installations and repairs requiring a compact SC-SC inline coupler

Key specifications

• Connector type: SC to SC simplex
• Fiber type: Multimode OM5
• Housing color: Green (OM5 identification)
• Polish type: Typically UPC/APC compatible with SC ferrules (matches network requirements)
• Mounting: Inline/coupling for adapters, compatible with standard adapter panels and faceplates
• Quantity: Single piece per pack

How to use

Ensure both fiber ends are clean and inspected before insertion. Align the SC connector ferrule with the adapter opening and push the connector straight into the adapter until it clicks into place. For removal, depress the connector’s latch and pull straight out. When installing into panels or faceplates, insert the adapter into the panel cutout and secure according to the panel manufacturer’s instructions. Maintain careful handling to avoid contaminating the ferrule endfaces and follow standard fiber cleaning and inspection procedures to preserve link performance.

Usage recommendations

Use only proper fiber cleaning tools and visual inspection equipment before mating. Match multimode OM5 fiber and connector polish types across the link, and avoid bending the fiber beyond its minimum bend radius to maintain low loss and reliable data transmission.
