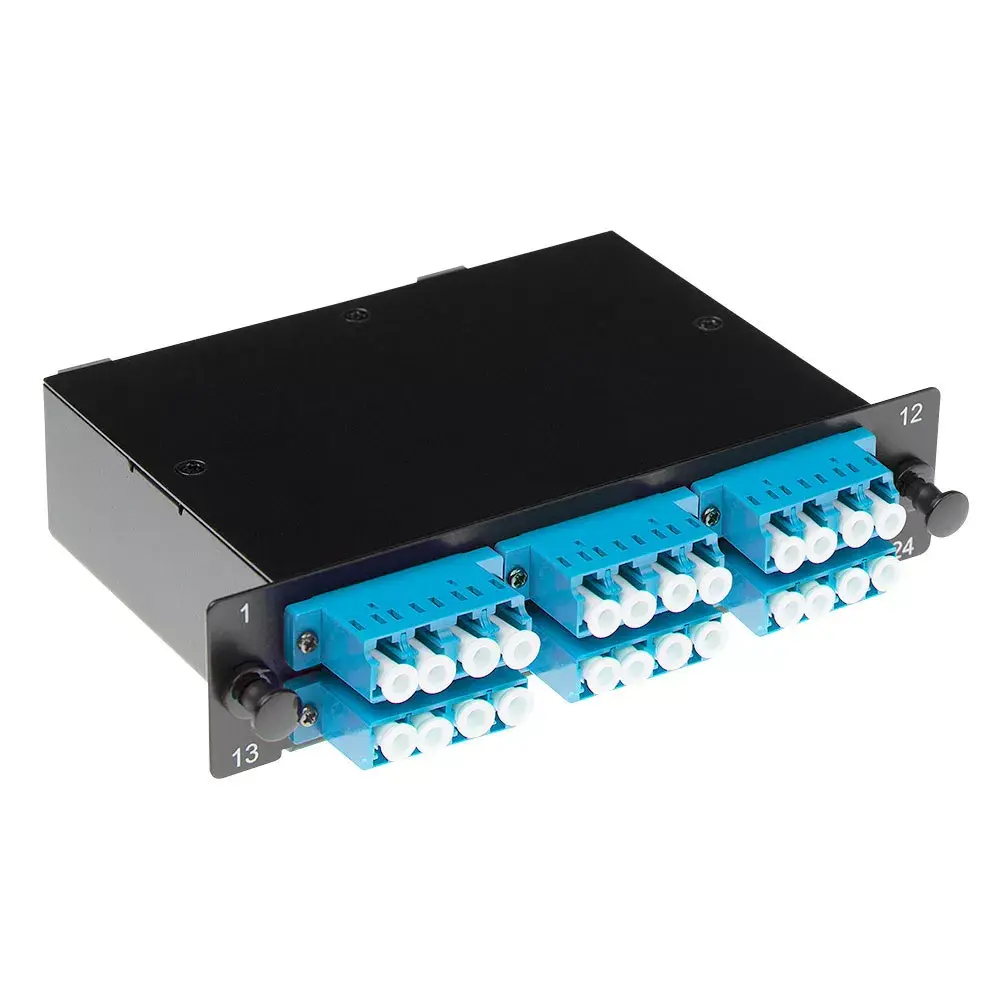

Fanout cassette 24 fibers ACT FA2065

The ACT Fanout cassette 24 fibers ACT FA2065 provides organized, high-density fiber management for data centers and telecommunications closets. This cassette holds 24 fibers terminated with MTP®-MPO Low Loss OS2 connectors and is designed for integration into a 1U rack with compact dimensions of 130 mm width, 30 mm height and 75 mm depth. Constructed from durable metal and available in black, blue and white finishes, the cassette supports reliable single-mode fiber connections and straightforward deployment in structured cabling environments.

Advantages

The cassette combines a compact 1U form factor with metal construction for mechanical protection and long service life. Use of MTP®-MPO Low Loss OS2 connectors reduces insertion loss and supports high-performance optical links. Its small footprint and standardized dimensions simplify mounting in patch panels and fiber enclosures, while the availability in multiple colours helps with visual identification and cable management.

Suitable for

• Data center rack-mounted fiber distribution and patching
• Telecommunications wiring closets and central offices
• High-density single-mode fiber backbone deployments
• Modular fiber shelves and MPO/MTP breakout installations

Key specifications

• Fiber count: 24 fibers
• Connector type: MTP®-MPO Low Loss
• Fiber type: OS2 (single-mode)
• Mounting: 1U rack-compatible cassette
• Dimensions (W×H×D): 130 mm × 30 mm × 75 mm
• Material: metal housing
• Available colours: black, blue, white

How to use

Install the cassette into a compatible 1U slot in a patch panel or fiber enclosure, securing it with the appropriate fasteners. Route incoming MPO/MTP trunk cables to the cassette's MPO/MTP ports and connect the cassette's individual fiber outputs to patch cords or equipment as required. Maintain proper bend radius for all fibers during installation and label each port or colour as part of the cabling documentation to ensure clear identification and traceability.

Usage recommendations

Handle connectors with dust caps until final connection, use compatible MPO/MTP cleaning procedures before mating, and follow standard single-mode handling practices. For best performance, verify insertion loss and polarity after installation and plan colour coding or labelling to match your site cabling scheme.
