Fiber patch cable ACT 0.5 meter LSZH Multimode 50/125 OM2

Name: Fiber patch cable ACT 0.5 RL1500
Brand: ACT
SKU: 1040712
Price: 24.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

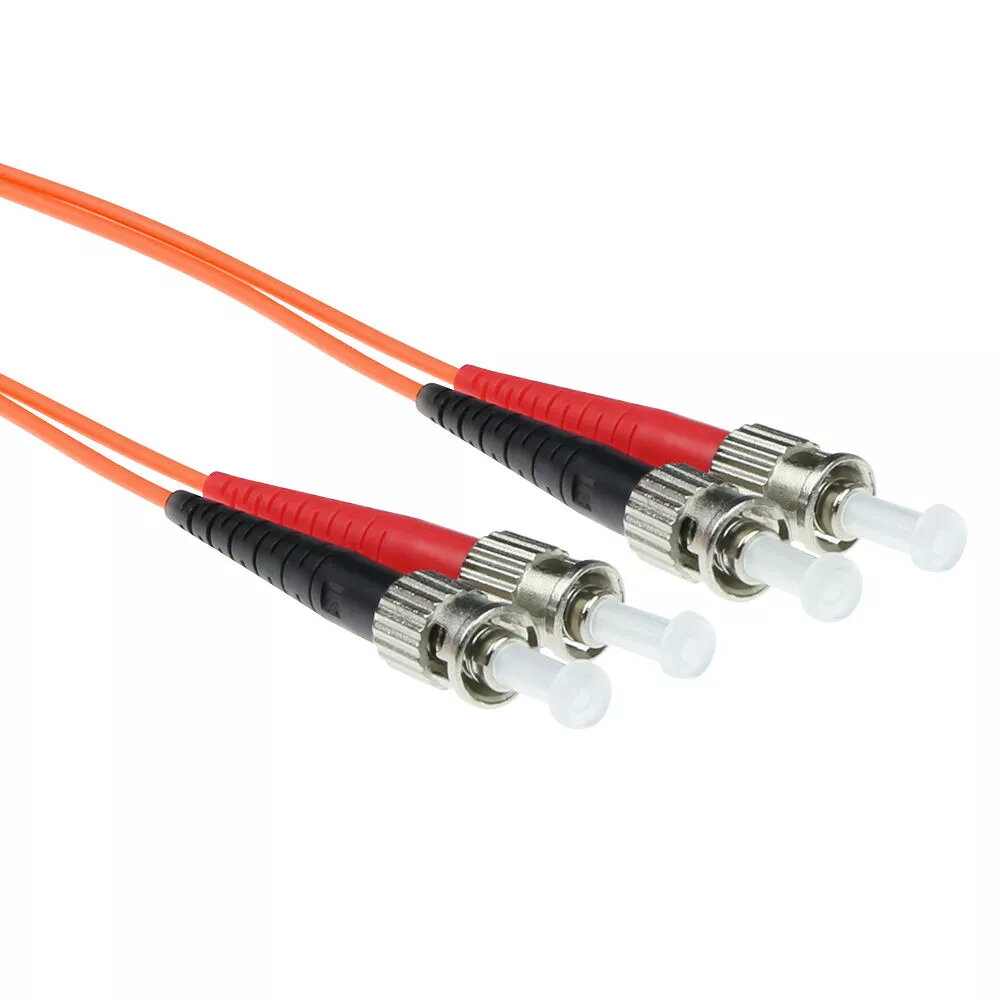

Fiber patch cable ACT 0.5 meter LSZH Multimode 50/125 OM2 duplex ST connectors

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 0.5 meter LSZH Multimode 50/125 OM2 fiber patch cable features ST connectors for reliable connectivity. With a core diameter of 50 µm, this full duplex cable ensures high-speed data transmission. Ideal for short-distance applications, it is made from low smoke zero halogen (LSZH) materials, providing safety in confined spaces. Perfect for networking and telecommunications setups.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 1040712

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT 0.5 meter LSZH Multimode 50/125 OM2 duplex ST connectors patch cable is designed for short-distance fiber optic links in networking and telecommunications environments. This duplex cable uses 50/125 µm multimode fiber (OM2) and ST connectors on both ends to provide reliable full-duplex data transmission. The jacket is manufactured from low smoke zero halogen (LSZH) material, reducing harmful emissions in the event of fire and making the cable suitable for use in enclosed or public spaces where safety requirements are important.

Advantages

The cable offers stable multimode performance with an OM2 core size suitable for short-range multimode applications and legacy network equipment. ST connectors provide a bayonet-style coupling for secure mechanical connection and straightforward installation. The LSZH jacket minimizes smoke and halogen release, supporting compliance with safety guidelines in offices, data centers, and public buildings. Its 0.5 meter length reduces excess cabling and helps maintain tidy cable management in patch panels and equipment racks.

Suitable for

Short trunk and patch connections between switches and transceivers
Connections in data centers, telecom rooms, and wiring closets
Local area network (LAN) links and equipment interconnects
Environments with fire-safety regulations where LSZH materials are required

Key specifications

Fiber type: Multimode 50/125 µm (OM2)
Length: 0.5 meter duplex
Connector type: ST duplex connectors
Jacket material: Low Smoke Zero Halogen (LSZH)
Transmission: Full duplex multimode optical link
Typical applications: Short-distance data and telecom links

How to use

Inspect connectors and cable for damage before installation. Align the ST connectors with the equipment or patch panel receptacles and insert, using the bayonet twist to lock each connector in place. Use one fiber for transmit and the other for receive to maintain correct full-duplex communication. Route the 0.5 m patch cable to avoid sharp bends; maintain bend radii recommended for multimode fiber. When rearranging or removing the cable, unlock the ST connectors with a slight twist and withdraw without applying excessive force to the fiber ends.

Usage recommendations

For optimal performance, keep connector endfaces clean using appropriate fiber cleaning tools and inspect with a microscope if possible. Avoid bending the cable below the manufacturer’s minimum bend radius and protect against mechanical strain at connector junctions. Use this short-length OM2 duplex cable for intra-rack or adjacent-rack connections where multimode transceivers are in use, and prefer LSZH-specified routing in areas with low ventilation or public access to meet safety standards.

All features

Full duplex:: Yes
Operating temperature (T-T):: -25 - 80
Cable length:: 0.5 m
Product colour:: Orange
Connector material:: Ceramic
Connector 1:: ST
Connector 2:: ST
Cable diameter:: 2 mm
Insertion loss:: 0.2 dB
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender:: Male
Connector 2 gender:: Male
Compressive strength:: 90
Harmonized System (HS) code:: 85447000
Fibre optic type:: OM2
Return loss:: 45 dB
Compliance certificates:: RoHS
