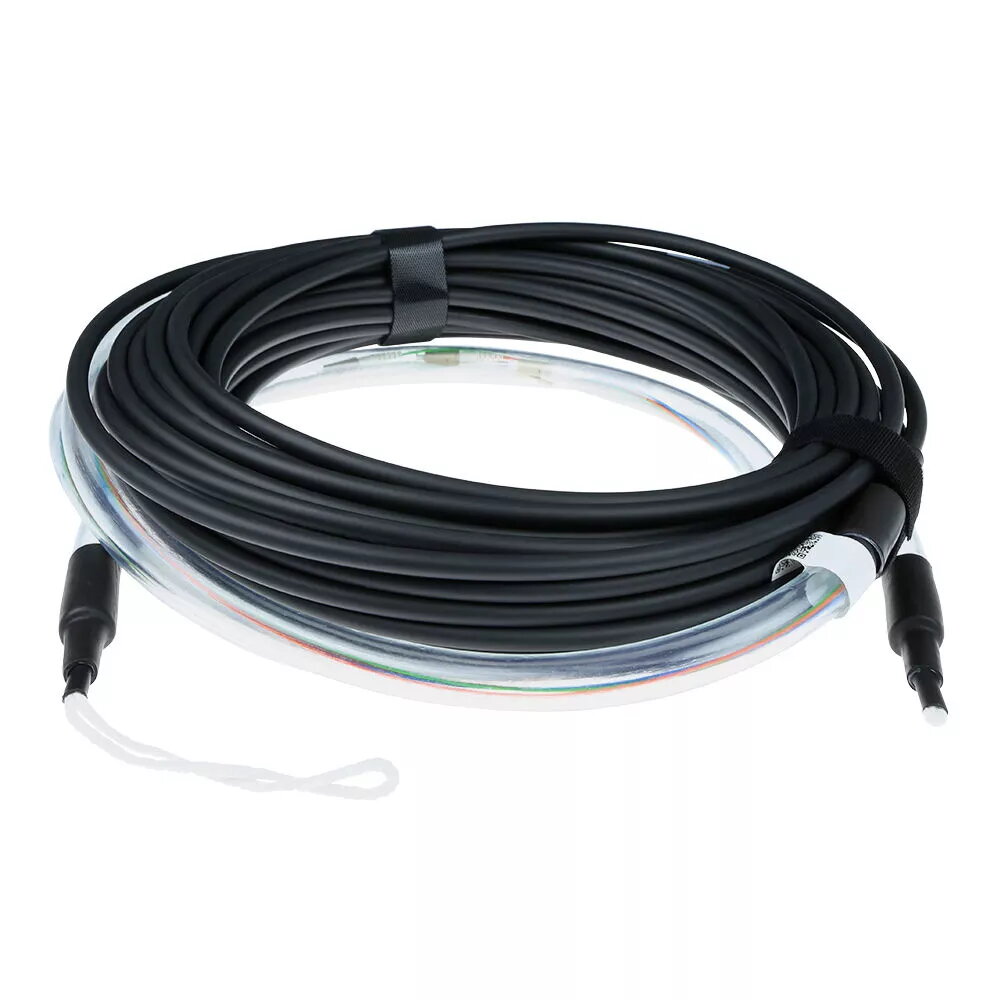

Fibre optic cable ACT RL2204 OM4 40 m 4x LC — black

ACT RL2204 OM4 multimode fibre optic cable, 40 m, with 4x LC connectors on each end and a 50 µm core diameter. This pre-terminated cable is ready to use for short-to-medium reach high-speed links in data centres, server interconnects, SANs or between rooms, floors or buildings. The cable has a black jacket and is tested individually with an accompanying test report.

Advantages

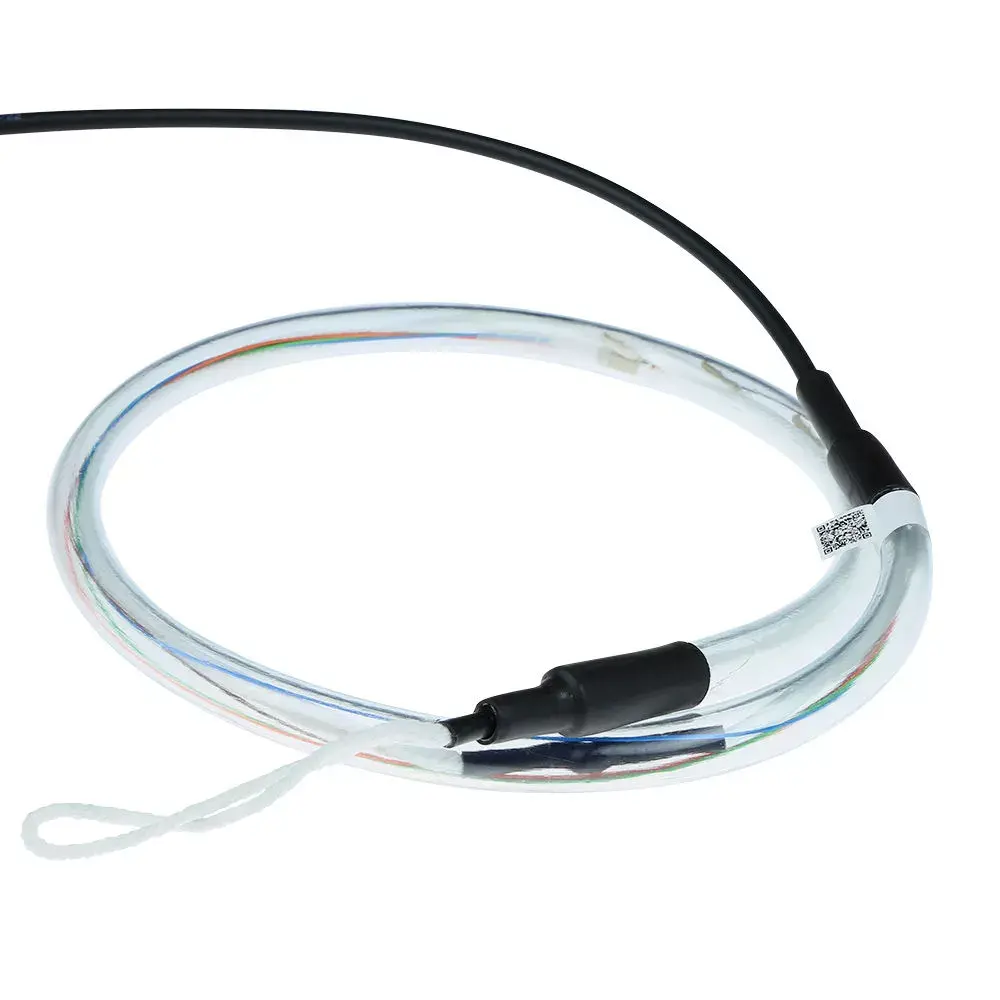

Pre-terminated ACT cables eliminate the need for on-site termination tools and test equipment because connectors are factory-fitted and each cable is individually tested. The cable offers low optical attenuation (average 0.10 dB, maximum 0.15 dB) which provides margin in optical budgets. Mechanical protection includes a transparent tube protecting connectors and fanouts, a robust construction with a drawbar eye rated for up to 350 N pulling force, and a slim 18 mm protective hose for easy routing through conduits. The cable meets the Dca Euroclass of the European Construction Products Regulation (CPR).

Suitable for

• Data centres and server interconnects
• Storage area networks (SANs)
• Connecting rooms within a building
• Connecting floors or risers
• Linking separate buildings on a site

Key specifications

• Brand: ACT
• Model: RL2204
• Length: 40 m
• Fibre type: OM4 multimode
• Core diameter: 50 µm

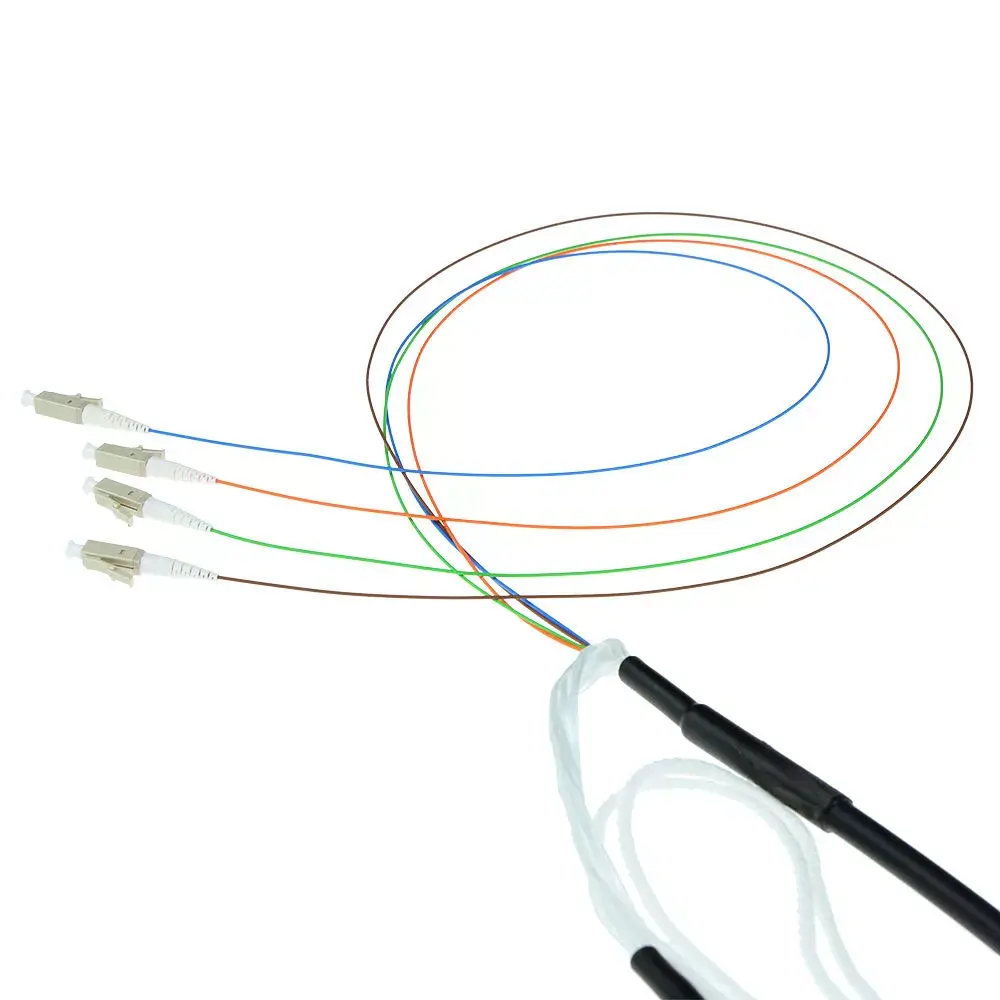

• Connectors: 4x LC on each end (pre-terminated)
• Average attenuation: 0.10 dB
• Maximum attenuation: 0.15 dB
• Jacket colour: Black
• CPR rating: Dca Euroclass
• EAN: 8716065331141

How to use

Route the pre-terminated ACT RL2204 cable between connection points keeping bends within the manufacturer’s minimum bend radius. Remove external packing, position the protected connector housings where connectors will be mated and remove the transparent protection tube only immediately before making the final connection. Do not perform on-site connector termination or polishing. Verify connections using existing network test procedures if required; each cable is supplied with a factory test report.

Usage recommendations

Handle the protected connectors and fanout areas carefully during installation. Keep the protective tube in place until final mating, avoid exceeding the 350 N pull rating, and ensure the cable passes through conduits compatible with an 18 mm outer diameter. Follow standard fibre handling and safety procedures and scan the QR code on the cable for detailed installation instructions.
