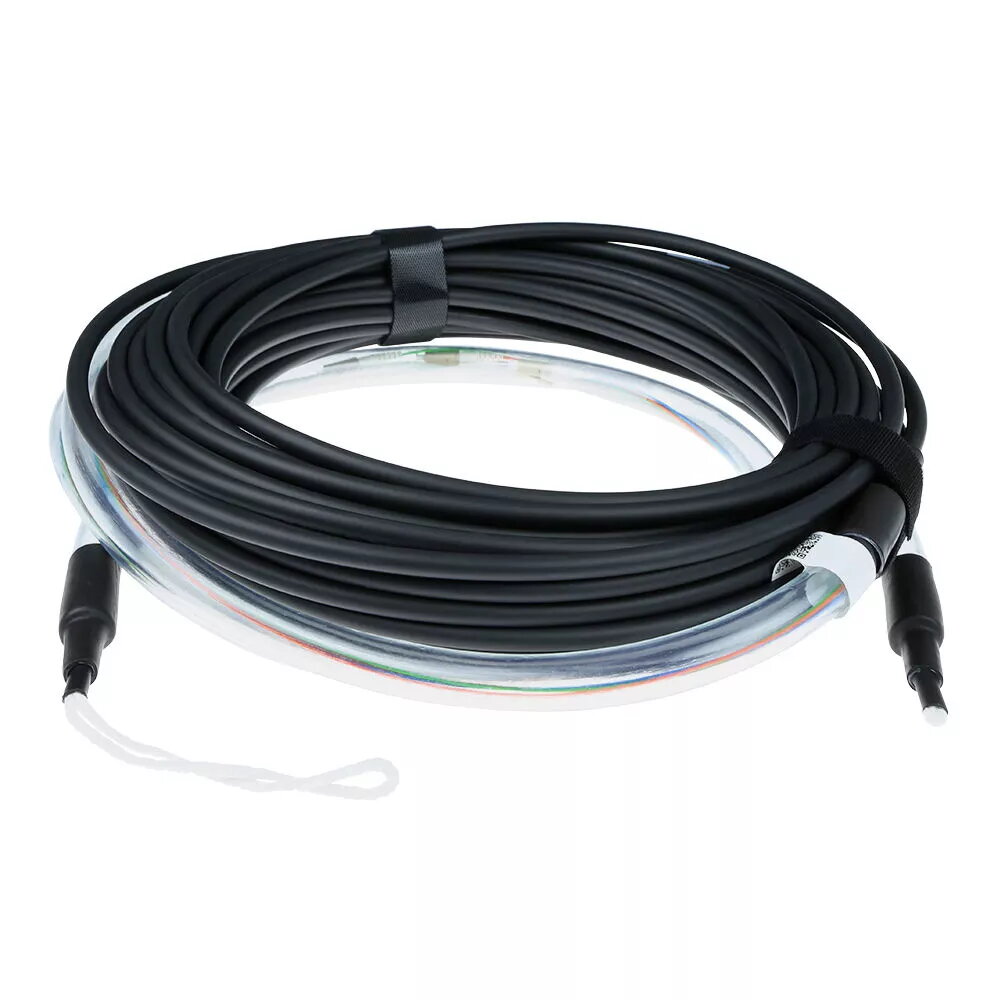

ACT 120 meter Multimode 50/125 OM4 indoor/outdoor cable 4 fibers with LC connectors

The ACT 120 meter Multimode 50/125 OM4 indoor/outdoor cable with 4 fibers and LC connectors is a ready-to-install pre-terminated fiber optic cable for connecting rooms, floors or buildings. Designed for both indoor and outdoor use, the cable features OM4 multimode fiber with a 50 µm core diameter and comes with factory-attached LC connectors that are individually tested and delivered with a test report.

Advantages

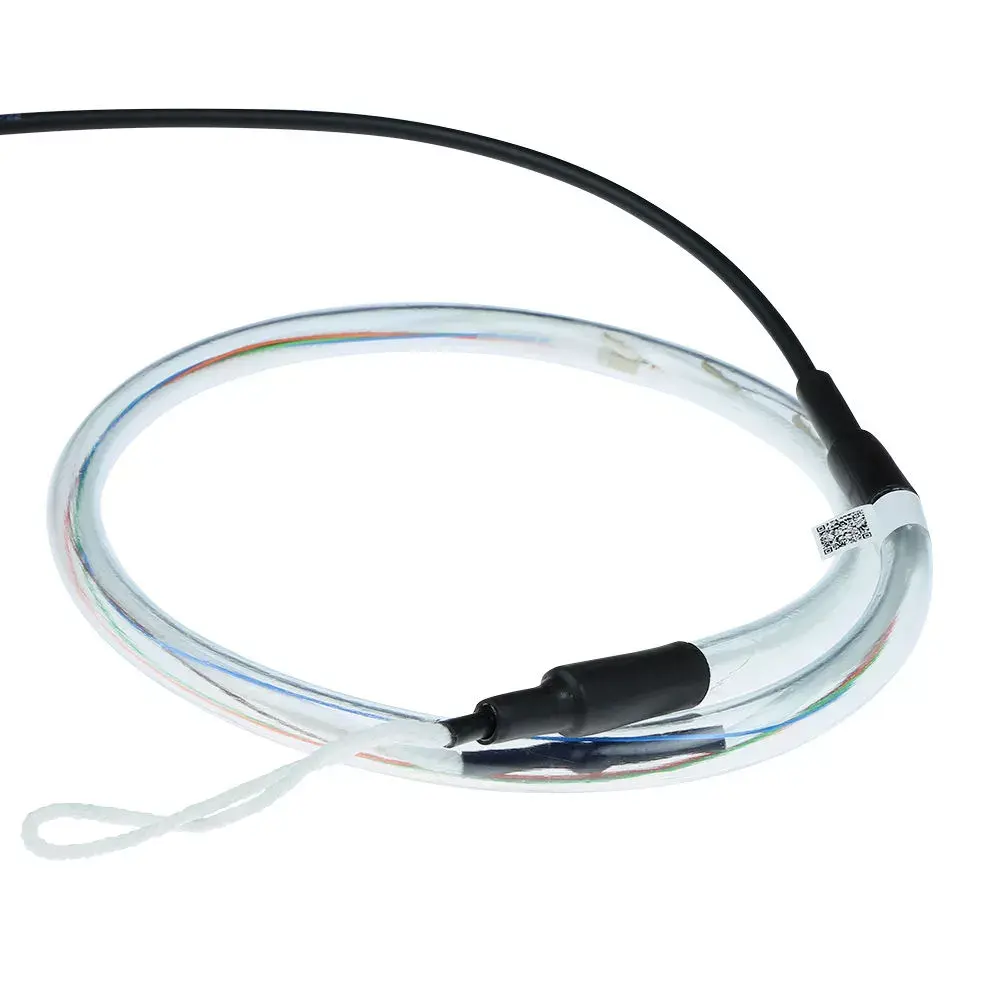

Pre-terminated and tested at the factory, the cable requires no special termination tools or test equipment on site. It provides low attenuation (typical values around 0.1 dB and maximum around 0.15 dB), compact protective tubing for easy routing through conduits, robust construction with a drawbar eye for up to 350 N pulling force, and protection of connectors and fanouts by transparent tubing at both ends.

Suitable for

• Connecting two buildings on a site
• Running fiber between different floors in the same building
• Interconnecting separate rooms or data closets
• Indoor and outdoor horizontal or vertical cabling

When it may not be suitable

This multimode OM4 cable is intended for short- to medium-distance data links and high-speed networks using multimode transceivers. It is not suitable for long-haul singlemode fiber links or applications that specifically require singlemode fiber or different connector types than LC.

Key specifications

• Cable length: 120 meters
• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Number of fibers: 4

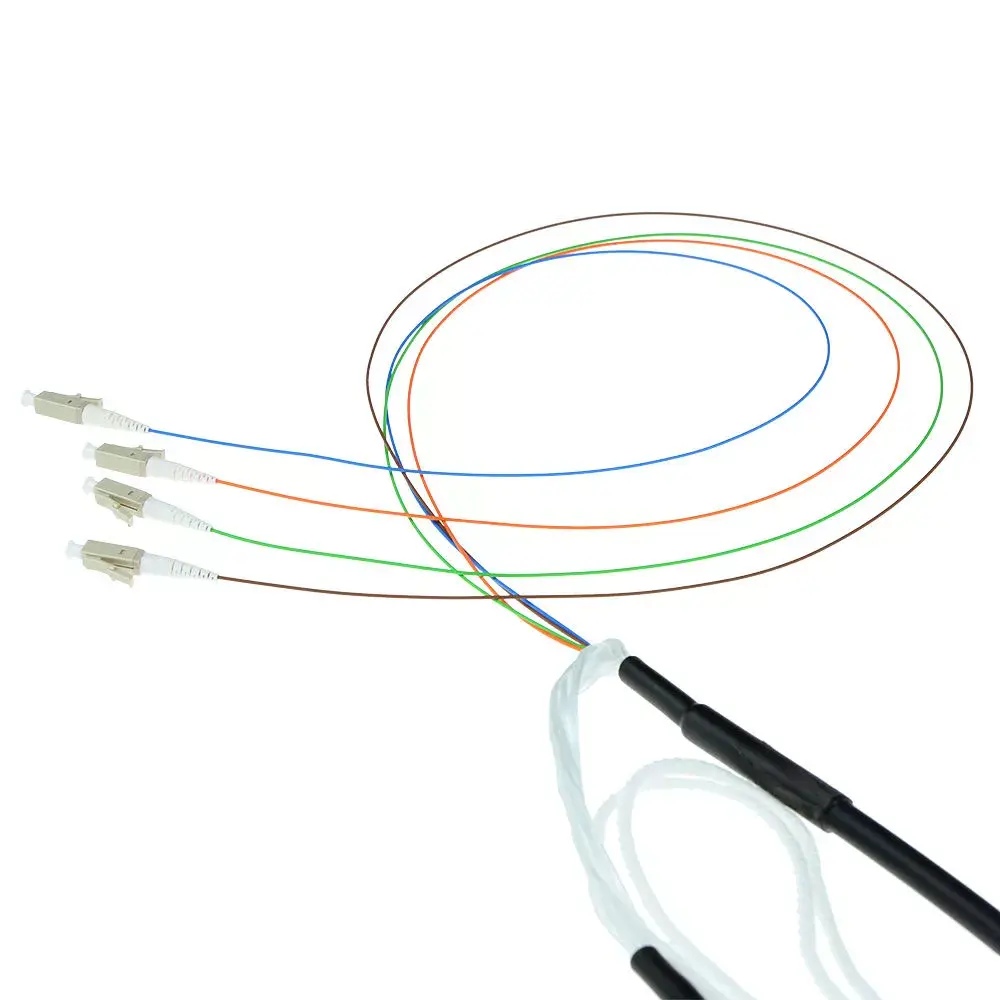

• Connectors: LC, factory fitted and tested
• Typical attenuation: approx. 0.10 dB per connector (typical)
• Maximum attenuation: approx. 0.15 dB
• Protective tube diameter: 18 mm
• Maximum tensile load during installation: up to 350 N

How to use

Install the cable by routing it through the intended pathway or conduit, using the drawbar eye for pulling if needed and observing the 350 N pulling limit. Remove only the protective transparent tubing at the connector ends when making the final connections. Connect each LC connector to the corresponding LC ports on transceivers, patch panels or adapters. Verify continuity and link performance according to your network equipment procedures or using the factory test report included with the cable.

What to consider before purchase

• Ensure your network equipment uses multimode OM4 fiber and LC connectors
• Confirm the 120 m length fits the planned route including any slack for termination
• Check required installation pulling forces and conduit diameter to accommodate the 18 mm protective tube

Usage recommendations

For reliable results, follow the manufacturer’s installation limits (maximum pull force) and keep connectors covered until final connection; use compatible multimode transceivers and test or validate links after installation using the supplied test report or your verification tools.
