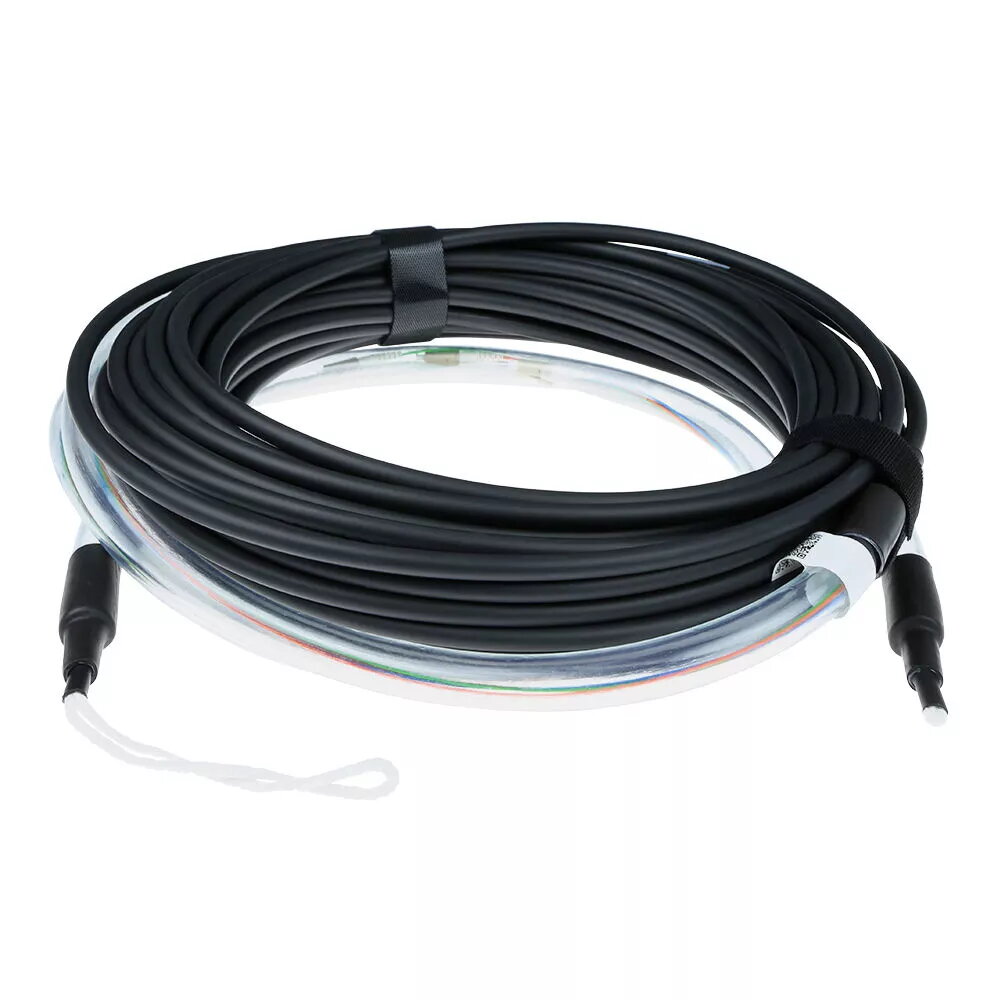

Singlemode Fiber Optic Cable ACT 300m 9/125 OS2 4x LC Connectors

The ACT Singlemode Fiber Optic Cable 300m 9/125 OS2 with 4x LC connectors on each end is a pre-terminated indoor/outdoor fiber link designed for long-distance, high-bandwidth data transmission. The cable uses a 9 µm core singlemode fiber (OS2) that minimizes signal attenuation and supports modern networking requirements. Each cable is supplied ready to install with LC connectors factory-terminated and individually tested, making it suitable for immediate deployment between rooms, floors or buildings without the need for field termination tools or connector polishing.

Advantages

Factory-terminated and individually tested LC connectors reduce installation time and remove the need for specialized termination tools. The OS2 singlemode fiber construction delivers low attenuation and stable performance over long distances, supporting high-capacity links and extended optical budgets. The cable's design is suitable for both indoor and outdoor routing, with a compact protective tube and robust mechanical properties that allow easier handling and installation while protecting connectors and fanouts. A test report is included for each cable to verify optical performance.

Suitable for

• Connecting separate rooms within a building
• Linking different floors or vertical risers
• Connecting two buildings on the same site
• Data center and telecom trunk links requiring low-loss singlemode fiber

Key specifications

• Fiber type: Singlemode, OS2
• Core diameter: 9 µm
• Length: 300 meters

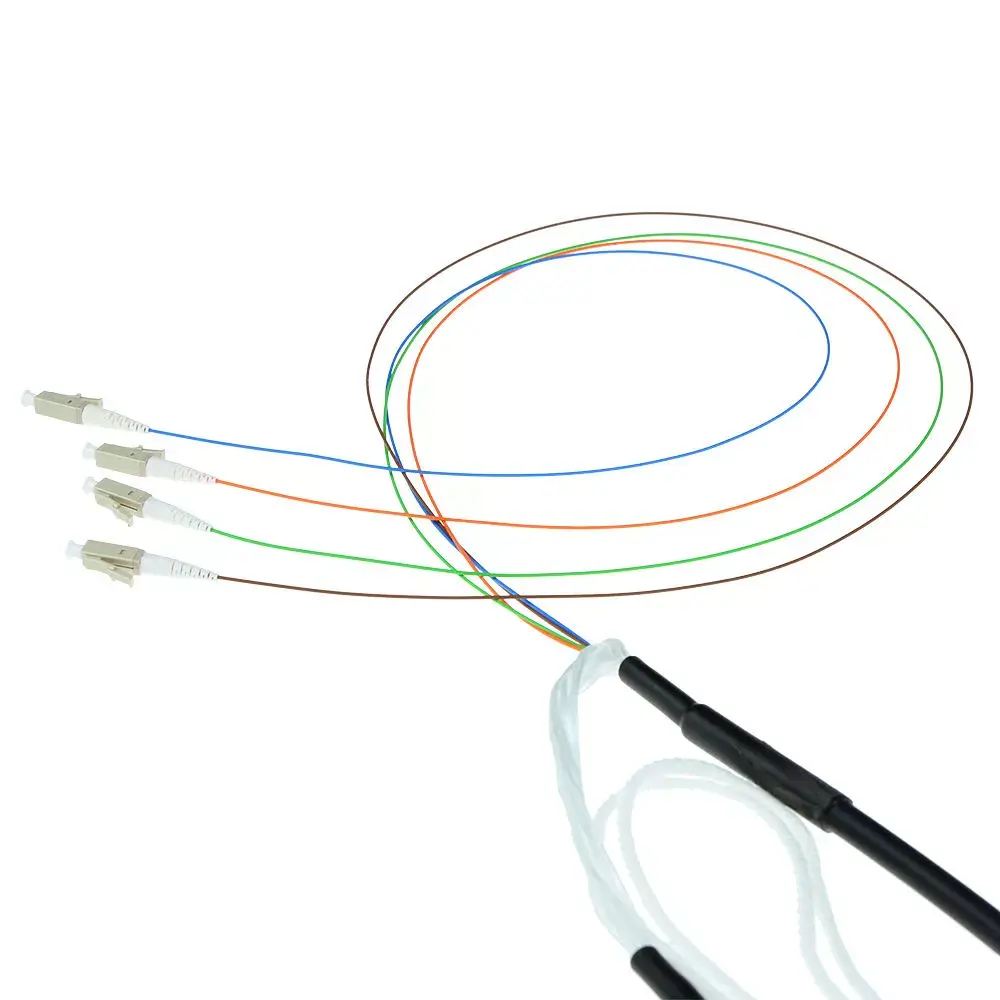

• Connector type: LC, 4 fibers per end (pre-terminated)
• Attenuation typical: approx. 0.1 dB (average measured value)
• Maximum measured attenuation: approx. 0.15 dB
• Indoor/outdoor rated construction suitable for horizontal and vertical use
• Protective outer tube diameter: approximately 18 mm for easy routing through conduits
• Maximum tensile handling: up to 350 N (with drawbar eye)

How to use

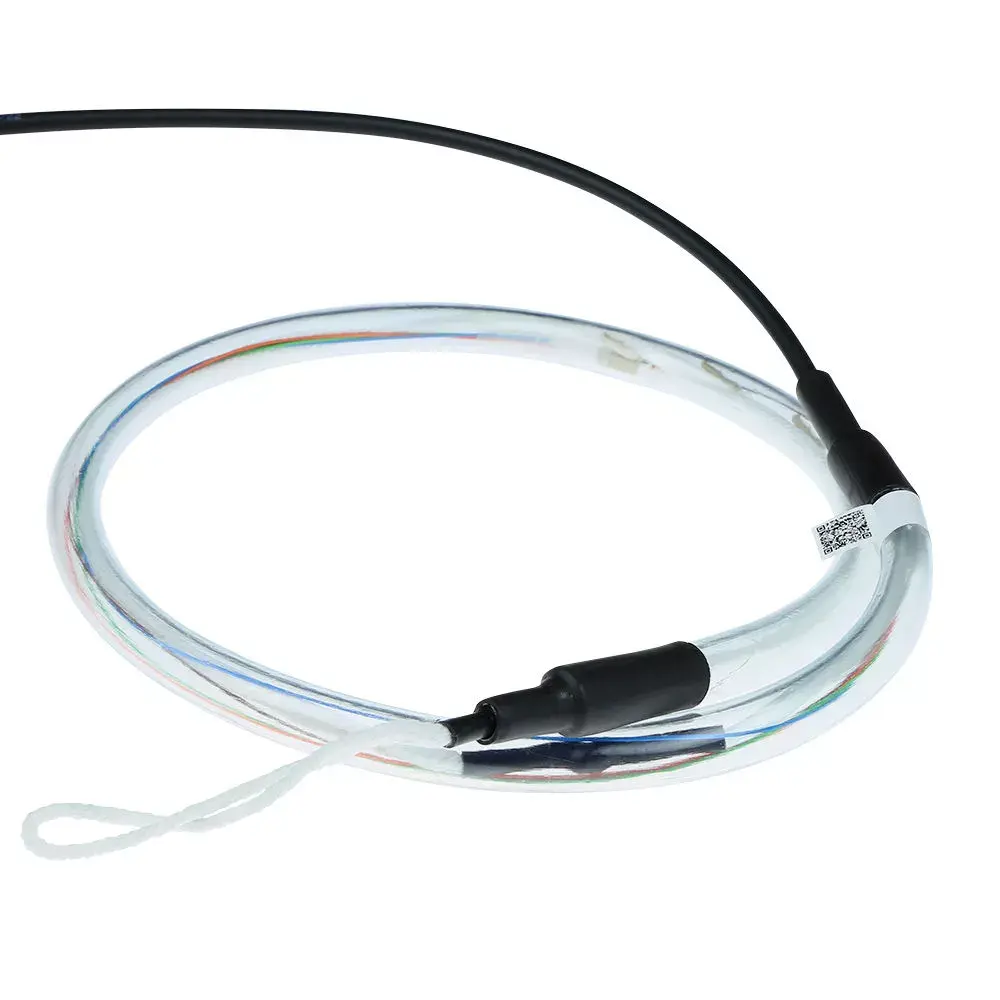

Unpack the pre-terminated ACT cable and route it along the planned path from end to end. The cable arrives with LC connectors already fitted and connectors and fanout protected by a transparent protective tube; remove only the external protective elements at each termination point as instructed. Plug the LC connectors into compatible LC ports or adapter panels on network devices or patch panels. No field termination or polishing is required. Each cable is supplied with an individual test report; verify the included test values against system optical budget requirements before finalizing connections.

Usage recommendations

Handle connector ends and fanouts carefully; keep dust caps on until final connection and follow standard fiber handling practices. Avoid sharp bends and protect the cable from mechanical strain using the drawbar eye when pulling. For guaranteed performance, compare the cable's test report attenuation values with your link budget and perform an OTDR or loss test after installation if required. Scan the QR code on the cable for detailed installation instructions and manufacturer guidance.
