Fiber Patch Cable ACT 20 meter OM3

Name: Fiber Patch Cable ACT 20 RL3420
Brand: ACT
SKU: 3299106
Price: 89.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Fiber Patch Cable ACT 20 meter multimode 50/125 OM3 duplex armored

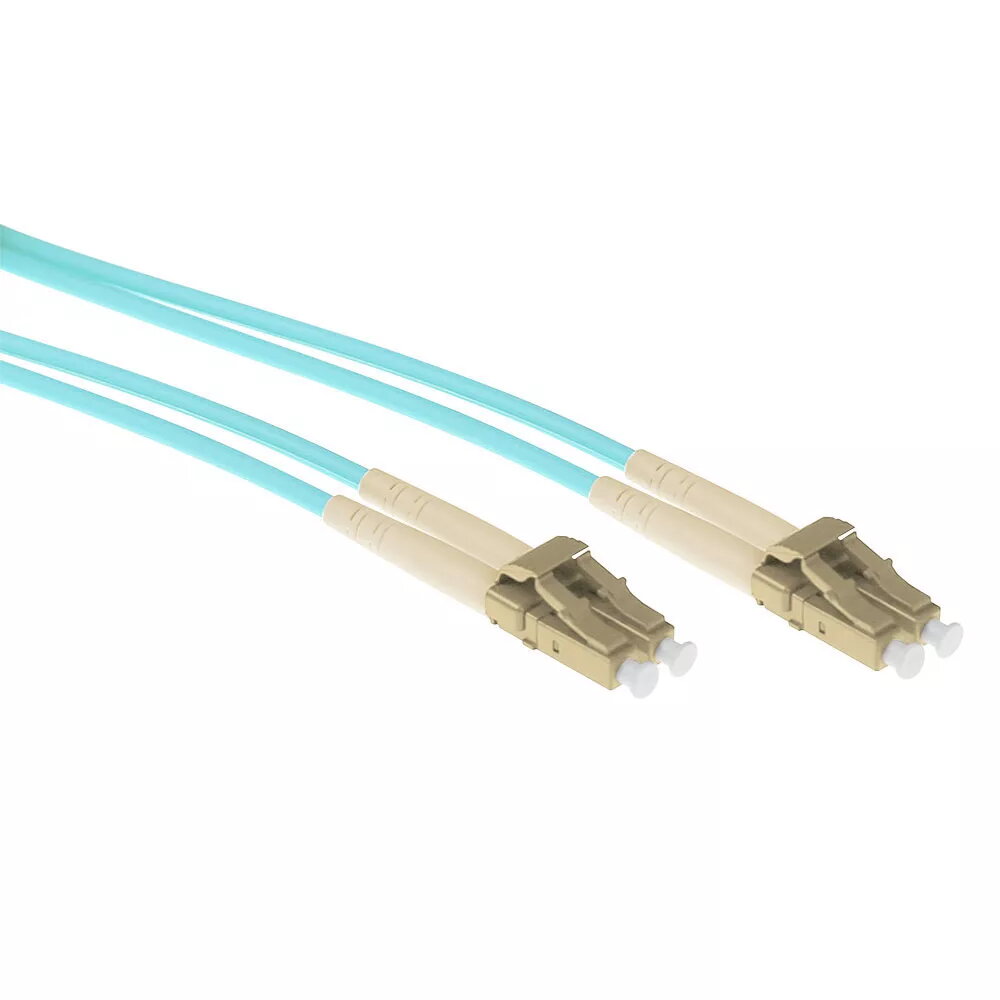

Fiber Patch Cable ACT 20 meter OM3 Photo 1

Fiber Patch Cable ACT 20 meter OM3 Photo 2

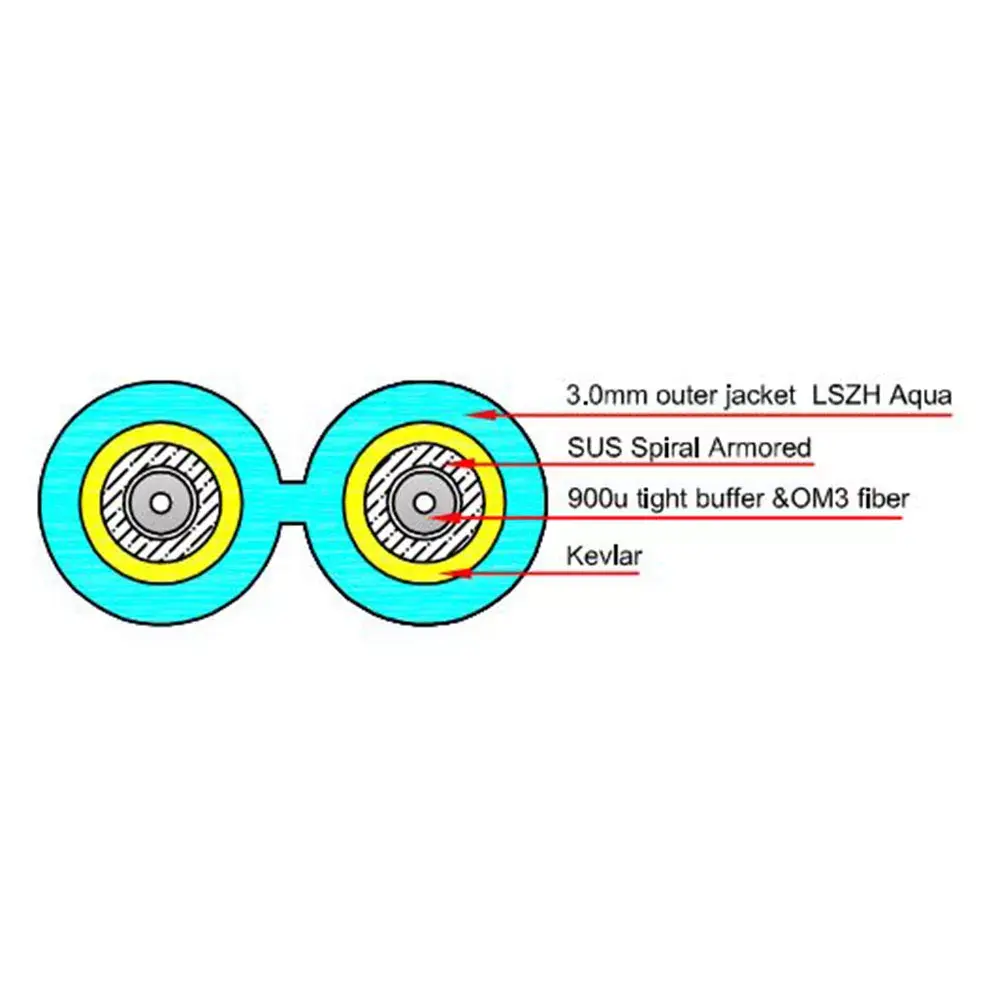

Fiber Patch Cable ACT 20 meter OM3 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 20 meter multimode 50/125 OM3 duplex armored fiber patch cable features two LC connectors on each end, ensuring a reliable and high-speed connection. With a core diameter of 50 µm, this full duplex cable is designed for optimal performance in data centers and network environments. Its armored design provides additional protection against physical damage, making it ideal for demanding installations.

Available for order: 16 pcs.

Warranty: 2 Years

SKU: 3299106

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

25.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

28.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

28.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT 20 meter multimode 50/125 OM3 duplex armored fiber patch cable is a full-duplex multimode link with LC connectors on both ends. Designed for data centers and network environments, it uses a 50 µm core OM3 fiber to support high-speed transmission. The cable's metal armor provides enhanced mechanical protection for installations exposed to harsh or industrial conditions.

Advantages

Armored construction offers superior resistance to crushing, rodent damage and abrasion compared with standard patchcords, while the OM3 50/125 multimode fiber supports high-bandwidth short-range links. Duplex LC terminations ensure easy plug-and-play connectivity in duplex-capable equipment. The 20 m length provides flexibility for routing between racks or across equipment bays.

Suitable for

Data center rack-to-rack connections
Industrial network installations
Offshore or outdoor-protected fiber runs (within protective conduits)
High-density patch panels and duplex transceivers

Key specifications

Brand: ACT
MPN: RL3420
EAN: 8716065393958
Fiber type: Multimode OM3, 50/125 µm
Configuration: Duplex
Connectors: LC to LC
Length: 20 m
Armoring: Metal armored jacket for mechanical protection

How to use

Verify compatibility of LC duplex ports on equipment before installation. Route the armored patch cable along cable trays or conduits, avoiding sharp bends beyond the specified minimum bend radius for OM3 multimode fiber. Insert LC connectors into corresponding duplex LC ports until they click; ensure proper polarity for transmit and receive channels. For best performance, keep connectors clean and protected when not in use.

Usage recommendations

Use the armored patch cable where additional mechanical protection is required; it is not intended for continuous outdoor exposure without proper conduit or protective routing. Clean connectors with approved fiber cleaning tools and inspect terminations periodically to maintain link performance.

All features

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -25 - 80
Cable length: How long the cable is.: 20 m
Product colour: The colour e.g. red, blue, green, black, white.: Aqua colour
Connector 1: This is the first connector in the device.: 2x LC
Connector 2: This is the second connector in the device.: 2x LC
Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.: 3 mm
Insertion loss:: 0.15 dB
Fiber mode structure:: Multi-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.: 50 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.: Male
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.: Male
Harmonized System (HS) code:: 85447000
Fibre optic type: The standardised properties of the fiber optic cable.: OM3
Return loss:: 45 dB
