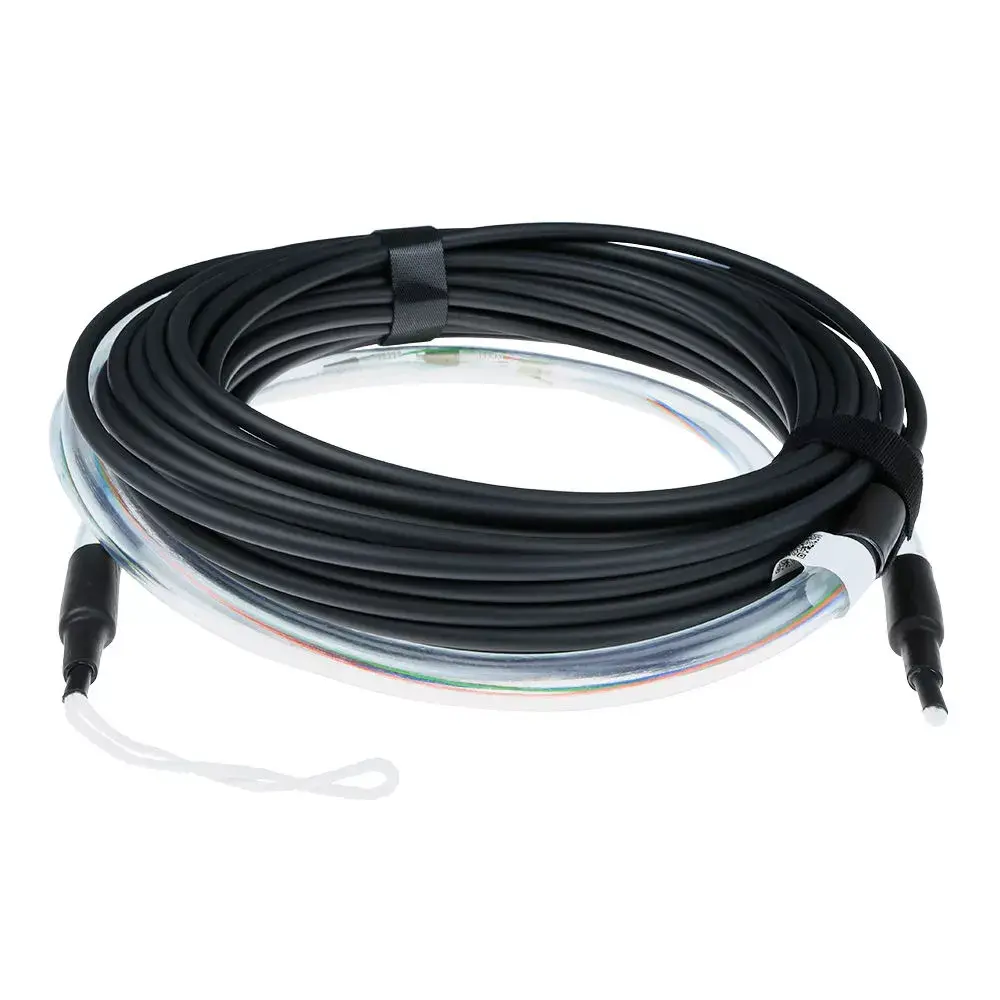

ACT 200 meter Multimode 50/125 OM3 indoor/outdoor cable 12 fibers LC connectors

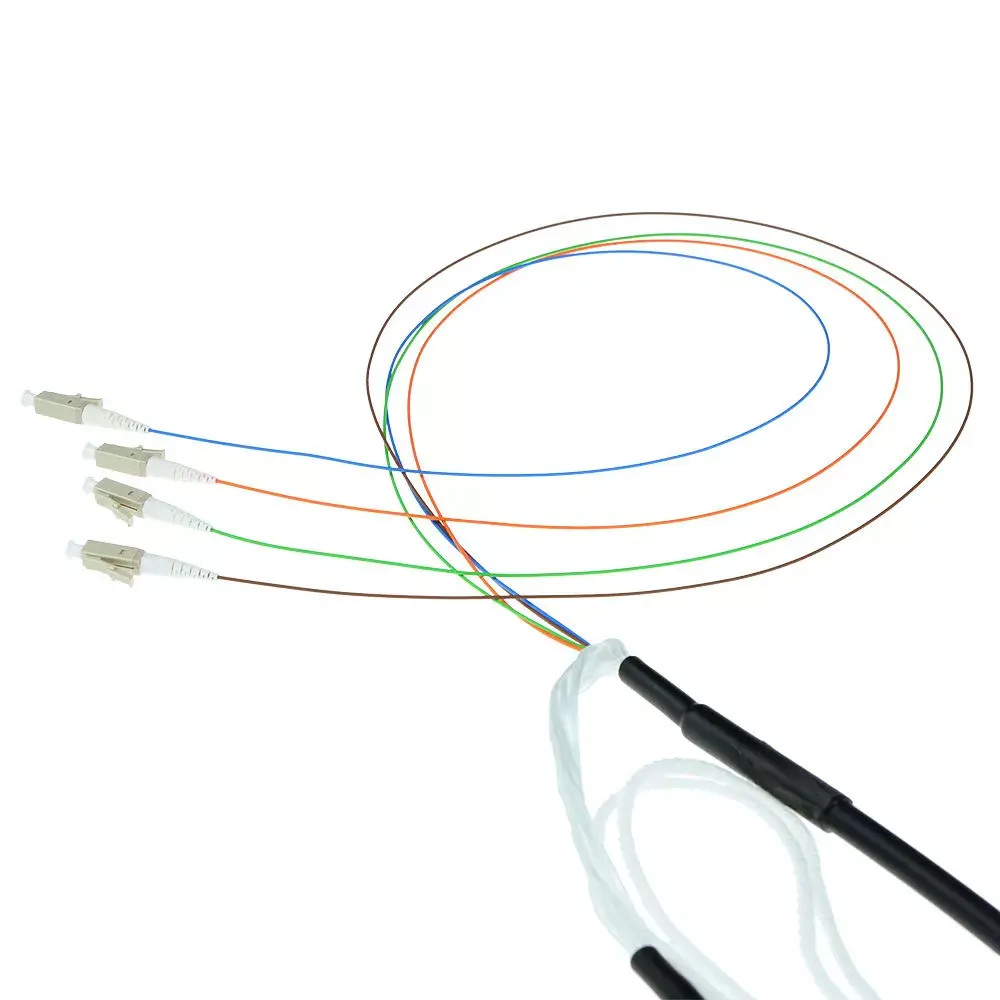

The ACT 200 meter Multimode 50/125 OM3 indoor/outdoor cable with 12 LC connectors is a ready-to-use pre-terminated fiber optic cable for connecting rooms, floors or buildings. It is designed for both indoor and outdoor use and combines a multimode OM3 fiber core (50/125 µm) with LC connector terminations and an individually tested cable report.

Advantages

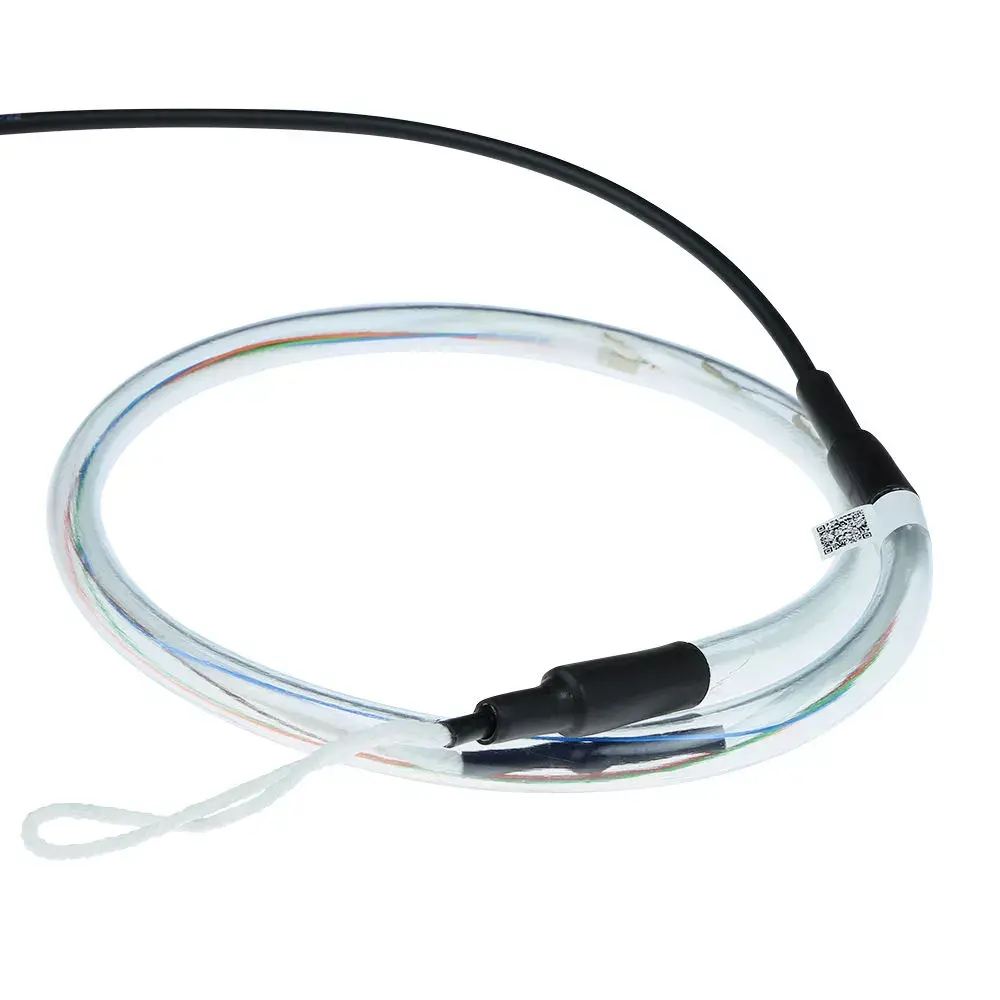

Pre-terminated ACT cables eliminate the need to terminate connectors on site and remove the investment in specialized tools and test equipment. Each cable is individually tested after production and supplied with a test report. The cable offers low attenuation (average 0.10 dB, maximum 0.15 dB) for reliable optical performance and future-proof optical budgets. Robust mechanical construction, a transparent protective tube around the connectors and fanouts, a drawbar eye and a pull strength up to 350 N simplify installation and protect sensitive parts while the compact 18 mm protective hose allows easy routing through conduits.

Suitable for

• Connecting two buildings on a site
• Installing fiber between different floors
• Linking different rooms within a building
• Indoor and outdoor horizontal and vertical fiber runs

Key specifications

• Length: 200 meter
• Fiber type: Multimode OM3, 50/125 µm
• Number of fibers: 12
• Connector type: LC
• Average attenuation: 0.10 dB
• Maximum attenuation: 0.15 dB
• Pull strength: up to 350 N
• Protective hose diameter: 18 mm
• MPN: RL4620
• EAN: 8716065512007
• CPR rating: Dca (Euroclass)

How to use

Uncoil the pre-terminated ACT cable and route it through the planned pathway. The connectors and fanout sections are protected by transparent tubes on both ends; remove only the outer protective cover where the connector will be mated. Do not expose the fiber endfaces to dust or touch them; clean endfaces with appropriate fiber cleaning tools before making connections. Secure the cable using the drawbar eye for pulling loads up to 350 N and fasten the cable according to building or site cabling guidelines. Verify connections using the supplied test report and perform any site acceptance tests if required.

Usage recommendations

Store and handle the cable in a clean environment, avoid bending below the manufacturer’s minimum bend radius, and always clean connector endfaces prior to mating. Use the cable for both indoor and outdoor installations where a compact, pre-terminated multimode OM3 solution with LC connectors is required.
