Fiber Patch Cable Multimode 50/125 OM4 ACT

Name: Fiber Patch Cable Multimode 50/125 RL7765
Brand: ACT
SKU: 1041232
Price: 132.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

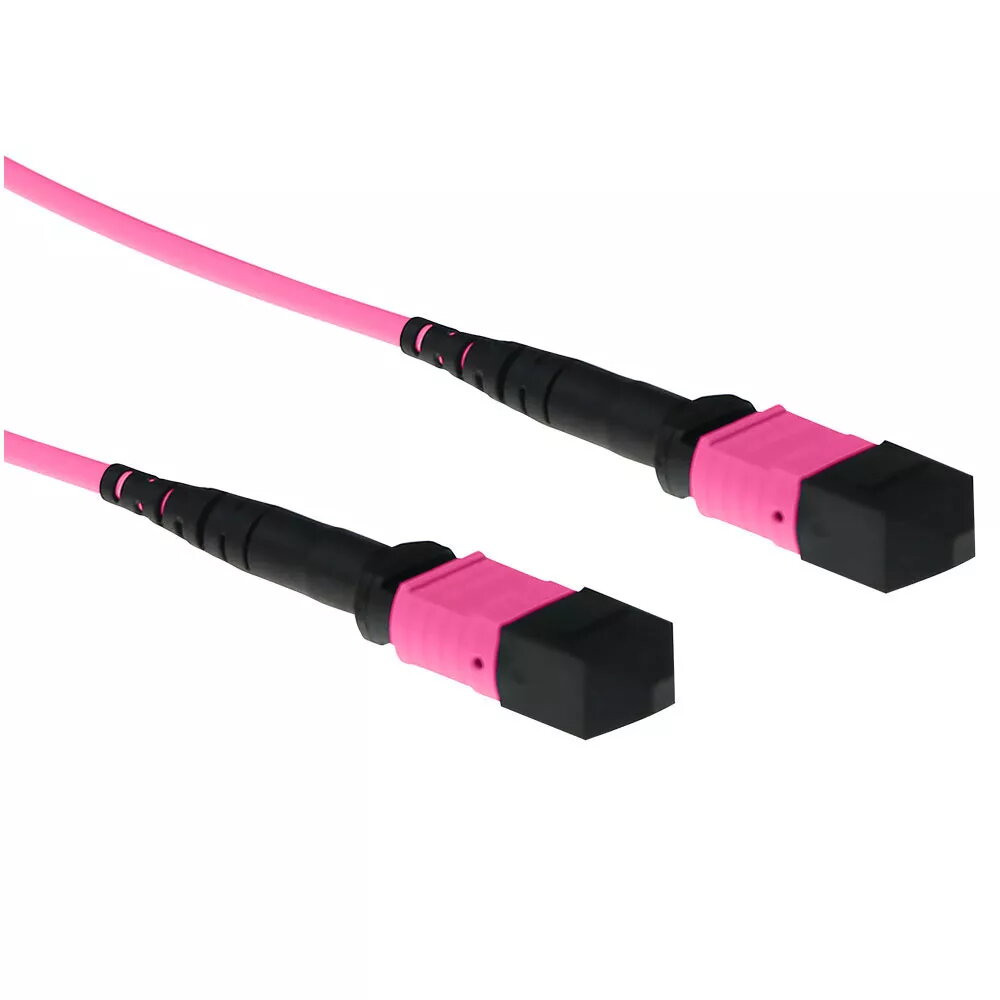

Fiber Patch Cable Multimode 50/125 OM4 ACT 5m Polarity B

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 5 meter Multimode 50/125 OM4 fiber patch cable features MTP female connectors, ensuring high-speed data transmission. With a core diameter of 50 µm, this cable is designed for optimal performance in data centers and high-bandwidth applications. Its polarity B configuration allows for easy integration into existing systems, making it a reliable choice for network installations.

Available for order: 10 pcs.

Warranty: 2 Years

SKU: 1041232

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

17.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT Fiber Patch Cable Multimode 50/125 OM4 5m Polarity B is a short-range multimode fiber assembly intended for high-density networking environments. It features OM4-grade 50/125 µm fiber for improved modal bandwidth and reduced attenuation compared with lower-grade multimode types. The cable is fitted with MTP female connectors and is configured in Polarity B to match systems that require cross-mating of fiber channels for correct channel alignment.

Advantages

This OM4 multimode cable provides enhanced bandwidth and lower insertion loss for short- to medium-distance links, supporting high-speed data center applications and enterprise networks. The MTP female connectors allow compact, high-fiber-count connections and facilitate rapid installation in patch panels and cassettes. Polarity B configuration simplifies integration into existing MPO/MTP wiring schemes that use reversed fiber order on one end.

Suitable for

Data center patching and interconnects
High-speed short-range links (10G/40G/100G within multimode reach)
Patching between MTP/MPO cassettes and network equipment
Enterprise backbone and server farm connectivity

Key specifications

Fiber type: Multimode OM4
Core/cladding diameter: 50/125 µm
Connector type: MTP female to MTP female
Polarity: B (reversed fiber order on one end)
Length: 5 meters
Typical application: Short- to medium-reach high-bandwidth links

How to use

Inspect both ends of the cable and the mating adapters for dust or damage before insertion. Align and insert the MTP female connectors into the corresponding MTP/MPO adapters or equipment ports until the connector latches. Confirm polarity B matching with the intended patching scheme to ensure correct channel mapping. Secure the cable using cable management in racks or trays to avoid excessive bending; maintain the minimum bend radius recommended for multimode fiber.

Usage recommendations

Use a fiber inspection microscope before connecting to active equipment and keep connectors capped when not in use. For optimal performance, avoid tight bends, maintain organized routing in patch panels, and follow standard multimode fiber handling procedures. Verify link performance after installation with appropriate optical test equipment.

All features

Operating temperature (T-T):: -20 - 70
Cable length:: 5 m
Product colour:: Violet
Connector 1:: MPO/MTP
Connector 2:: MPO/MTP
Cable diameter:: 3 mm
Insertion loss:: 0.2 dB
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender:: Female
Connector 2 gender:: Female
Quantity per pack:: 1 pc(s)
Harmonized System (HS) code:: 85447000
Fibre optic type:: OM4
Return loss:: 20 dB

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Fiber Patch Cable Multimode 50/125 OM4 ACT cost, and is it available for purchase?

The price is 132.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 10 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 14.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ACT products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ACT service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

Show all questions
