Multimode Patch Cable ACT 5m OM4

Name: Multimode Patch Cable ACT 5m RL7845
Brand: ACT
SKU: 1041264
Price: 115.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

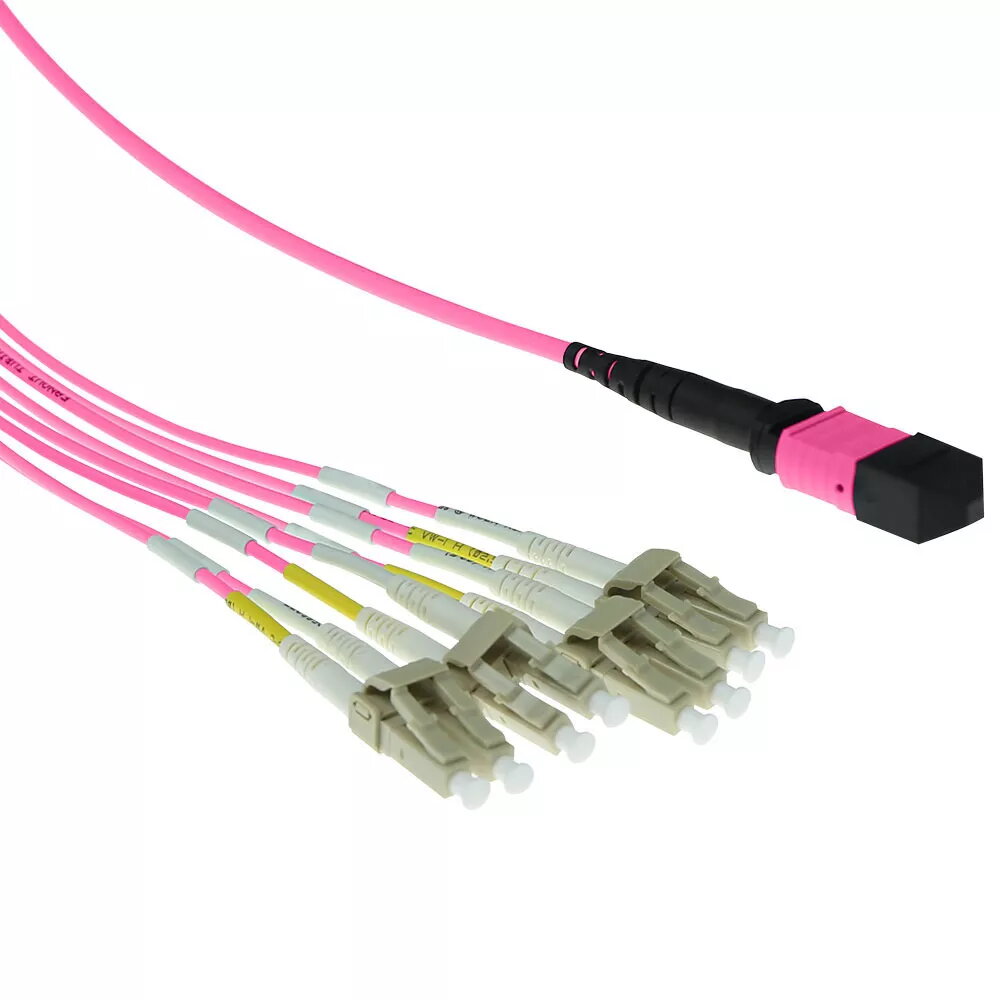

Multimode Patch Cable ACT 5m OM4 MTP to LC Duplex 8 Fibers

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 5 meter Multimode 50/125 OM4 fanout patch cable features 1 MTP female connector and 4 LC duplex connectors with 8 fibers. It is designed for high-speed data transmission and is ideal for data centers and high-performance networks. With a core diameter of 50 µm, this cable ensures low signal loss and high bandwidth, making it perfect for modern networking applications.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 1041264

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT 5m Multimode OM4 patch cable combines a single MTP female connector with four LC duplex connectors, carrying 8 fibers in a compact 3 mm cable. Designed for high-speed data transmission in data centers and high-performance networks, the cable uses 50/125 µm OM4 multimode fiber to support QSFP+ 40G and QSFP28 100G transceivers while keeping insertion loss low through MTP® US Conec connectors.

Advantages

Ultra-compact construction packs eight fibers into a 3 mm cable for space-efficient trunking and patching. The use of MTP® US Conec connectors provides consistently low loss and reliable optical performance. OM4 multimode fiber (50/125 µm) supports high bandwidth and is suited to 40G and 100G short-reach applications. The fanout design with one MTP and four LC duplex connectors simplifies deployment between MTP trunks and LC-based equipment.

Suitable for

Data center trunking and high-density patch panels
Connections between MTP backbone cables and LC-based transceivers or patching
Short-reach 40G and 100G links using QSFP+ and QSFP28 optics
High-performance networks requiring OM4 multimode fiber

Key specifications

Length: 5 m
Fiber type: Multimode OM4, 50/125 µm
Connectors: 1 x MTP female to 4 x LC duplex (total 8 fibers)
Cable diameter: 3 mm (8-fiber)
Compatible transceivers: QSFP+ (40G), QSFP28 (100G)
Brand: ACT, MPN: RL7845, EAN: 8716065029871

How to use

Route the 3 mm MTP trunk to the intended patching location and plug the MTP female connector into the corresponding MTP cassette, adapter or transceiver panel. Fan out the four LC duplex connectors and insert them into LC ports on switches, transceivers or patch panels. Ensure connector endfaces are clean before mating and follow standard handling practices to avoid bending the cable below its minimum bend radius.

Usage recommendations

Use with compatible MTP® US Conec ports and QSFP+/QSFP28 multimode transceivers. Clean connectors before installation and avoid tight bends; for reliable high-speed links, keep distances within OM4 multimode specifications for 40G/100G short-reach applications.

All features

Operating temperature (T-T):: -20 - 70
Cable length:: 5 m
Product colour:: Violet
Connector 1:: MTP
Connector 2:: 8x LC
Cable diameter:: 3 mm
Insertion loss:: 0.35 dB
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender:: Male
Connector 2 gender:: Female
Quantity per pack:: 1 pc(s)
Harmonized System (HS) code:: 85447000
Fibre optic type:: OM3
Return loss:: 20 dB

Instructions

mmo_60177033_1535629494_1052_16863.pdf

Description

Instructions

mmo_60177033_1535629494_1052_16863.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Multimode Patch Cable ACT 5m OM4 cost, and is it available for purchase?

The price is 115.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 4 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ACT products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ACT service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

Where can I download the instructions for Multimode Patch Cable ACT 5m OM4?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
