Fiber optic transceiver ACT TR0034

Name: Fiber optic transceiver module ACT TR0034
Brand: ACT
SKU: 4271001
Price: 62.49 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Fiber optic transceiver module ACT TR0034

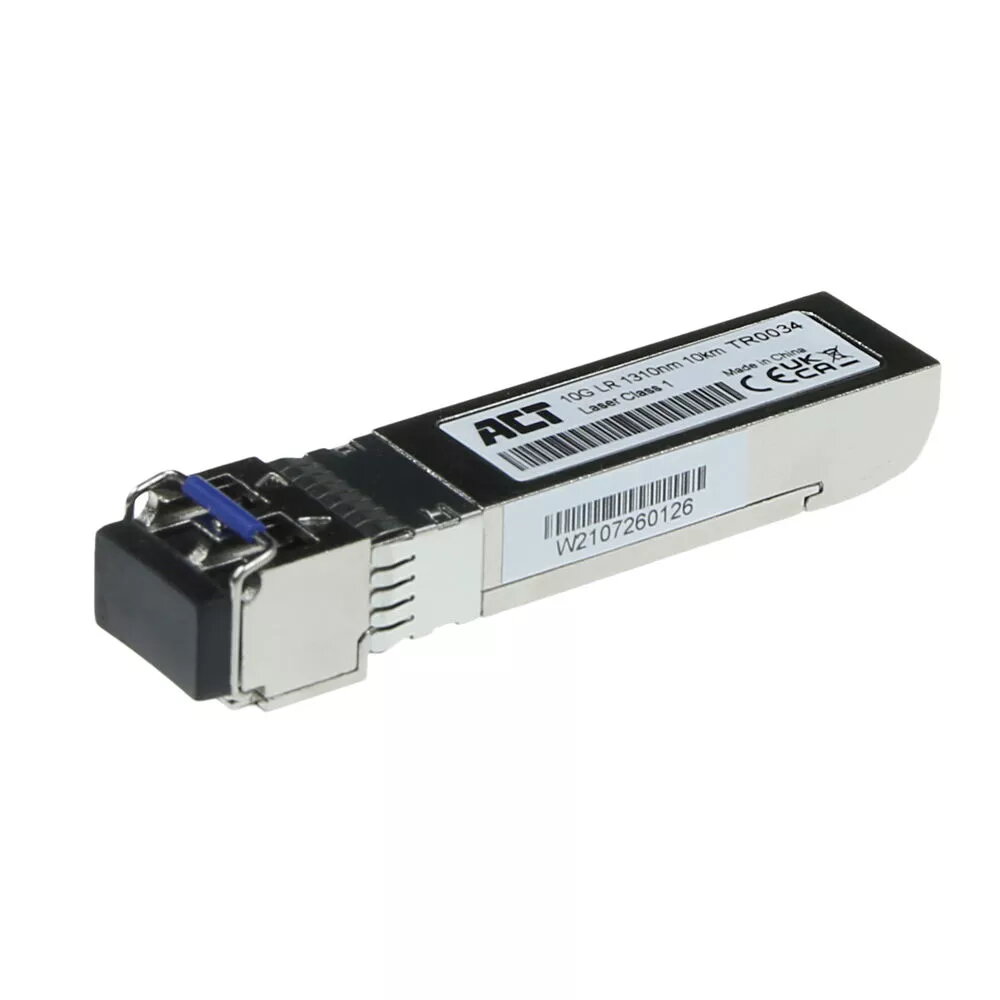

Fiber optic transceiver ACT TR0034 Photo 1

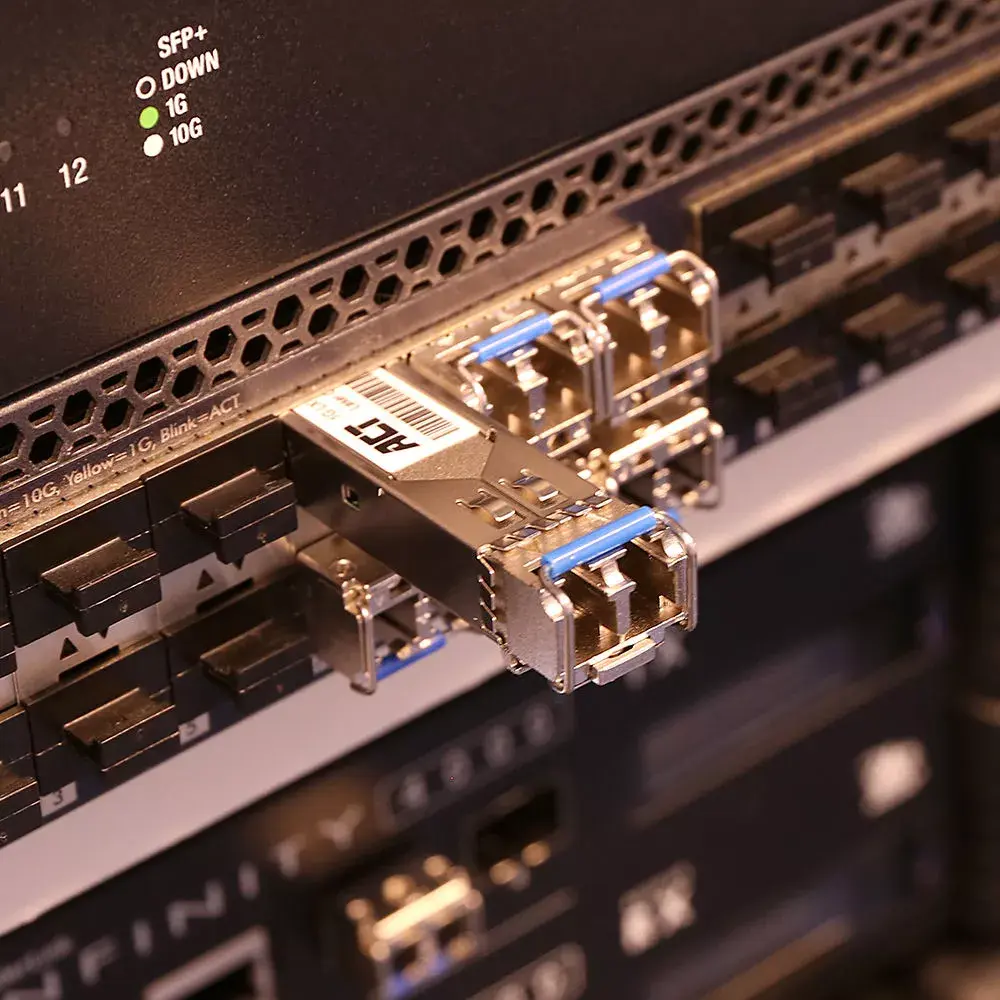

Fiber optic transceiver ACT TR0034 Photo 2

Fiber optic transceiver ACT TR0034 Photo 3

Short description

The ACT TR0034 is a high-performance SFP+ fiber optic transceiver module designed for data rates up to 10000 Mbit/s. Operating at a wavelength of 1310 nm, it ensures reliable data transmission over long distances. This module is compatible with various networking equipment, making it a versatile choice for enhancing network performance.

Warranty: 2 Years

SKU: 4271001

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT TR0034 is an SFP+ fiber optic transceiver module coded for AXM762 and designed for 10 Gbps links over singlemode fiber. It operates at 1310 nm wavelength, supports DDM for real-time diagnostic monitoring and is supplied with a 5-year warranty. The module is individually packaged and intended for use where brand-coded compatibility with Netgear equipment is required.

Advantages

The module supports 10 Gbps transmission on singlemode fiber and includes DDM (digital diagnostics monitoring) so switch management can read power, temperature and error data. ACT codes this model for guaranteed compatibility with Netgear equipment, each unit is individually packaged and backed by five years of warranty and technical support from ACT.

Suitable for

10 Gbps uplinks and server connections over singlemode fiber
Netgear switches and devices requiring AXM762-coded SFP+ modules
Environments where remote module monitoring (DDM) is needed
Installations that require individually packaged, warrantied transceivers

Key specifications

Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Fiber type: singlemode
Connector type: LC
Coding: AXM762 (Netgear compatibility)
DDM support: Yes
Warranty: 5 years

How to use

Insert the ACT TR0034 SFP+ module into a compatible SFP+ port on your switch, router or server until it clicks into place. Connect a singlemode LC fiber cable to the module; ensure the cable connectors are clean before mating. The switch can read DDM data from the module for diagnostics. For cleaning, use an appropriate LC cleaner such as the ACT One Click cleaner if contamination is suspected.

Usage recommendations

Prevent contamination by always using cables with clean connectors and store unused modules in their protective packaging. If cleaning is required, use a suitable LC fiber optic cleaner. For questions about brand coding or compatibility with other vendors, contact ACT technical support.

Specifications

Maximum data transfer rate:: 10000 Mbit/s
Maximum transfer distance:: 10000 m
Fiber optic connector:: LC

All features

Interface type:: SFP+
Maximum operating temperature:: 70 °C
SFP transceiver type:: Fiber optic
Single-mode fiber (SMF) supported:: Yes

Network

Maximum data transfer rate:: 10000 Mbit/s

Ports & interfaces

Fiber optic connector:: LC

Performance

Maximum transfer distance:: 10000 m
Wavelength:: 1310 nm

Features

Digital Diagnostics Monitoring (DDM):: Yes

Logistics data

Harmonized System (HS) code:: 85369010
