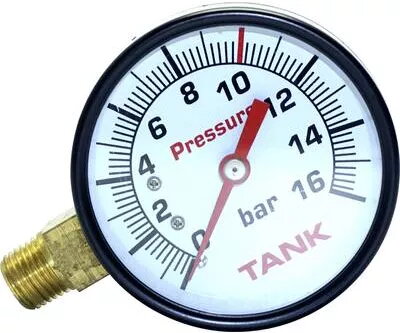

Mechanical pressure gauge Aerotec 9052070 with a 1/4" external thread is a compact instrument designed to measure and display system pressure in pneumatic and hydraulic installations. The gauge provides a direct analog reading via a dial, intended for integration into equipment where a 1/4" male thread connection is required. Its construction suits use on compressors, tanks and other industrial systems that need a threaded pressure fitting for monitoring operating pressure.
Advantages
The gauge offers simple, immediate pressure indication without the need for power, using a robust mechanical movement for reliable readings. Its 1/4" external thread enables straightforward installation into standard threaded ports. The compact design and durable housing make it suitable for confined mounting locations and continuous operation in typical workshop or industrial environments.
Suitable for
- Monitoring pressure in air compressors and pneumatic systems
- Pressure indication on pressure vessels and tanks
- Integration into hydraulic equipment with compatible thread
- General industrial and workshop pressure monitoring
Key specifications
- Connection type: 1/4" external (male) thread
- Movement: mechanical analog dial
- Mounting: direct threaded installation
- Housing: metal or metal-backed construction suitable for industrial use
- Display: circular dial for visual pressure reading
How to use
Before installation, verify that the thread size and pressure range of the gauge match the system requirements. Apply an appropriate thread sealant (for example PTFE tape or a compatible sealing compound) to the male thread, avoiding contamination of the pressure port. Screw the gauge into the threaded port by hand until seated, then tighten with a wrench at the hex portion to the recommended torque for a secure, leak-free fit. After installation, pressurize the system gradually and observe the dial to confirm correct operation. If the gauge is to be used in systems with pulsation or vibration, consider installing a snubber or dampener to protect the movement.
