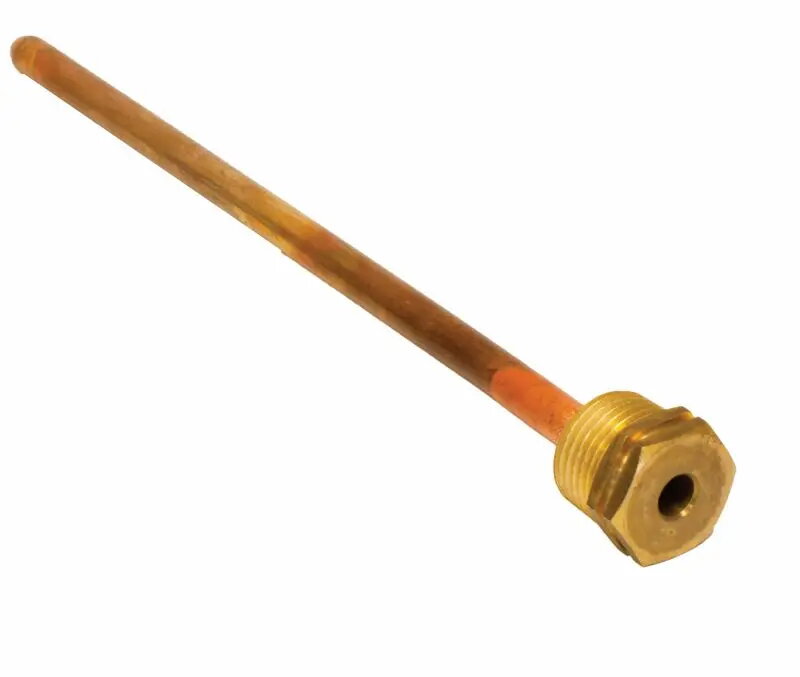

Sleeve / immersion sleeve Afriso 15x16 mm, length 100 mm, model 555034

Afriso immersion sleeve model 555034 is a dedicated insertion sleeve for installing temperature sensors or probes into pipes and vessels. With an insertion length of 100 mm and outer dimensions of 15x16 mm, this sleeve provides a sealed and stable mounting point that enables sensor replacement and maintenance without draining the system. The sleeve is designed for use in HVAC installations, heating circuits and industrial process lines where reliable sensor installation and isolation from the process medium are required.

Advantages

The immersion sleeve delivers a secure mechanical support and a leak-tight interface between the sensor and the process medium, reducing the need for system shutdown during maintenance. Its standardized dimensions simplify replacement of sensors and probes from different manufacturers. The 100 mm insertion depth ensures good thermal contact for accurate temperature measurement while minimizing flow disturbance in the pipe.

Suitable for

• Installation of temperature sensors and probes in HVAC systems
• Heating system sensor mounting and replacement
• Industrial process lines requiring isolated sensor insertion points

Key specifications

• Insertion length: 100 mm
• Outer dimensions: 15 x 16 mm
• Type: immersion sleeve for sensor/probe installation
• Function: provides sealed and stable mounting point for sensors

How to use

Drill or prepare an appropriate port on the pipe or vessel compatible with the sleeve outer dimensions and threading. Insert the immersion sleeve until the required insertion depth is reached and secure according to mounting guidelines for the pipe material, ensuring a tight seal. Slide the temperature sensor or probe into the sleeve so its sensing element aligns with the sleeve’s insertion length. Tighten any locking fittings or compression nuts to prevent movement and leakage. Follow local regulations and safety procedures during installation and ensure compatibility between sensor dimensions and the sleeve bore.

Usage recommendations

For reliable operation, select a sensor with appropriate sheath diameter to match the sleeve bore and verify the thermal response meets measurement requirements. Inspect sealing surfaces and threads periodically and replace the sleeve if corrosion or wear is observed. Avoid exposing the sleeve to aggressive chemicals or pressures beyond the system design.
