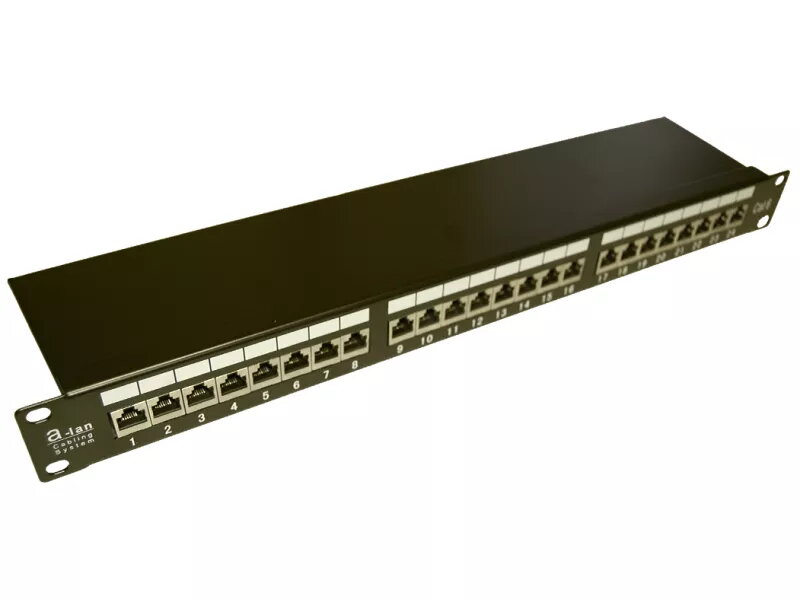

Patch panel Alantec PK010 1U, 24-port Gigabit Ethernet RJ-45, Cat6, black steel

Alantec PK010 1U patch panel provides 24 Gigabit Ethernet RJ-45 ports arranged in a standard 1U rack-mount housing. Designed for Category 6 structured cabling, the panel is built from black steel and intended to terminate and organize horizontal network cables in racks and cabinets. The unit supports shielded cabling environments where protection from electromagnetic interference is required, and it offers a compact, serviceable point for connecting workstations, switches and other network equipment.

Advantages

The panel's 24-port layout and standard 1U form factor maximize rack density while maintaining easy access to each RJ-45 connector. Constructed from durable black steel, the unit is suitable for professional installation in server rooms and telecommunications closets. Compatibility with Cat6 cabling ensures support for Gigabit Ethernet speeds and reliable data transmission, and the design accommodates shielded channel topologies to reduce the impact of external electromagnetic interference.

Suitable for

• Office local area networks requiring centralized cable termination
• Server rooms and data closets where high-density rack installation is needed
• Structured cabling projects using Cat6 cabling and shielded channel components
• Connections between switches, routers and networked devices in enterprise and SMB environments

Key specifications

• Form factor: 1U rack-mount panel
• Number of ports: 24 RJ-45 ports
• Cabling standard: Category 6 (Cat6)
• Data rate: Gigabit Ethernet capable
• Material and finish: steel housing with black finish
• Connector type: 8P8C (RJ-45)
• Designed for shielded (STP) channel use to mitigate electromagnetic interference

How to use

Mount the patch panel into a standard 19-inch rack occupying a single unit of rack height. Terminate each horizontal Cat6 cable on the rear IDC or punch-down points corresponding to the front RJ-45 ports, following the chosen wiring scheme (T568A or T568B) and any shielding grounding requirements. Route and secure cables to minimize stress and maintain bend radius; label ports as required to reflect network topology and simplify future maintenance. Once terminated, connect patch cords from the front RJ-45 ports to switches or other active equipment.

Usage recommendations

Use this panel as part of a complete shielded cabling channel: ensure proper grounding of shielded cables and the rack, maintain consistent wiring standards across the installation, and avoid sharp bends or cable overcrowding behind the panel. Regularly inspect terminations and labels to preserve reliable Gigabit Ethernet performance.
