header-product Managed Switch Alcatel-Lucent OmniSwitch 6560
4,926.49 €

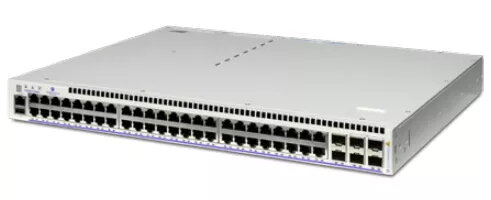

Managed Switch Alcatel-Lucent OmniSwitch 6560

Managed Switch Alcatel-Lucent OmniSwitch 6560 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch Alcatel-Lucent OmniSwitch 6560

{{email}}
You keep track of price changes

Managed Switch Alcatel-Lucent OmniSwitch 6560

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Alcatel-Lucent OmniSwitch 6560 is a managed L2+/L3 switch with 48 Gigabit Ethernet ports, offering a switching capacity of 216 Gbit/s and a MAC address table of 16,000 entries. It supports Power over Ethernet (PoE) and various networking standards, making it ideal for modern network environments. Its 1U rack-mountable design ensures efficient space utilization.
Available for order: 50 pcs.
Warranty: 2 Years
SKU: 2034844
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 5.84 € (Weight: 6.22 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 171.44 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Managed Switch Alcatel-Lucent OmniSwitch 6560 is a rack-mountable, stackable multi-gigabit Ethernet access switch designed for campus and enterprise networks. It provides 48 Gigabit Ethernet RJ-45 ports, 10 GigE uplinks and support for 20 GigE stacking, delivering a switching capacity of 216 Gbit/s and a MAC address table of 16,000 entries. The switch supports Power over Ethernet (PoE) and a broad set of IEEE networking standards, and runs the Alcatel-Lucent Operating System (AOS) for manageable, secure and energy-efficient operation.

Advantages

The OmniSwitch 6560 combines multi-gigabit access ports with 10G uplink and high-capacity stacking to accommodate high-performance Wi-Fi and dense device deployments. Its 1U rack-mountable form factor and optimized power usage enable efficient use of rack space and reduced operational costs. Use of AOS delivers proven management, security and high availability features suitable for enterprise edge deployments.

Suitable for

  • Campus and enterprise access layer deployments
  • High-density WLAN access points (IEEE 802.11ac/ax) and multi-gigabit client devices
  • PoE-powered devices such as IP phones, cameras and wireless access points
  • Environments requiring 10G uplinks and stacked switch scalability

Key specifications

  • Ports: 48 x Gigabit Ethernet (10/100/1000) RJ-45
  • Uplinks/Stacking: 10 GigE uplinks, 20 GigE stacking support
  • Switching capacity: 216 Gbit/s
  • MAC address table: 16,000 entries
  • Switch type: Managed (L2+/L3 capabilities)
  • Power over Ethernet: Supported (IEEE 802.3af/at/bt)
  • Networking standards: IEEE 802.1Q, 802.1x, 802.1p, 802.1ad, 802.3az, 802.3bz, 802.3ae, 802.3ad, 802.3x and others
  • Form factor: 1U rack-mountable
  • Weight: 4.68 kg
  • Color: Stainless steel

How to use

Install the OmniSwitch 6560 in a standard 19-inch rack using the included mounting brackets and secure appropriate power and network cabling. Configure basic switching, VLANs, PoE settings and uplink/stacking links via the Alcatel-Lucent Operating System (AOS) management interface — using CLI, web GUI or network management tools supported by AOS. Connect access points, endpoints and uplink links according to your network design and verify port status and PoE allocation after initial setup.

Usage recommendations

For optimal performance, use Cat6a or better cabling for multi-gigabit links and ensure firmware is updated to the latest AOS release. Plan PoE budget per port when deploying power-hungry devices and design stacking and uplink topologies to provide redundancy and required throughput.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Switch type:
Managed
Weight:
4.68 kg
Basic switching RJ-45 Ethernet ports quantity:
48
10G support:
Yes
Networking standards:
IEEE 802.1w, IEEE 802.3i, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3u, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1AE, IEEE 802.3z, IEEE 802.3x
Product colour:
Stainless steel
All features

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
48
SFP+ module slots quantity:
6

Management features

Switch layer:
L2+/L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
ARP inspection:
Yes
Cloud-managed:
Yes

Packaging content

Cables included:
AC
User guide:
Yes
Rack mount kit:
Yes

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
0 - 45
Heat dissipation:
355 BTU/h

Power

Power source:
AC
Power consumption (max):
104 W
Power supply included:
Yes

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Stainless steel
Stackable:
Yes
Number of fans:
2 fan(s)

Weight & dimensions

Weight:
4.68 kg
Height:
44 mm
Width:
440 mm
Depth:
350 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet plus (PoE+) ports quantity:
48
Total Power over Ethernet (PoE) budget:
920 W

Performance

Internal memory:
2048 MB
Mean time between failures (MTBF):
339000 h
Flash memory:
1000 MB
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.
54 dB

Data transmission

MAC address table:
16000 entries
Switching capacity:
216 Gbit/s
Jumbo frames support:
Yes
Throughput:
160.7 Mpps
Static route:
Yes

Network

Networking standards:
IEEE 802.1w, IEEE 802.3i, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3u, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1AE, IEEE 802.3z, IEEE 802.3x
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Rate limiting:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4000
Spanning tree protocol:
Yes
Head-of-line (HOL) blocking:
Yes
VLAN support:
Yes
10G support:
Yes
Auto-sensing:
Yes
Auto-negotiation:
Yes
Policy-based routing:
Yes
Virtual LAN features:
Tagged VLAN, Stacked VLAN

Multicast features

Multicast support:
Yes

Security

Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Authentication type:
RADIUS
Authentication:
Web-based authentication, MAC-based authentication
Queue scheduling algorithms:
Weighted Round Robin (WRR), Strict Priority Queue (SPQ)
DHCP features:
DHCP snooping, DHCP server, DHCP relay, DHCP client, DHCP Option 82
