header-product Managed Switch Alcatel-Lucent OmniSwitch 6900 L2/L3 48 SFP+ 1U Grey
25,757.99 €

Managed Switch Alcatel-Lucent OmniSwitch 6900 L2/L3 48 SFP+ 1U Grey

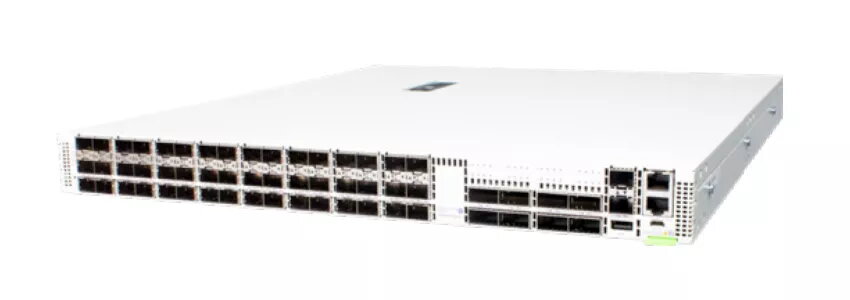

Managed Switch Alcatel-Lucent OmniSwitch 6900 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch Alcatel-Lucent OmniSwitch 6900 L2/L3 48 SFP+ 1U Grey

{{email}}
You keep track of price changes

Managed Switch Alcatel-Lucent OmniSwitch 6900 L2/L3 48 SFP+ 1U Grey

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Alcatel-Lucent OmniSwitch 6900 is a managed L2/L3 switch designed for high-performance networking. It features 48 SFP+ ports, a switching capacity of 2160 Gbit/s, and supports various IEEE networking standards. Its 1U rack-mountable form factor makes it suitable for data centers and enterprise networks.
Available for order: 12 pcs.
Warranty: 2 Years
SKU: 6772184
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 11.71 € (Weight: 14.60 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 896.38 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Alcatel-Lucent OmniSwitch 6900 L2/L3 48 SFP+ 1U is a managed, high-density switch engineered for data center and enterprise campus environments. It provides 48 SFP+ ports in a 1U rack-mountable chassis and delivers a switching capacity of 2160 Gbit/s with low latency performance. The platform supports a broad set of IEEE networking standards and routing capabilities, allowing deployment as a top-of-rack (ToR), spine, core or aggregation switch in virtualized and physical networks. Designed for software-defined operations, the OmniSwitch 6900 supports programmable interfaces and protocols for integration into automated or overlay network architectures.

Advantages

The OmniSwitch 6900 combines high port density and compact 1U form factor to maximize rack space efficiency while supporting multi-rate SFP+ connectivity for 1/10/25 Gbit use cases. Its L2 and L3 feature set, along with support for APIs and modern SDN fabrics, enables flexible deployment scenarios and centralized control. The model is optimized for energy efficiency and low power consumption, and specific variants include advanced security options such as MACsec for encrypted links in mission-critical networks.

Suitable for

  • Data center top-of-rack (ToR) and spine switching
  • Core and aggregation layers in enterprise campus networks
  • High-performance virtualized and software-defined network fabrics
  • Encrypted and mission-critical communication links (where MACsec is required)

Key specifications

  • Port count: 48 SFP+ ports supporting multi-rate SFP modules (1/10/25 Gbit where supported)
  • Switching capacity: 2160 Gbit/s
  • Form factor: 1U rack-mountable chassis
  • Layer support: Layer 2 and Layer 3 switching and routing capabilities
  • Latency: engineered for extremely low-latency forwarding suitable for DC fabrics
  • Software: support for programmable APIs and SDN integration
  • Security: MACsec supported on specific models for link encryption
  • Power and efficiency: optimized for low power consumption in high-density deployments

How to use

Install the OmniSwitch 6900 into a standard 19-inch rack using the included mounting hardware and connect the front-panel SFP+ ports to transceivers appropriate for the desired link speed and fiber/copper medium. Configure basic management access via the console, SSH or web interface, then apply IP addressing and routing or switching profiles according to your network design. When deploying in redundant or virtual chassis topologies, follow vendor procedures to enable virtualization features and API access for automation. Ensure firmware is updated to the recommended release before placing the switch into production.

Usage recommendations

Use vendor-approved SFP/SFP+ modules and transceivers to ensure compatibility and full performance. For data center roles, position the device as ToR or spine according to capacity and uplink requirements, and consider enabling MACsec on links carrying sensitive traffic. Monitor temperature and power metrics when populating all ports at high speeds, and schedule firmware and configuration backups as part of routine maintenance.

Specifications

10G support:
Yes
Switch type:
Managed
Networking standards:
IEEE 802.3ak, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ba, IEEE 802.3az, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D
Product colour:
Grey
All features

Management features

MIB support:
MIB, MIB-II
Switch layer:
L2/L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-10 - 70
Operating temperature (T-T):
0 - 45
Storage relative humidity (H-H):
5 - 95

Power

Power source:
AC
Redundant power supply (RPS) support:
Yes

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Grey
Stackable:
Yes

Protocols

Management protocols:
SNMPv1/2/3, Telnet, SSH
Supported network protocols:
IPv4/IPv6

Weight & dimensions

Height:
44 mm
Width:
443 mm
Depth:
473.3 mm

Network

Networking standards:
IEEE 802.3ak, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ba, IEEE 802.3az, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
IP routing:
Yes
Spanning tree protocol:
Yes
Head-of-line (HOL) blocking:
Yes
VLAN support:
Yes
10G support:
Yes
Copper ethernet cabling technology:
10GBASE-T, 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-sensing:
Yes

Performance

Internal memory:
8000 MB
Flash memory:
32000 MB

Data transmission

Switching capacity:
2160 Gbit/s
Jumbo frames support:
Yes
Forwarding rate:
1607 Mpps

Ports & interfaces

USB 2.0 ports quantity:
1
Installed SFP+ modules quantity:
48
QSFP28 ports quantity:
6

Security

Security algorithms:
SSH, MD5, 802.1x RADIUS
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
DHCP features:
DHCP server, DHCP client

Multicast features

Multicast support:
Yes
