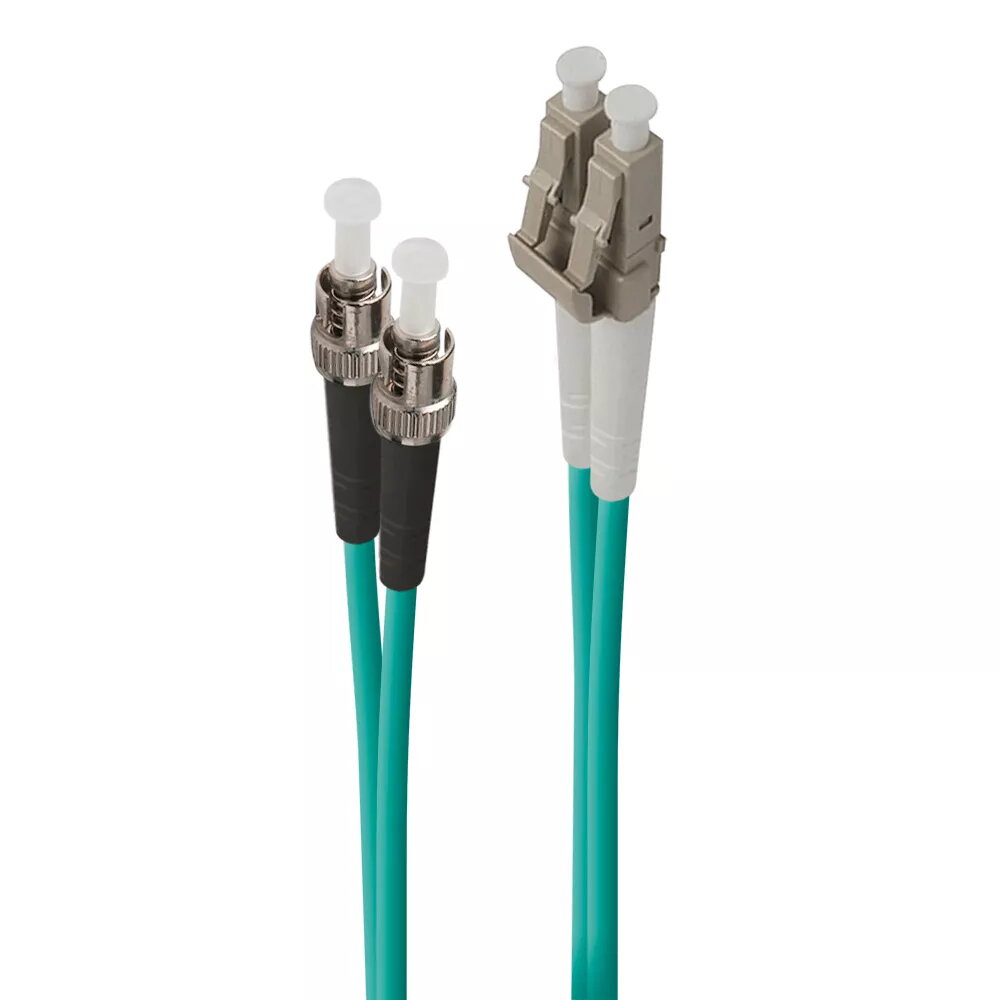

Fibre Cable ALOGIC 1m LC-ST 40G/100G Multi Mode Duplex LSZH 50/125 OM4

The ALOGIC 1m LC-ST 40G/100G Multi Mode Duplex LSZH 50/125 OM4 fibre cable is designed for high-speed data transmission in data centres and network installations. With a 50 µm core and OM4 classification, the cable supports 40G and 100G applications while remaining backward compatible with OM3 and OM2 infrastructures. It features LC and ST connectors and an LSZH jacket to reduce smoke and toxic emissions in indoor environments. Each cable is individually tested and supplied with performance reports.

Advantages

This OM4 duplex fibre cable supports very high transfer rates up to 40G and 100G and is backward compatible with OM3 and OM2. The LSZH jacket provides safer indoor use by limiting smoke and halogen emissions. Individual performance testing with supplied reports ensures consistent quality and reliability. The combination of LC and ST connectors offers installation flexibility across different network equipment.

Suitable for

• Data centre backbone and server interconnects
• High-speed switch-to-switch links (40G/100G)
• Short-reach multimode fibre runs in enterprise networks
• Indoor installations requiring low-smoke, zero-halogen cabling

Key specifications

• Model: ALOGIC LCST-01-OM4
• Length: 1 m
• Fiber type: Multimode OM4, 50/125 µm
• Connector ends: LC to ST duplex
• Performance: Supports 40G and 100G applications; backward compatible with OM3 and OM2
• Jacket: LSZH (Low Smoke Zero Halogen)
• Testing: Individually tested; performance report included
• EAN: 9350784020642

How to use

Inspect connectors for cleanliness before insertion and use appropriate fibre cleaning tools if required. Plug the LC connector into the LC port and the ST connector into the matching ST port, ensuring correct alignment and secure connection. Route the cable to avoid sharp bends and maintain recommended bend radii for multimode fibre. Verify link performance after installation using suitable diagnostic equipment and refer to the supplied performance report for baseline values.

Usage recommendations

For optimal performance, avoid excessive bending and physical stress on the cable, ensure connectors are clean prior to mating, and use in indoor environments where LSZH properties are required. Compare the supplied performance report to measured values during commissioning to confirm link performance.
