AMUE SPA Bathtub AMOG-1388 210x210 cm — corner spa bathtub with whirlpool functions

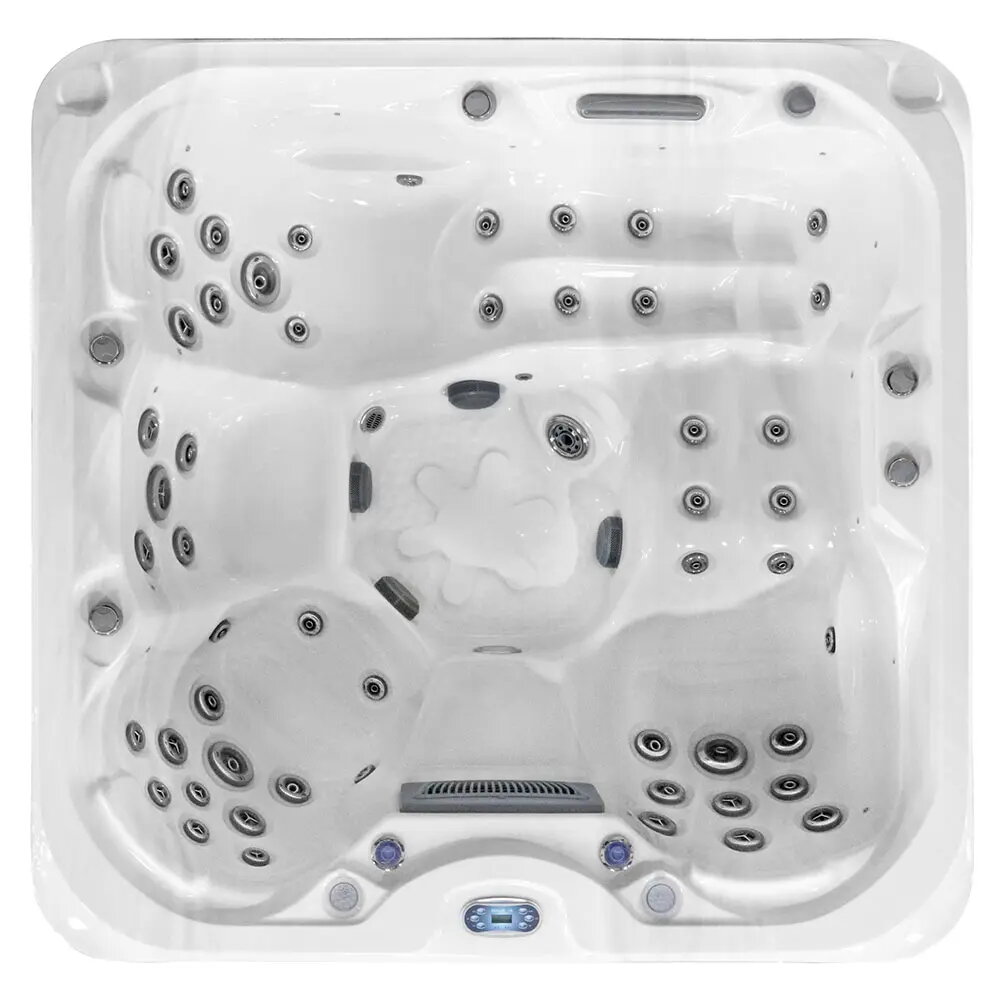

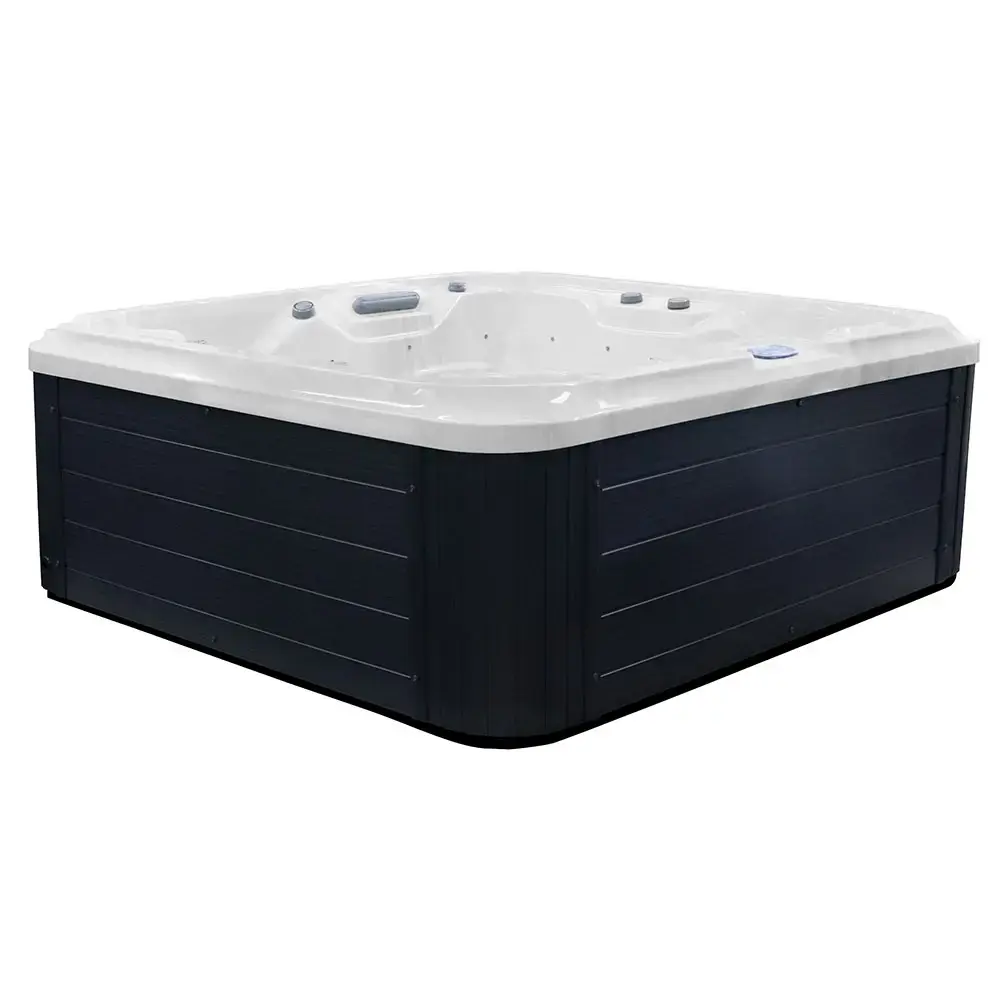

AMUE SPA Bathtub AMOG-1388 210x210 cm is a corner spa bathtub designed for home relaxation and hydrotherapy. The large 210 x 210 x 80 cm shell accommodates four seats (two sitting, two lying) and integrates whirlpool and aeration systems for targeted massage. The bathtub is finished with Aristech USA acrylic and includes Balboa controls and a 3 kW Balboa heater.

Advantages

The bathtub uses 100% Aristech USA acrylic with increased thickness for enhanced scratch resistance and long-term color stability. Jets are embedded flush with the acrylic surface so the user lies on the acrylic rather than directly on the nozzles. The stainless steel subframe provides durable structural support, and full thermal insulation of the shell reduces heat loss. Integrated ozone sterilization and optional UV lamp capability allow extended water cleanliness with reduced chemical use.

Suitable for

• Home spa and hydrotherapy installations
• Large bathroom corner installations
• Family or small-group relaxation (up to 4 users)
• Therapeutic massage and circulation improvement

Key specifications

• Model: AMOG-1388
• External dimensions: 210 x 210 x 80 cm
• Seats: 4 (2 sitting, 2 lying)
• Coating: Aristech USA acrylic (100% acrylic)
• Supply voltage: 380–400 V / 50 Hz
• Pumps: total 4 pcs (two 3 HP / 2.25 kW water pumps, one 0.35 HP / 0.25 kW circulating pump, one 0.55 HP / 0.4 kW air pump)
• Total power: approx. 8.2 kW
• Nozzles: 61 pcs total (27 water jets 2.5" — 5 rotating; 21 water jets 3.5" — 13 rotating; 5 water jets 5" — 2 rotating; 8 air nozzles 1.5")
• Water heater: 3 kW (Balboa)
• Control panel: Balboa TP-600 or VL-801D
• Spa lighting and effects: LED spa light (7 colors), 16 fiber optics (7 colors), 2 top LED lights (7 colors), 2 illuminated water columns, 1 illuminated waterfall, illuminated corners
• Ozone generator: yes
• Filters: 2 cartridge filters
• Construction: stainless steel frame; stainless steel nozzles; nozzles parallel to acrylic

How to use

Install the AMOG-1388 in a suitably prepared corner with access to a 380–400 V / 50 Hz power supply and a proper drainage system. Fill the bathtub, switch on the Balboa control panel and set desired pump and heater functions. Use the aeration knobs and adjustable jet controls to select which jets operate and the massage intensity; many jets can be switched off individually. The ozone generator can be activated for water sterilization; if a UV lamp is installed, run it according to manufacturer instructions.

Usage recommendations

For stable and safe operation provide a solid supporting base due to the combined weight of the tub, water and users. Closeable ball valves near the circulation pump and heater allow component replacement without draining the entire tub. Regularly clean cartridge filters and follow Balboa control and heater maintenance schedules; if using ozone and UV sterilization, monitor water quality periodically and service sterilization components per their manuals.
