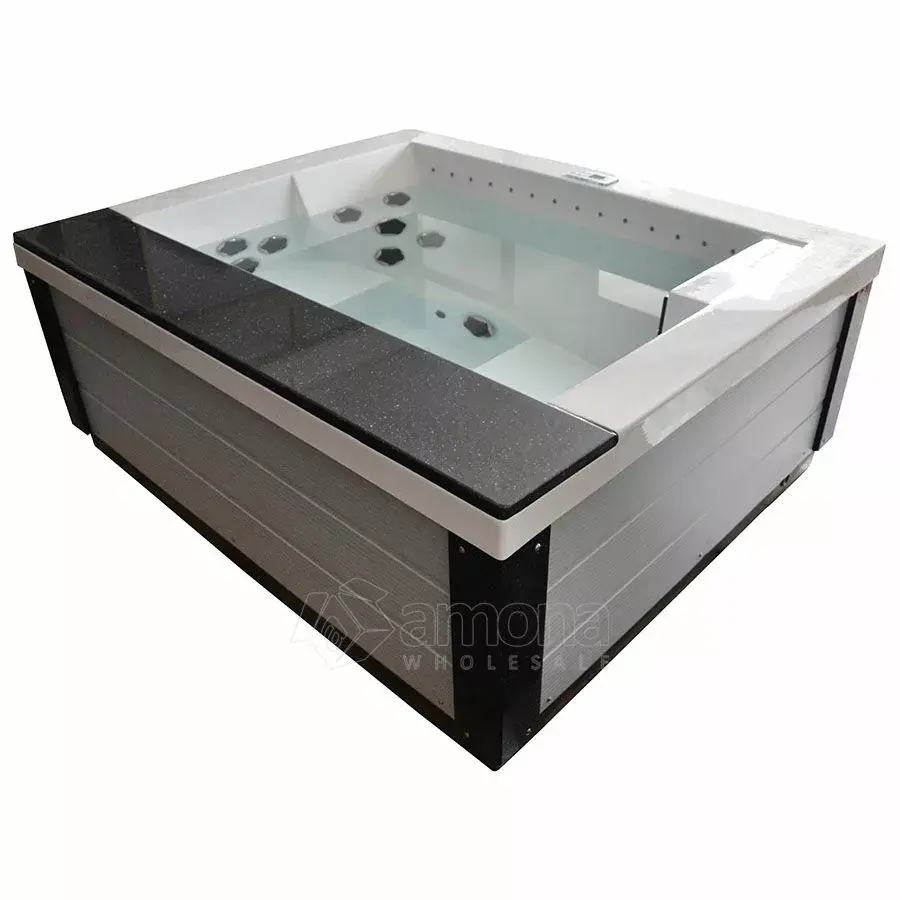

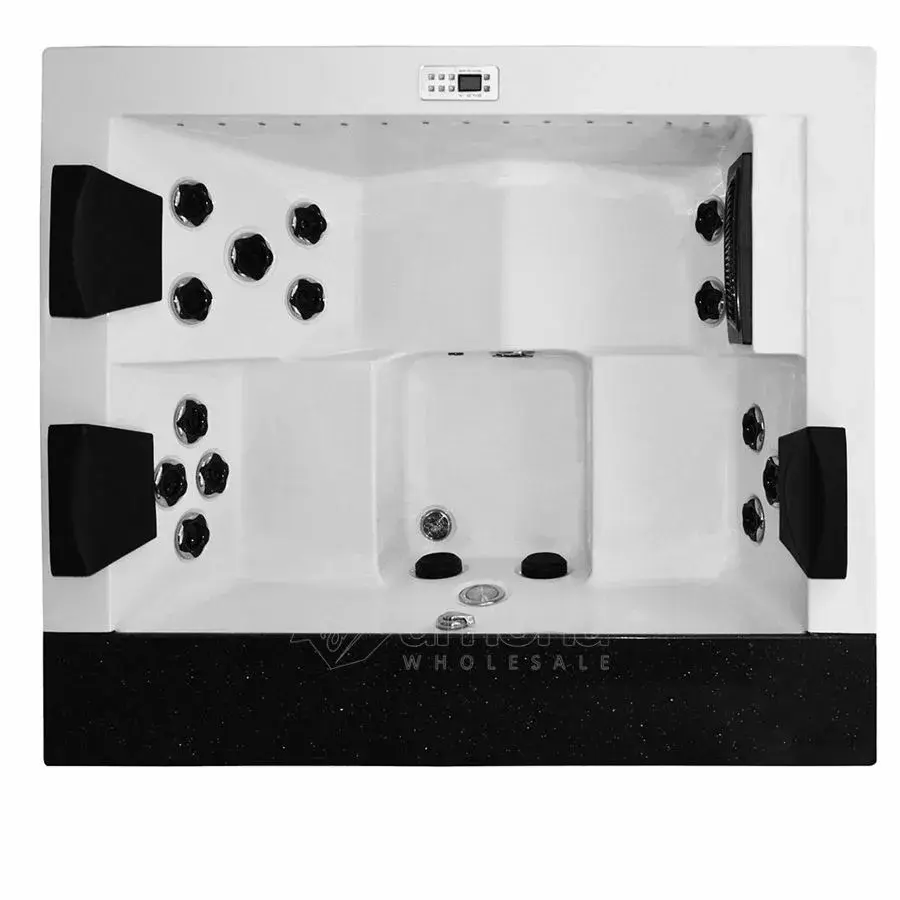

Built-in Bath Tub AMUE AMOG-1543 200x170 cm

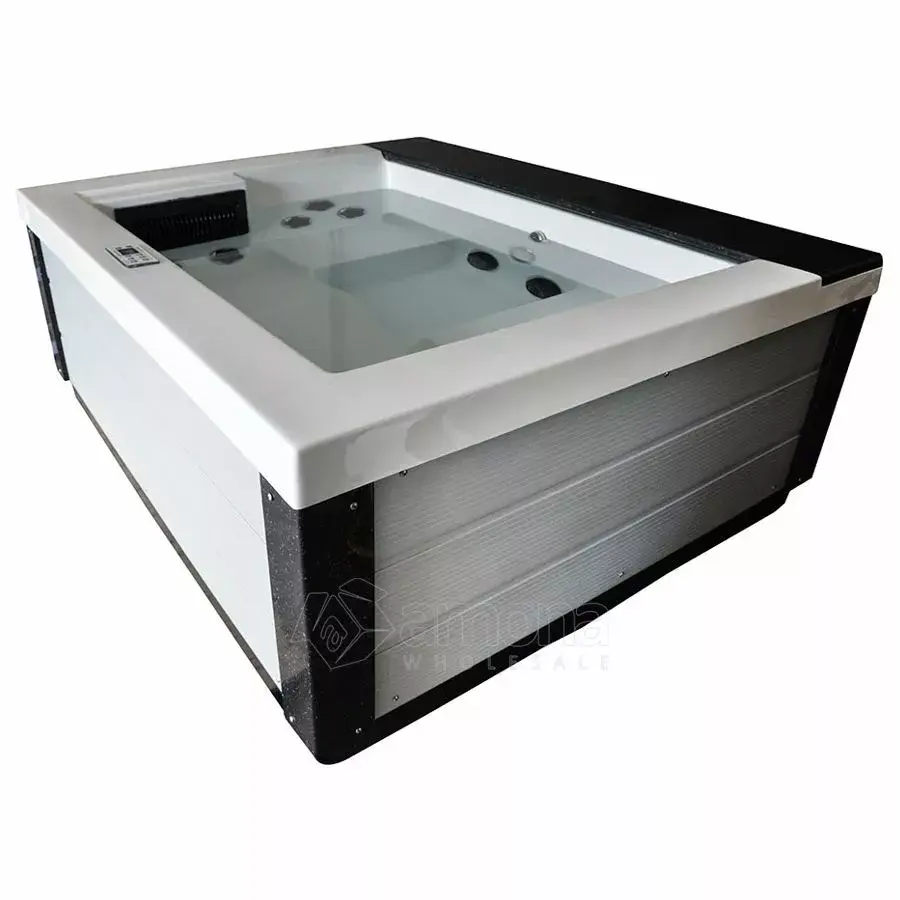

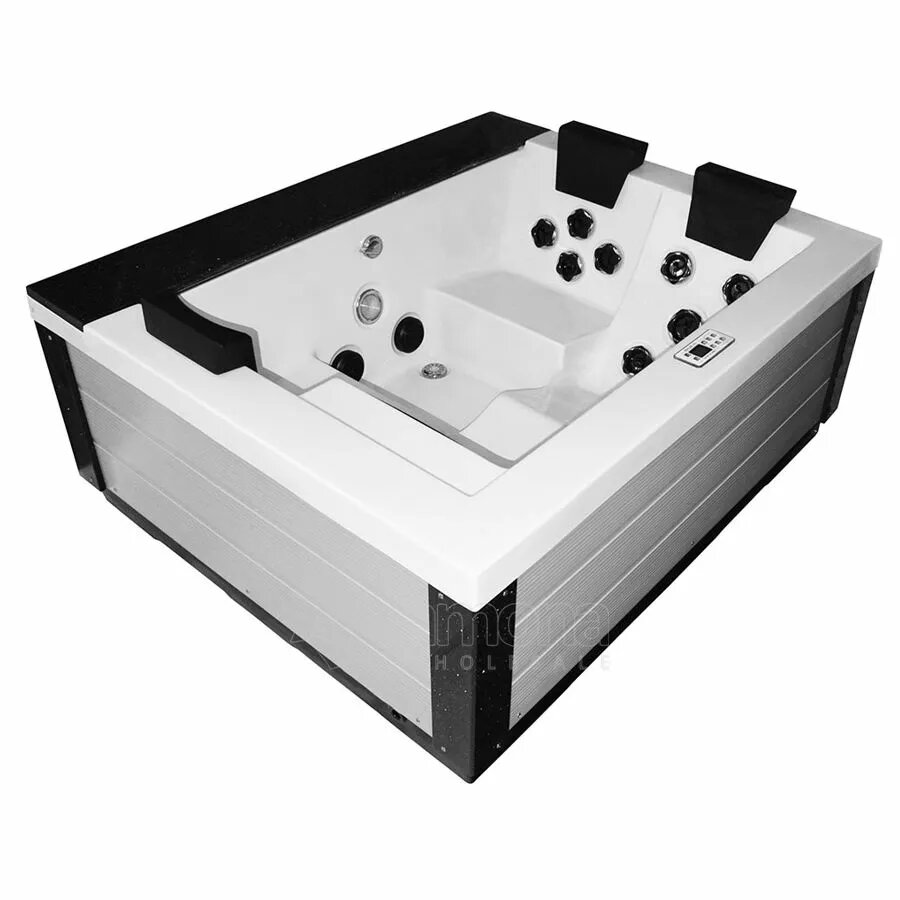

SPA Creation Bath AMOG-1543 200x170cm is a built-in spa bathtub designed for home use and garden installation, offering a roomy bathing area for up to three people including one lounger. The shell is made of 100% Aristech (USA) acrylic with reinforced thickness, supported by a stainless steel frame and full insulation to retain heat and increase energy efficiency.

Advantages

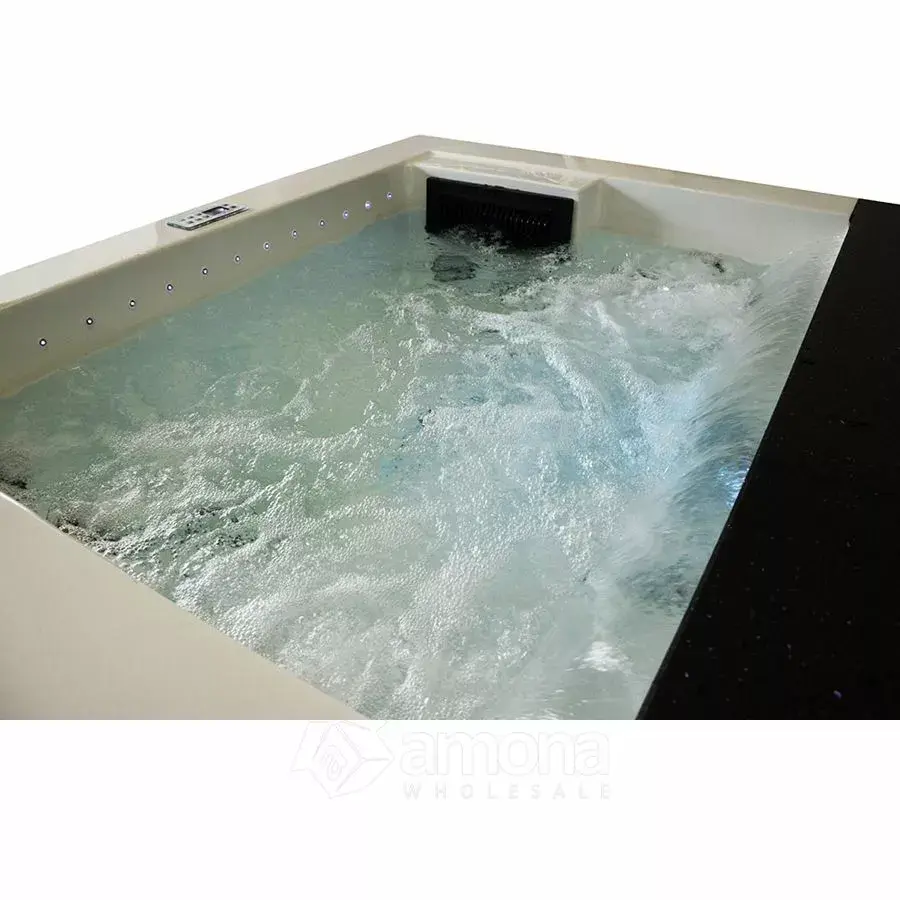

The bathtub features a durable acrylic coating that resists scratches and discoloration, embedded stainless-steel nozzles that do not create raised pressure points on the body, and a stable stainless steel construction to support the filled tub. It includes an ozone generator and optional UV lamp compatibility for water sterilization, a Balboa 3 kW heater, multi-color lighting and fiber-optic elements, and easy maintenance features such as drain-accessible collectors and replaceable ball valves near the circulation pump and heater.

Suitable for

• Home spa and hydrotherapy sessions for up to 3 people
• Built-in installation in larger bathrooms or garden spa areas
• Relaxation and therapeutic massage using water and air jets

Key specifications

• Model: AMOG-1543
• External dimensions: 200 x 170 x 80 cm
• Seats: 3 (including 1 lounger)
• Coating: Aristech (USA) acrylic
• Power supply: 380–400 V / 50 Hz
• Pumps: 2 × 1.5 HP (1.1 kW) water pumps; 1 × 0.35 HP (0.25 kW) circulation pump; 1 × 0.9 HP (0.7 kW) air pump — total 3 pumps
• Total power: approx. 6.5 kW
• Nozzles: 26 total — 12 water nozzles (4.5"; 7 rotating), 2 water jets (5"; 2 rotating), 12 air nozzles (1.5")
• Heater: 3 kW (Balboa)

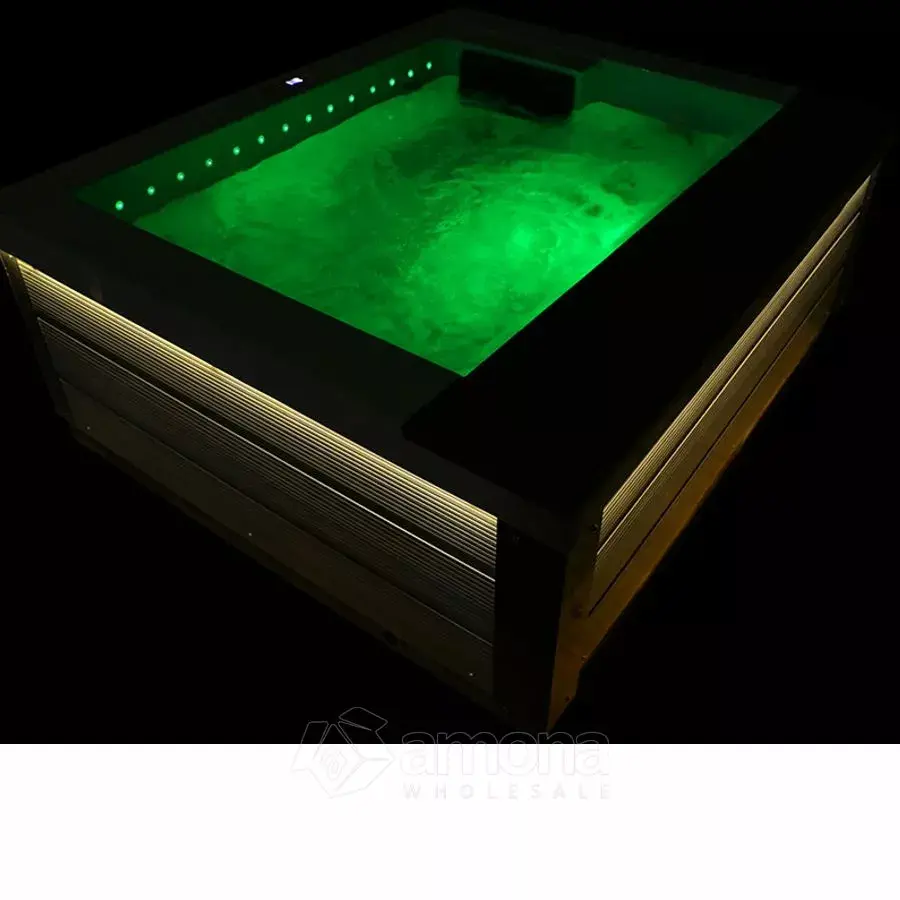

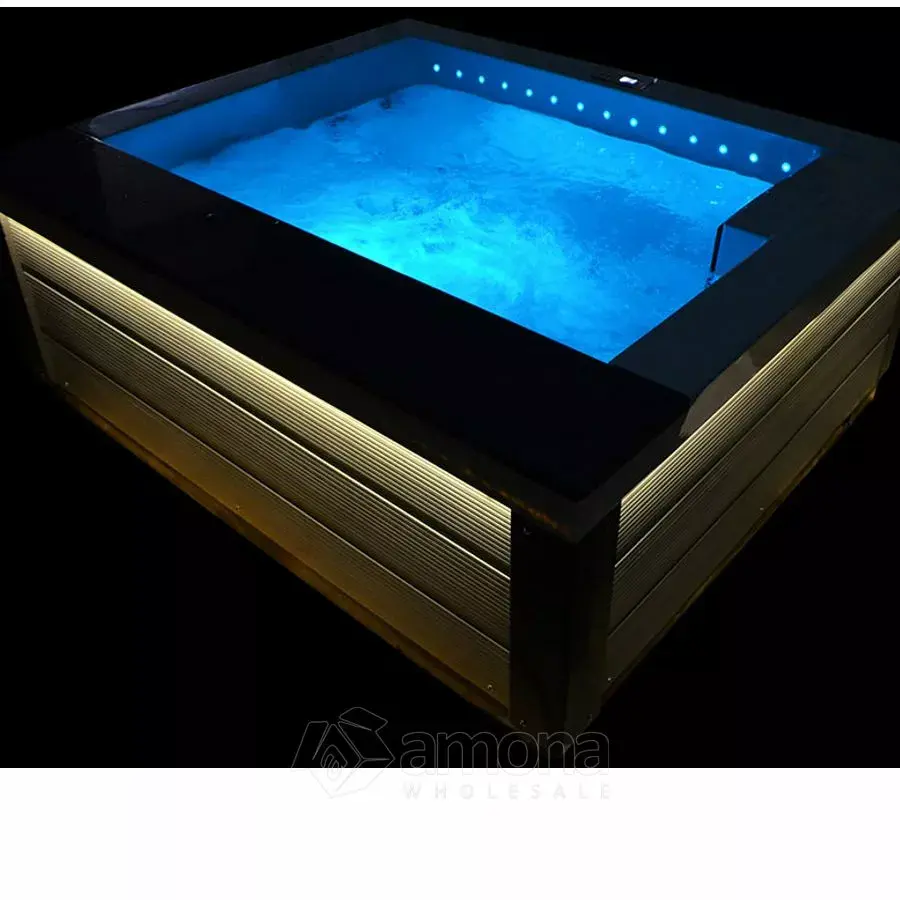

• Lighting: 1 spa lamp (7 colors) and 14 fiber-optic cables (7 colors)

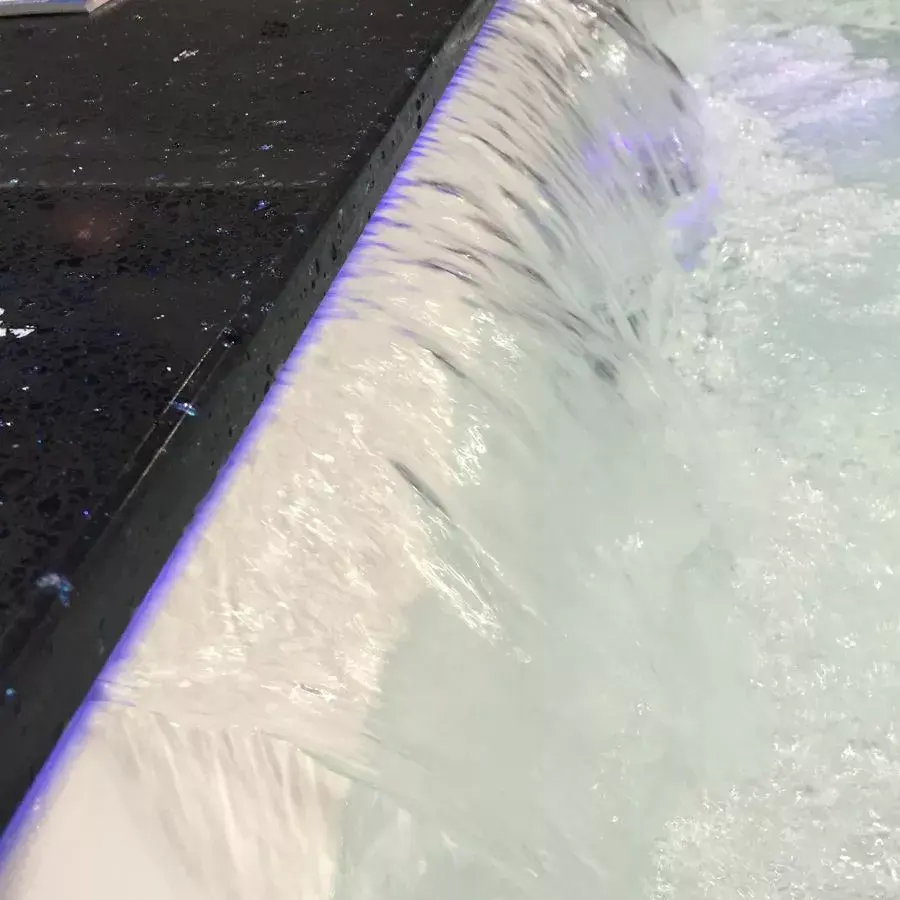

• Waterfall: granite illuminated waterfall (7 colors)
• Ozone generator: yes

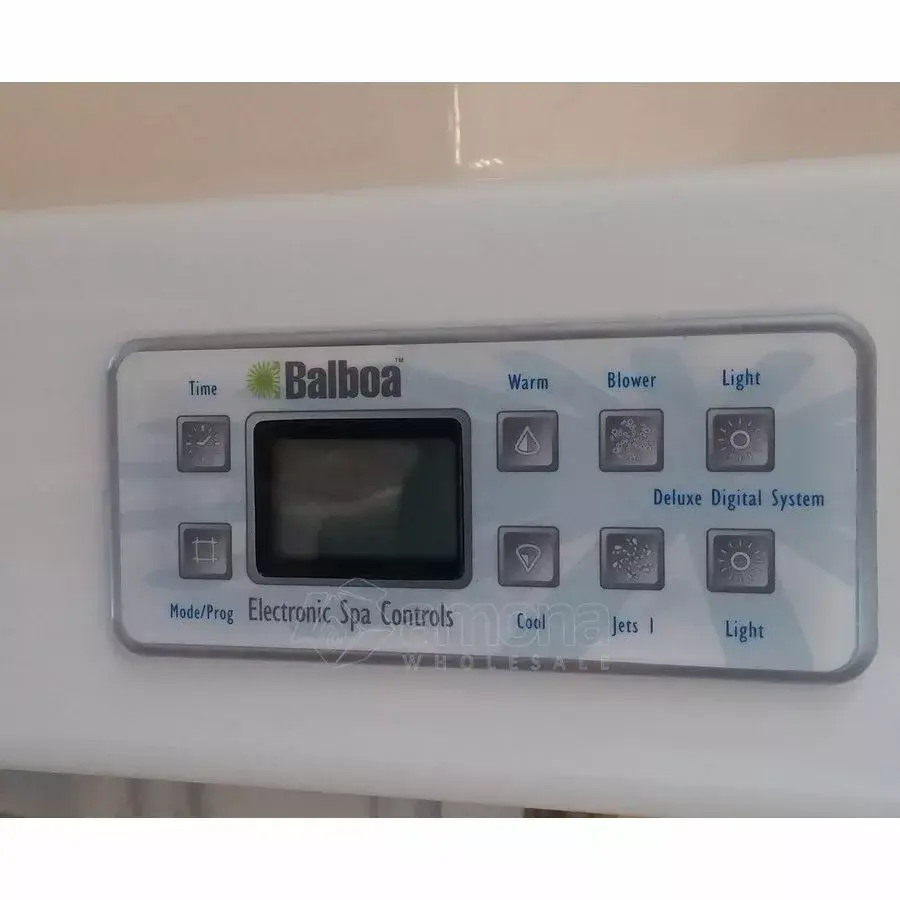

• Control panel: Balboa TP-600 or VL-801D
• Filter: 1 cassette filter
• Headrests: 3 (with suction cups)
• Stainless steel construction and stainless steel nozzles

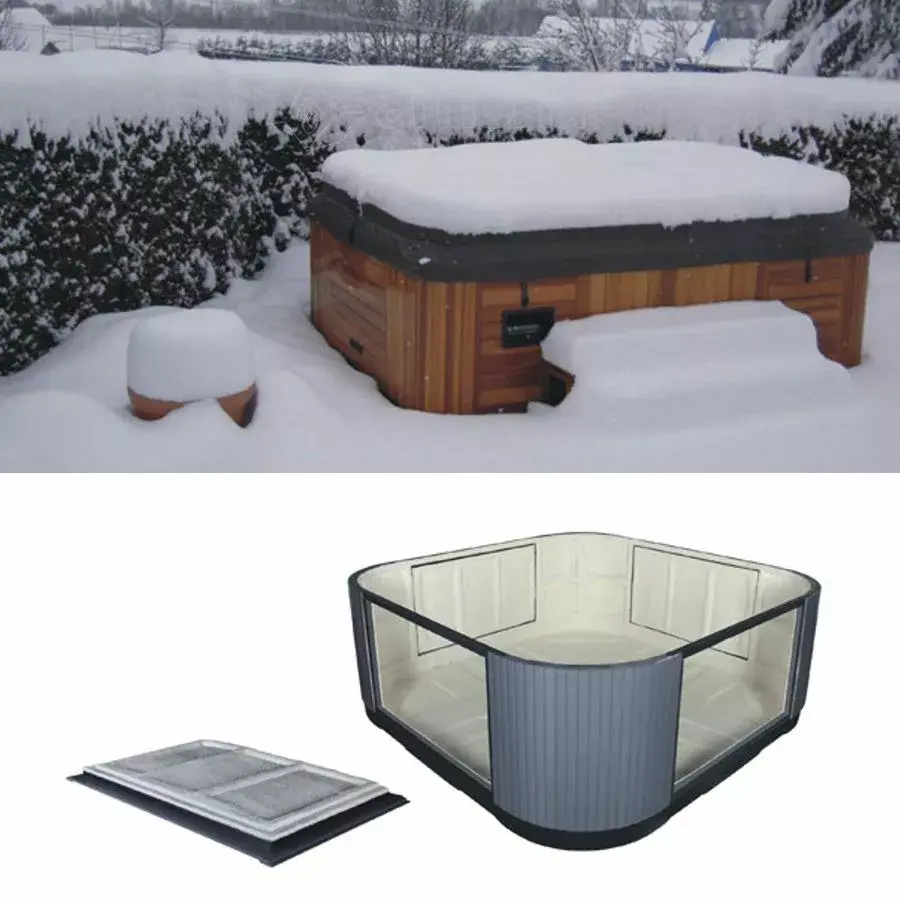

• Full insulation of bathtub shell and base

How to use

Install the built-in bathtub according to local electrical and plumbing codes, ensuring a 380–400 V / 50 Hz power connection and stable support for the stainless steel frame. Fill the tub to the recommended water level, switch on the pumps and Balboa control panel to select massage programs, lighting and heater settings. Use the aeration knobs to adjust air flow to the water jets and switch on the ozone or UV sterilization functions as required for water treatment. For maintenance, use the accessible ball valves and drain connections to isolate or drain components without emptying the entire tub.

Usage recommendations

Choose acrylic and body colors from the available chart to match the installation; operate pumps and heating according to manufacturer power ratings; use ozone or UV sterilization to reduce chemical use and follow local safety guidelines for electrical and water treatments.
