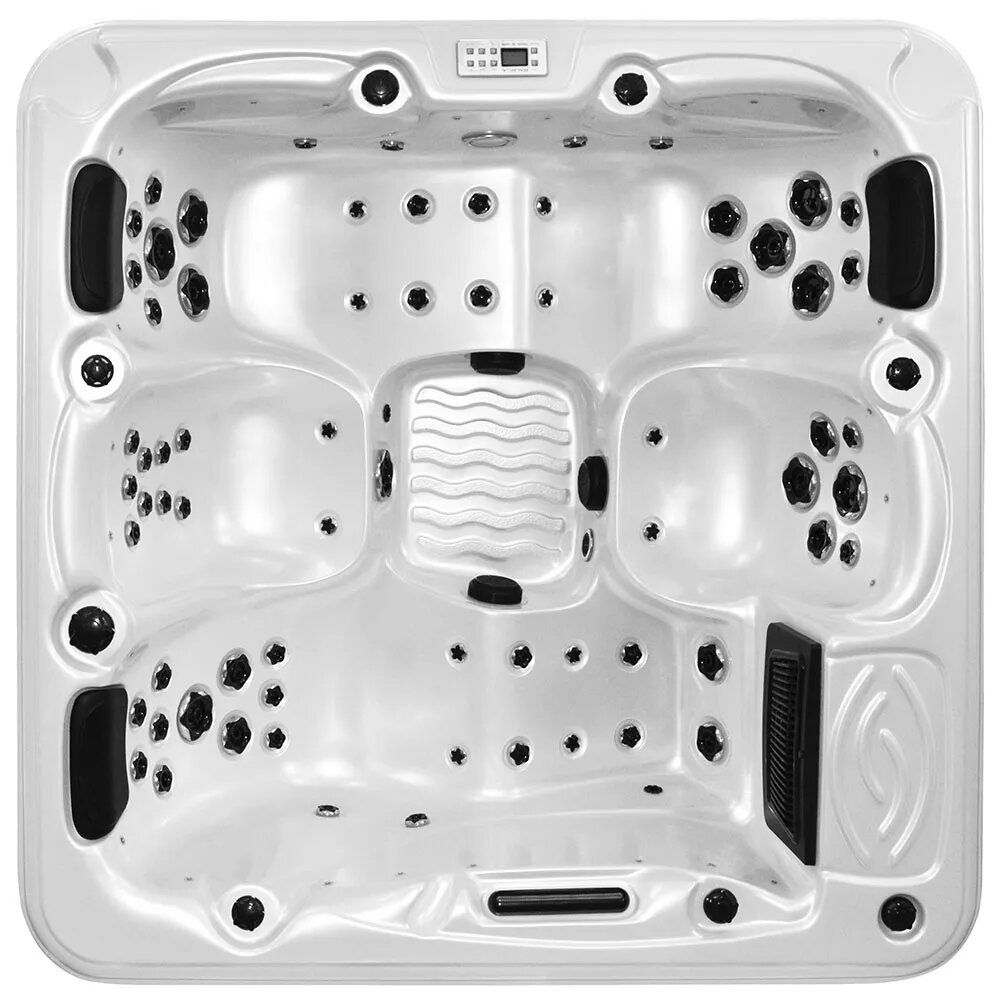

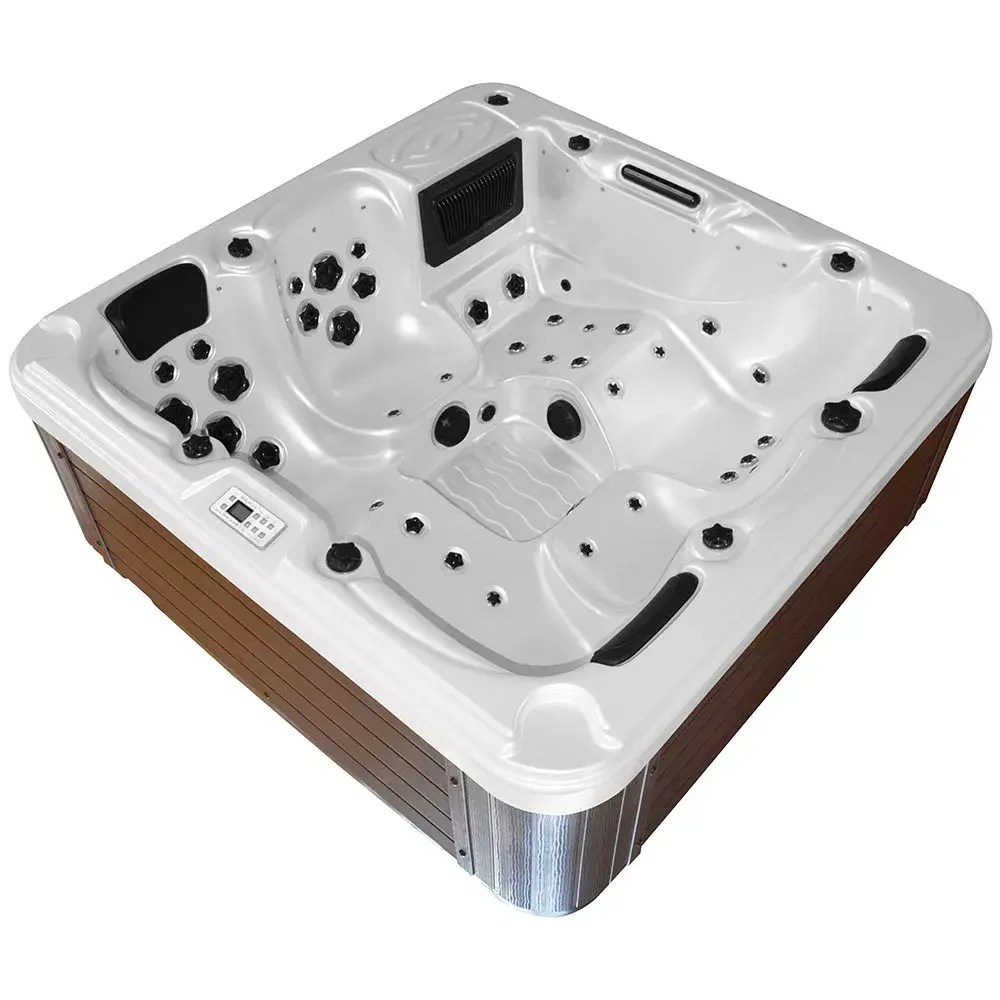

Whirlpool bathtub AMUE AMOG-1661 200x200 cm

Whirlpool bathtub AMUE AMOG-1661 200x200 cm is a square garden spa designed for hydrotherapy and relaxation. With external dimensions of 200 x 200 x 80 cm, it accommodates up to five people including two lying places. The shell is made from Aristech USA acrylic and the system is powered by a three-phase supply (380–400V/50Hz) with a total installed power of about 8.5 kW. The unit includes multiple pumps, 69 nozzles of various types, lighting and water treatment features suitable for home or professional spa use.

Advantages

The AMOG-1661 uses 100% Aristech USA acrylic with increased thickness for long-term scratch and stain resistance. Jets are recessed into the acrylic so bathers rest on the shell rather than directly on the nozzles. A stainless steel frame provides stable structural support, and full insulation of the basin and body reduces heat loss. Built-in ozone sterilization, optional UV lamp compatibility and Balboa control/heating components support hygienic water care and precise control.

Suitable for

• Family or backyard spa installations
• Small commercial spa or wellness rooms
• Hydrotherapy and muscle relaxation sessions
• Group bathing for up to five people

Key specifications

• Category: Garden pools
• Model: AMOG-1661
• External dimensions: 200 x 200 x 80 cm
• Seating capacity: 5 people (including 2 lying places)
• Coating: Aristech USA acrylic (100% acrylic)
• Power supply: 380–400V / 50Hz
• Number of pumps: 4 pcs (total power ≈ 8.5 kW)
• Pumps: Water pump 3HP/2.25 kW ×1; Water pump 2HP/1.5 kW ×1; Circulating pump 1HP/0.75 kW ×1; Air pump 0.9HP/0.7 kW ×1
• Total nozzles: 69 pcs (including various rotating and directional jets; 12 air nozzles)
• Water heater: 3 kW (Balboa)
• Lighting: SPA lamp (seven colors), 26 fiber optic lights, illuminated waterfall and corners (seven colors)
• Ozone generator: Yes (water sterilization)
• Aeration valves: 4 pcs (Easy-Flow Air Venturi)
• Control panel: Balboa TP-600 or VL-801D
• Filter: Cassette filters ×2
• Headrests: 3 pcs (with hooks)
• Construction: Stainless steel frame; recessed stainless steel nozzles; full insulation; polymer molded bottom

How to use

Install the AMOG-1661 on a stable level foundation that can support the empty and filled weight of the spa plus occupants. Connect the unit to a compatible three-phase power supply (380–400V/50Hz) following local electrical codes and the manufacturer’s installation instructions. Fill the bathtub, set the desired pumps and jet configuration using the Balboa control panel, and adjust aeration and directional jets as required. Use the heater and lighting controls to set water temperature and illumination. Use the included cassette filters and the ozone generator (and optional UV lamp) to maintain water hygiene according to the provided maintenance schedule.

Usage recommendations

Regularly check and clean cassette filters, follow electrical safety requirements for three-phase connections, and use the ozone generator and/or UV lamp to reduce chemical treatment. Close ball valves near the circulation pump and heater before servicing; do not attempt repairs without isolating power. Select jet settings and aeration to match therapeutic needs and avoid prolonged exposure to high-temperature water.
