Freestanding rack APC NetShelter SX 18U

Name: Freestanding rack APC NetShelter SX AR3106
Brand: APC
SKU: 3460929
Price: 1424.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

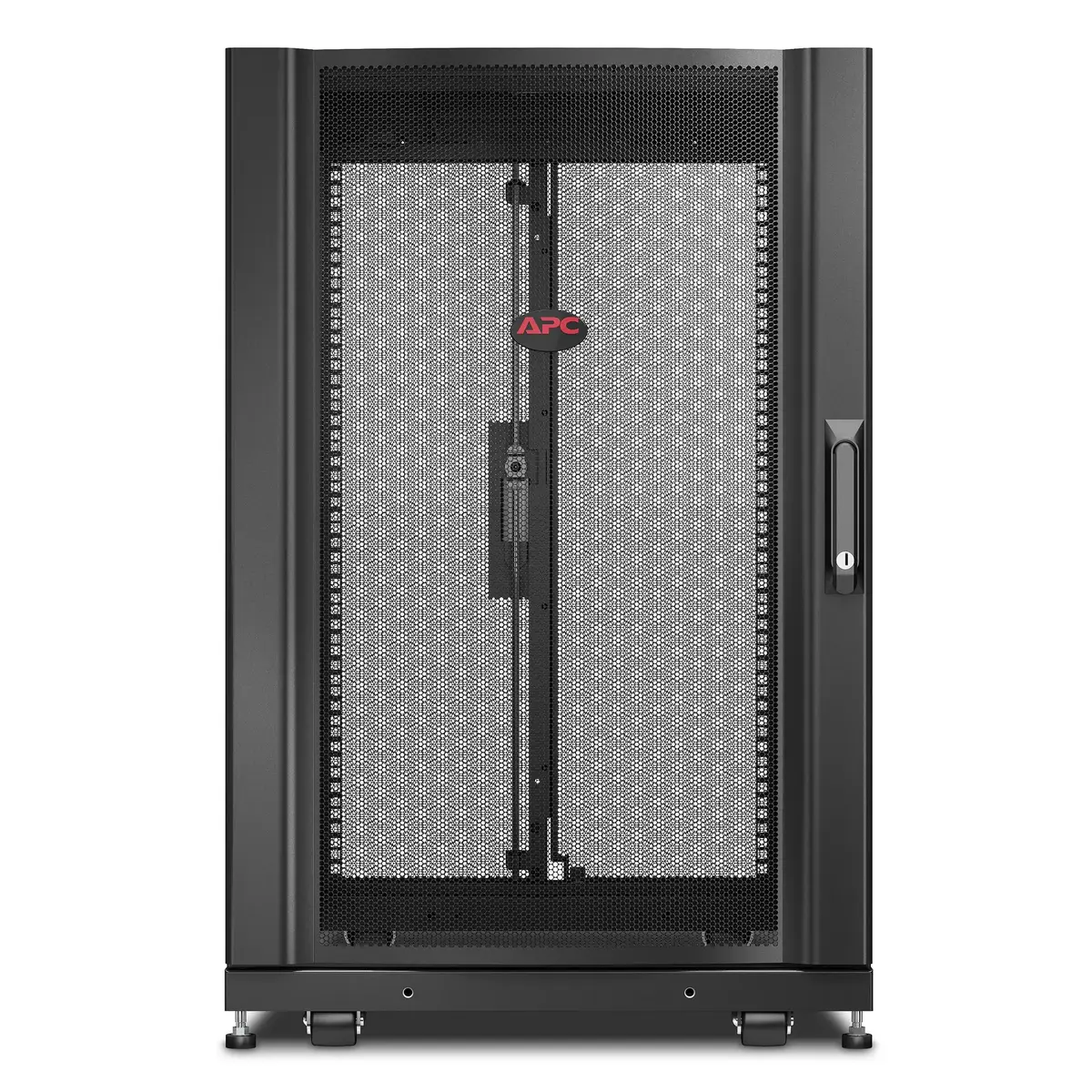

Freestanding rack APC NetShelter SX 18U Photo 3

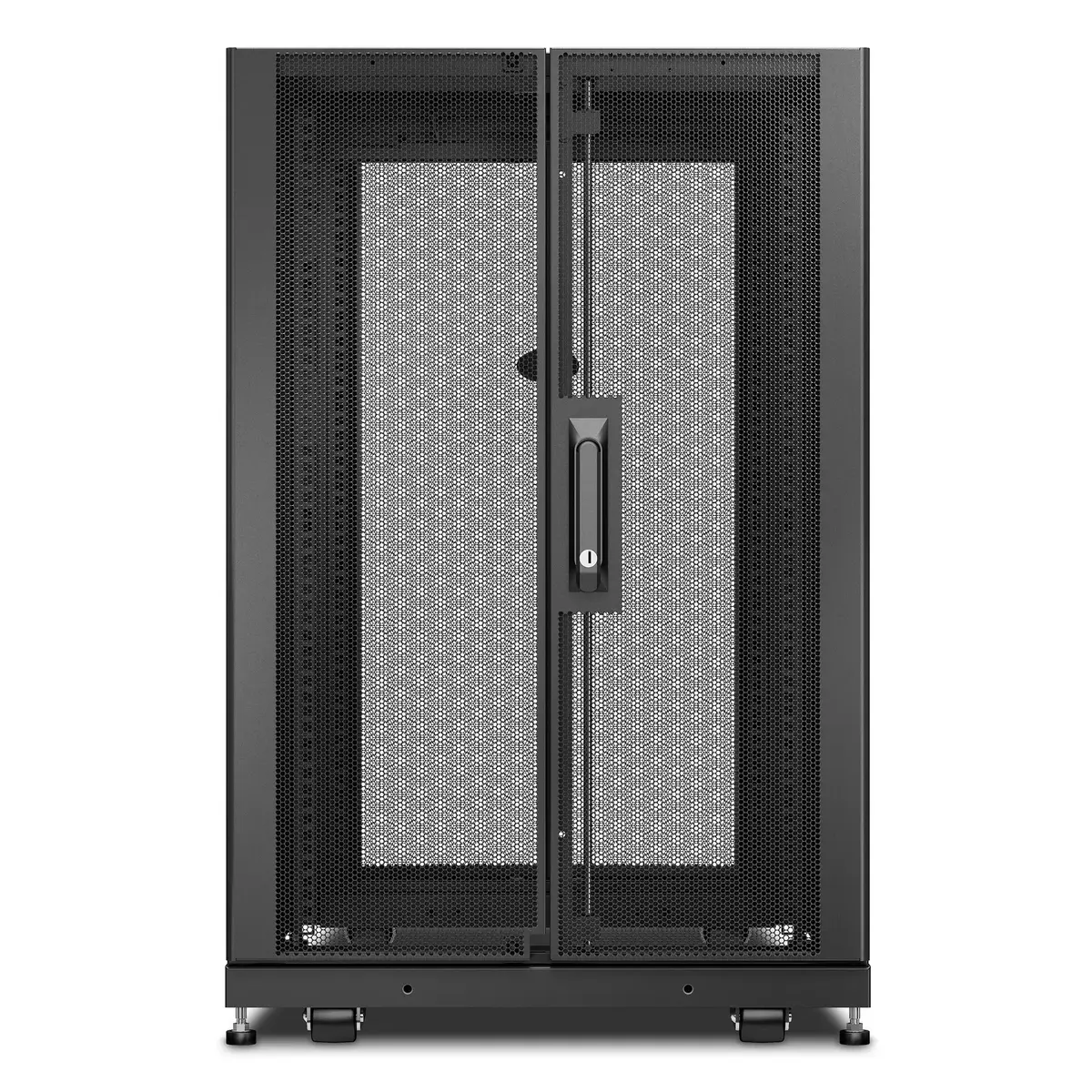

Freestanding rack APC NetShelter SX 18U Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The APC NetShelter SX 18U Freestanding Rack is designed for secure equipment storage with a maximum weight capacity of 409 kg. It features a key lock for added security and an IP20 rating for protection against solid objects. Weighing 72.1 kg, this black rack is ideal for various applications, ensuring durability and reliability in any environment.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 3460929

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

26.06.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 93.00 kg)

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 49.57 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The APC NetShelter SX 18U freestanding rack (MPN AR3106, EAN 0731304347699) is a 19" black enclosure designed to store and protect IT and networking equipment. It supports up to 18U of rack-mount space, a maximum static/dynamic load rating aligned with the product family, and has an IP20 rating for protection against solid objects. The enclosure includes integrated eyebolts for lifting, removable roof with cable access, perforated front and rear doors, grounding points, adjustable mounting rails and pre-installed accessory channels for flexible equipment and cable management.

Advantages

This NetShelter SX rack simplifies selection by providing complete enclosures under a single part number and ships with mounting hardware and basic adjustment tools. The roof offers easily removable pull-pin hinges and reversible orientation to reposition larger cable openings. Cable access openings include pre-installed brush strips for data cable passthrough and provisions for air containment. Perforated curved-profile doors and half-height quick-release side panels improve ventilation and handling. Integrated grounding, heavy-gauge mounting rails and robust frame design contribute to structural stability. Rails include zero-U holes for DDC patching without consuming critical U-space.

Suitable for

Small server rooms and network closets requiring up to 18U of equipment space
Edge IT deployments and branch offices
Installations that need pre-installed cable brush strips and overhead or raised-floor cable routing
Systems requiring vendor-neutral EIA-310 19" rack compatibility

Key specifications

Brand: APC (Schneider Electric)
Model / MPN: NetShelter SX 18U, AR3106
EAN: 0731304347699
Rack capacity: 18U
IP rating: IP20
Maximum mounting depth: 921 mm
External height: 925 mm
External depth: 1070 mm
External width: 600 mm
Weight: 72.12 kg
Colour: Black

How to use

Place the freestanding rack on a level floor. Use the integrated eyebolts and lifting points only with appropriate lifting hardware and within the enclosure weight limits described in the product documentation. Adjust the vertical mounting rails in 6.4 mm (1/4 in) increments to match equipment mounting depth and secure equipment using the supplied captive hardware. Remove the roof using the pull-pin hinges to access the top cable openings; the roof can be reversed to reposition larger openings for power connectors. Route data and power cabling through the roof or raised-floor openings; use the brush strips for clean cable passthrough and to help maintain air containment. Install PDUs or cable organizers using the pre-installed rear accessory channels and use leveling feet or castors as needed for relocation and final height adjustment.

Usage recommendations

Verify total equipment weight and lifting requirements against the enclosure documentation before moving or lifting. For seismic, pre-racking, or specialized packaging and ATO options, consult Schneider Electric/APC product documentation and the Design Portal for compatible accessories and configuration guidance.

Specifications

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Rack capacity:: 18U
Mounting depth (max):: 921 mm
Weight:: 72.12 kg
Height:: 925 mm
Depth:: 1070 mm
Width:: 600 mm
Size (imperial):: 19 "
Product colour:: Black

All features

Packaging data

Package weight:: 93000 g
Package depth:: 1160 mm
Package height:: 1060 mm
Package width:: 750 mm

Logistics data

Harmonized System (HS) code:: 85381000

Features

Type:: Freestanding rack
Certification:: UL 2416, UL 60950-1, REACH
Product colour:: Black
Maximum weight capacity:: 409 kg
Rack capacity:: 18U
Side panels included:: Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Key lock:: Yes
Front door key lock:: Yes

Weight & dimensions

Weight:: 72.12 kg
Size (imperial):: 19 "
Height:: 925 mm
Width:: 600 mm
Depth:: 1070 mm
Mounting depth (min):: 191 mm
Mounting depth (max):: 921 mm

Technical details

Sustainability certificates:: RoHS
