header-product KVM Switch ATEN 2-Port USB HDMI with Audio
61.99 €
Minimum search length 3 characters
{{searchQuery.text}}
{{shortcut.title}}
{{searchString}} → {{searchInCategorySuggest.title}}
{{category.title}}
{{category.path}}
AiO.lv Networking Equipment Wired Equipment KVM Switches ATEN

KVM Switch ATEN 2-Port USB HDMI with Audio

KVM Switch ATEN 2-Port USB HDMI Photo 1
KVM Switch ATEN 2-Port USB HDMI Photo 2
KVM Switch ATEN 2-Port USB HDMI Photo 1
KVM Switch ATEN 2-Port USB HDMI Photo 2
KVM Switch ATEN 2-Port USB HDMI Photo 1
KVM Switch ATEN 2-Port USB HDMI Photo 2
KVM Switch ATEN 2-Port USB HDMI Photo 1
KVM Switch ATEN 2-Port USB HDMI Photo 2
KVM Switch ATEN 2-Port USB HDMI with Audio
{{selectedOffer && selectedOffer.price | formatAmount}}
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

KVM Switch ATEN 2-Port USB HDMI with Audio

{{email}}
You keep track of price changes

KVM Switch ATEN 2-Port USB HDMI with Audio

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The ATEN 2-Port USB HDMI KVM Switch allows you to control two computers using a single keyboard and mouse setup. It supports HDMI video with a maximum resolution of 1920 x 1200 pixels at 60 Hz, ensuring high-quality visuals. The switch is compact, with dimensions of 82.4 mm width, 66.5 mm depth, and 25.2 mm height, making it easy to fit into any workspace. It is powered by a 5V DC source and has a low power consumption of 0.72 W, making it energy-efficient. The durable plastic housing ensures longevity and reliability.
Available for order: 34 pcs.
Warranty: 2 Years
SKU: 407466
Learn more
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

All delivery methods Hide details
Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
06.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
09.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.41 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
09.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
More about delivery methods
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
More about payment methods
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

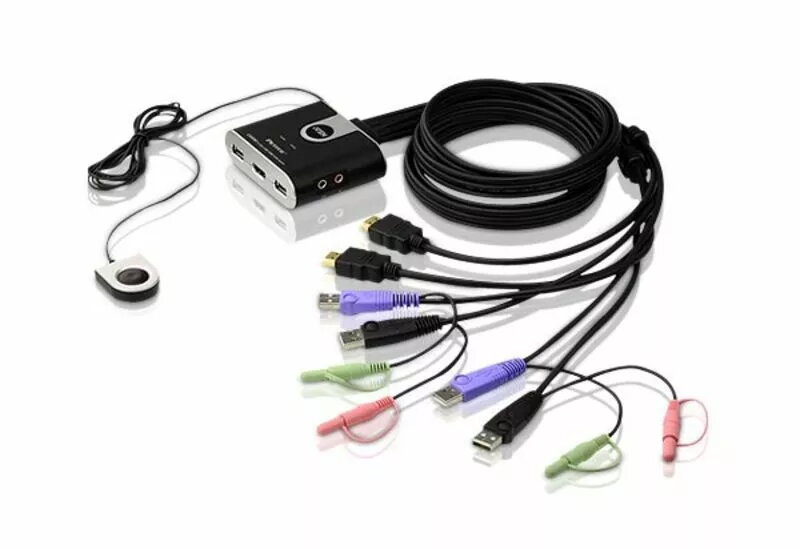

The CS692 2-Port USB HDMI/Audio Cable KVM Switch connects two HDMI-enabled computers or devices to a single USB keyboard, USB mouse, and one HD display console. It provides full HDMI video support, audio pass-through, USB 2.0 peripheral sharing (via a USB hub connected to the mouse USB port), and a firmware upgrade function to keep the device up to date. The package includes the CS692 switch with a remote port selector, user instructions, and two hotkey stickers.

Advantages

The ATEN CS692 offers compact dimensions (82.4 x 66.5 x 25.2 mm) and low power consumption (0.72 W) while supporting HDMI video up to 1920 x 1200 at 60 Hz. It supports seamless switching between two computers using keyboard hotkeys or the included remote port selector, and its USB 2.0 support enables sharing of compatible peripherals. The plastic housing is lightweight and durable, and the unit is compatible with standard USB keyboards and mice.

Suitable for

  • Desktop workstations that need to share a single monitor and input devices between two PCs
  • Home offices where space-saving KVM switching is required
  • Small offices or point-of-sale setups requiring HDMI video and audio switching

Key specifications

  • Brand: ATEN
  • Model: CS-692
  • Number of computers controlled: 2
  • Keyboard/Mouse ports: USB
  • Video port: HDMI, up to 1920 x 1200 @ 60 Hz
  • Audio: HDMI audio pass-through
  • Peripheral sharing: USB 2.0 via hub on mouse port
  • Dimensions: 82.4 x 66.5 x 25.2 mm
  • Weight: 0.409 kg
  • Power: 5 V DC, typical power consumption 0.72 W
  • Color: Black

How to use

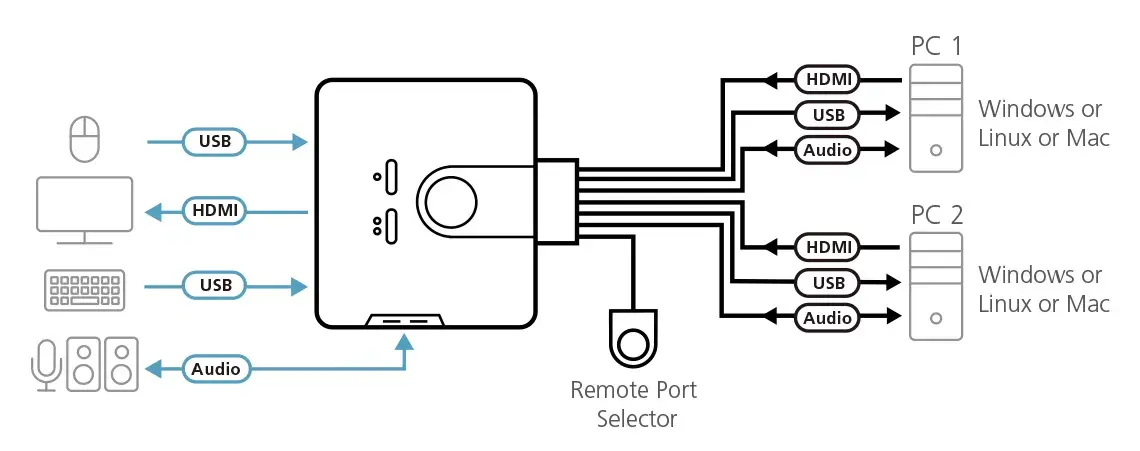

Connect each computer’s HDMI and USB cables to the corresponding KVM cables on the CS692, then connect your USB keyboard, USB mouse and monitor to the console ports. Use the remote port selector button or keyboard hotkeys to switch control between the two connected computers. For sharing additional USB peripherals, attach a powered USB hub to the mouse USB port. Follow the included user instructions for detailed port mapping and hotkey combinations. Use the firmware upgrade function as described in the manual to update the device when new firmware releases are available.

Usage recommendations

Place the CS692 near your workstation to keep cable runs short. Use high-quality HDMI cables to ensure reliable 1920 x 1200 @ 60 Hz video. If you plan to share multiple USB devices, use a powered USB hub to avoid power limitations. Regularly check the vendor website for firmware updates to maintain compatibility and performance.

Specifications

Built-in display: A display which is part of the product, so you do not need to attach another display.
No
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
No
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
WUXGA
Video port type: The type of socket in the device for connecting a video e.g. SCART.
HDMI
Mouse port type:
USB
Keyboard port type: The type of socket in the device for connecting a keyboard e.g. USB.
USB
Number of computers controlled: The amount of computers controlled by this device.
2
Product colour: The colour e.g. red, blue, green, black, white.
Black
Console ports:
USB A, HDMI, 3.5mm mic, 3.5mm headphone
All features

Logistics data

Products per master (outer) case:
10 pc(s)
Master (outer) case gross weight:
6130 g
Master (outer) case height:
182 mm
Master (outer) case length:
405 mm
Master (outer) case width:
395 mm
Master (outer) case net weight:
4090 g
Harmonized System (HS) code:
85176200

Packaging content

Manual:
Yes
Quick installation guide:
Yes

Packaging data

Package weight: Weight of the packaged product.
550 g
Package height: The distance from the top to the bottom of the packaging.
235 mm
Package depth: The distance from the front to the back of the packaging.
163 mm
Package width: The distance from one side of the packaging to the other.
70 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.409 kg
Height: The measurement of the product from head to foot or from base to top.
25.2 mm
Depth: The distance from the front to the back of something.
66.5 mm
Width: The measurement or extent of something from side to side.
82.4 mm

Operational conditions

Storage relative humidity (H-H):
0 - 80
Operating relative humidity (H-H):
0 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 50

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
0.72 W
Input voltage: The voltage (V) which is required to power the product.
5
Power source: What is providing power for the product e.g. mains electricity.
DC

Display

Built-in display: A display which is part of the product, so you do not need to attach another display.
No

Design

Hot keys:
Yes
Push button:
Yes
LED indicators:
Y
Housing material: What the casing of the product is made of.
Plastic
Product colour: The colour e.g. red, blue, green, black, white.
Black
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
No

Performance

Scan interval:
3, 20, 10, 5
Video bandwidth:
60 Hz
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
WUXGA

Ports & interfaces

Number of microphone inputs:
3
Headphone outputs: Number of sockets /ports where headphones are connected.
3
Audio connections: Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Yes
USB connector type: The type of USB connector/port that this product has.
USB Type-A
USB 2.0 Type-A hub ports quantity:
4
Console ports:
USB A, HDMI, 3.5mm mic, 3.5mm headphone
Console USB ports quantity:
2
HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
Video port type: The type of socket in the device for connecting a video e.g. SCART.
HDMI
Mouse port type:
USB
Keyboard port type: The type of socket in the device for connecting a keyboard e.g. USB.
USB
Number of computers controlled: The amount of computers controlled by this device.
2
Hide Show all

Instructions

mmo_77647715_1627030820_4981_21054.pdf
aten-CS-692-407466.pdf

Description

Instructions

mmo_77647715_1627030820_4981_21054.pdf
aten-CS-692-407466.pdf
Machine translation. Load original

Similar products

{{product.title}}
Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the KVM Switch ATEN 2-Port USB HDMI cost, and is it available for purchase?

The price is 61.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 34 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 06.10.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ATEN products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ATEN service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: built-in display, rack mounting, maximum resolution, hd type, video port type, mouse port type, keyboard port type, number of computers controlled, product colour, console ports, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for KVM Switch ATEN 2-Port USB HDMI?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
