header-product KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G
238.99 €

KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G

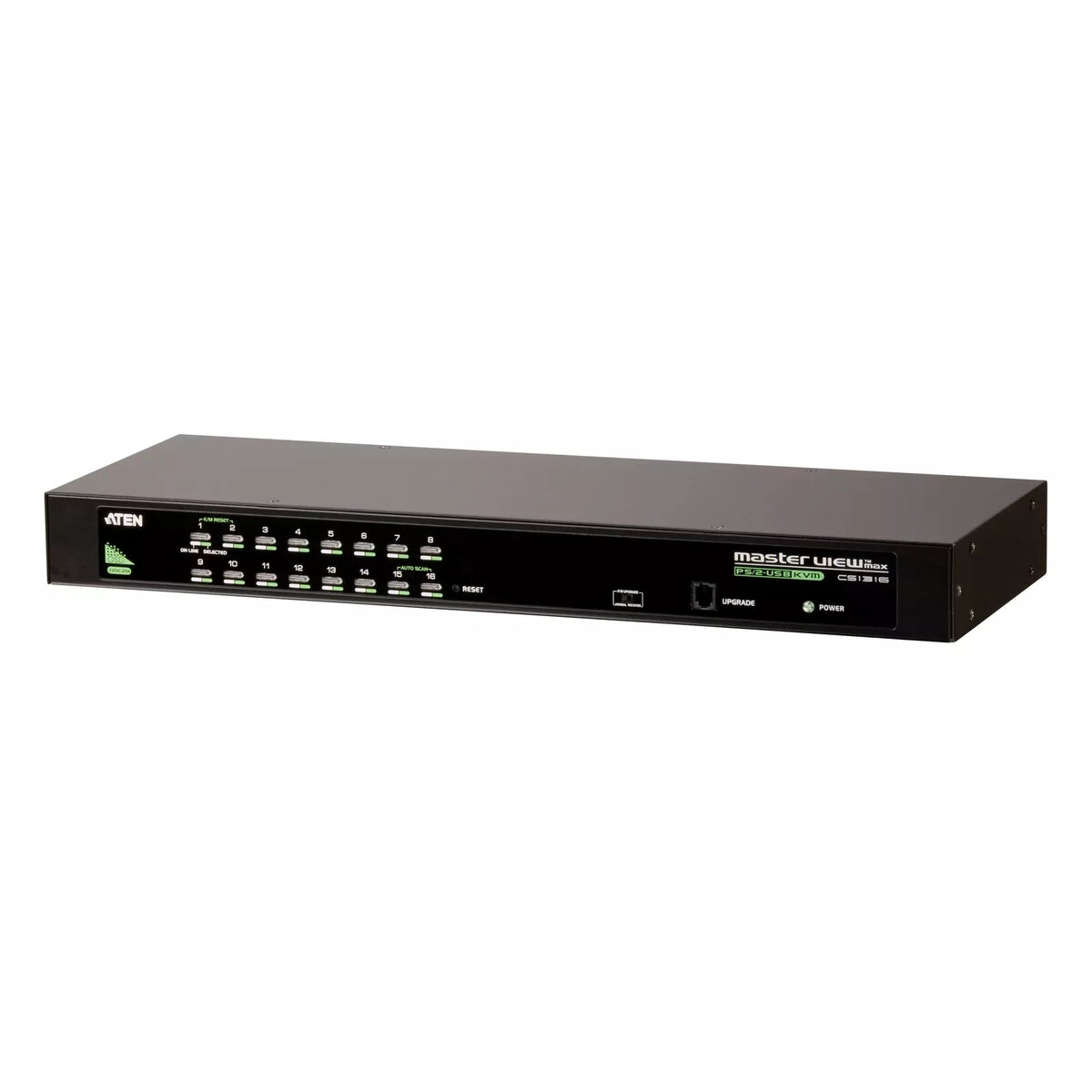

KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G Photo 1

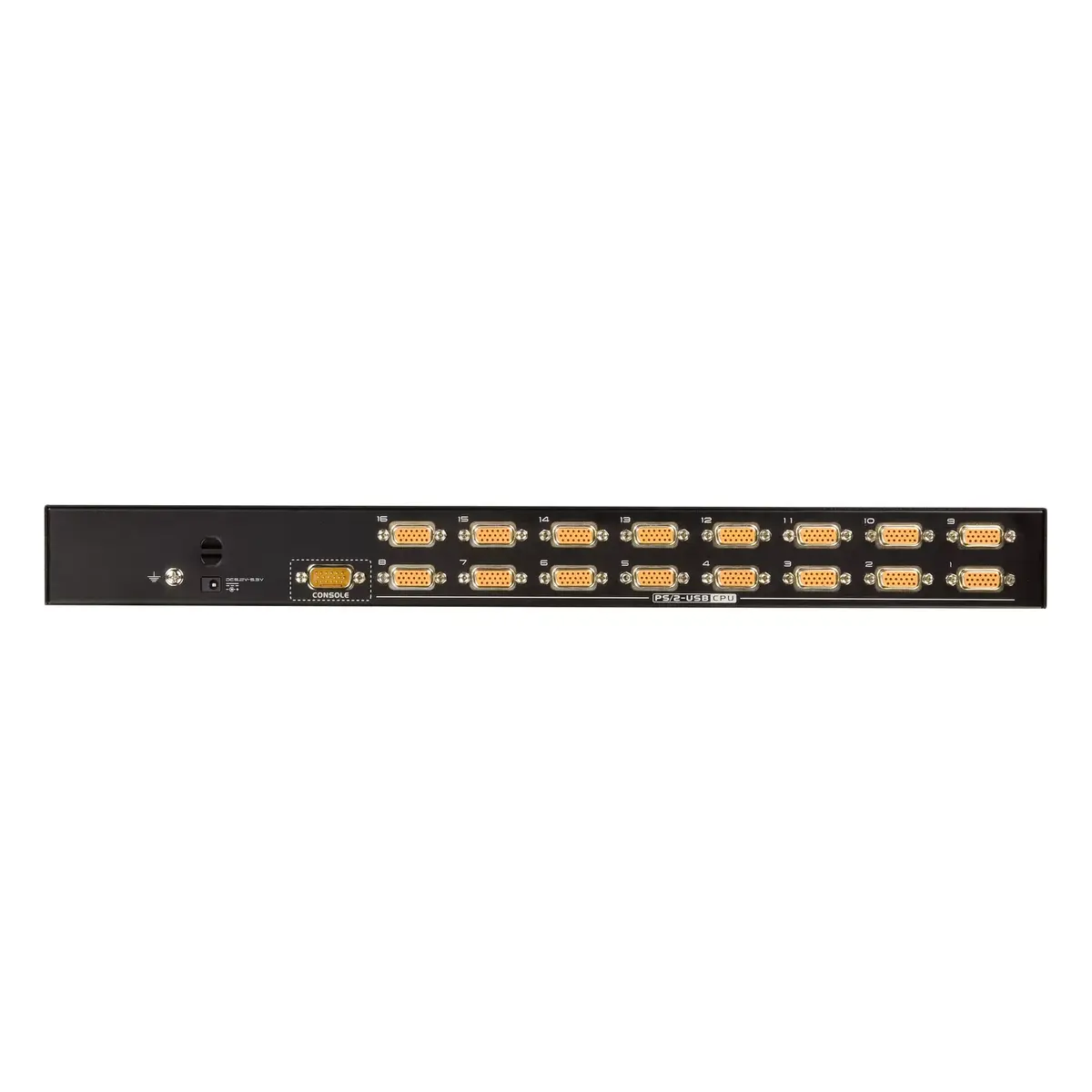

KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G Photo 2

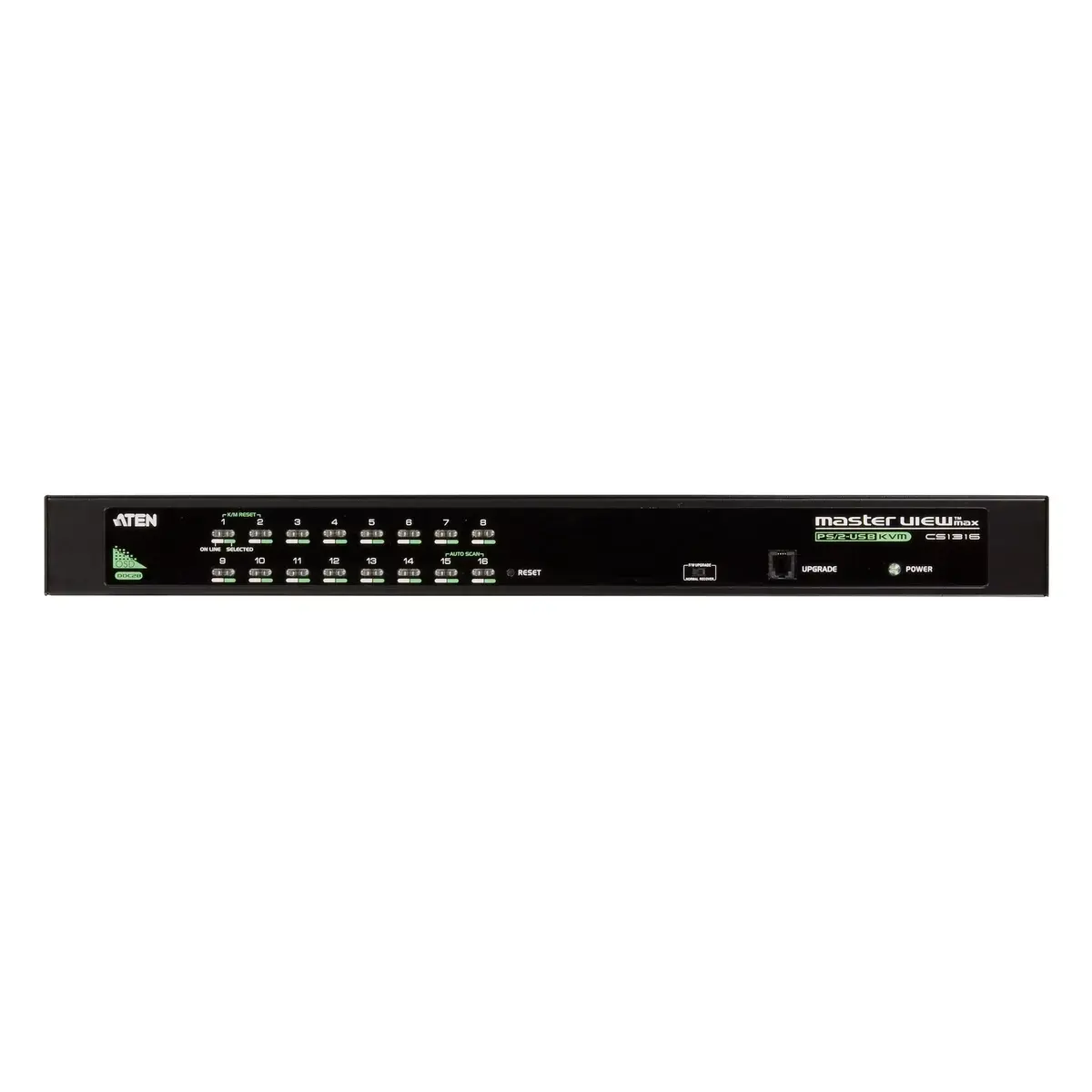

KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G Photo 3
KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G Photo 1
KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G Photo 2
KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G

{{email}}
You keep track of price changes

KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The ATEN 16-Port USB - PS/2 VGA KVM Switch allows you to control multiple computers from a single keyboard, mouse, and monitor. It supports both USB and PS/2 connections for keyboard and mouse, and offers a maximum resolution of 2048 x 1536 pixels. With a compact 1U rack design and metal housing, it ensures durability and efficient space usage. The switch operates on a DC power source with a typical power consumption of 6.5 W, making it an energy-efficient choice for managing your IT infrastructure.
Available at price 238.99 €: 5 pcs.
Total available for order: 16 pcs.
Warranty: 2 Years
SKU: 7741
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.90 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 282.49 €: 1 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ATEN 16-Port USB PS/2 VGA KVM Switch (CS1316-AT-G) enables control of multiple computers from a single keyboard, mouse and monitor console. The unit supports both USB and PS/2 keyboard and mouse connections and provides VGA video up to 2048 x 1536. In a cascaded setup with up to 16 additional switches, the system can manage up to 256 computers while occupying a 1U rack space in a metal housing. The switch is powered by a DC adapter and has typical power consumption of 6.5 W.

Advantages

The CS1316-AT-G combines USB and PS/2 support for broad peripheral compatibility, a compact 1U rack design for efficient space usage, and a robust metal enclosure for durability. Cascading capability allows expansion to control up to 256 computers from one console, and VGA support up to 2048 x 1536 ensures compatibility with standard analog monitors. Low typical power consumption makes it suitable for continuous operation in server rooms and control stations.

Suitable for

  • Server rooms and data centers where multiple servers are managed from a single console
  • IT maintenance and troubleshooting environments
  • Control rooms and network operation centers
  • Environments requiring mixed USB and PS/2 peripheral support

Key specifications

  • Model: ATEN CS1316-AT-G
  • Ports: 16 local ports; cascades to support up to 256 computers
  • Console interfaces: USB and PS/2 for keyboard and mouse; VGA for monitor
  • Maximum video resolution: 2048 x 1536
  • Power: DC adapter (included); typical consumption 6.5 W
  • Form factor: 1U rack-mountable, metal housing
  • Weight: 2.5 kg
  • Color: Black

How to use

Install the CS1316-AT-G into a 1U rack space using the supplied rack mount kit. Connect the console keyboard, mouse and monitor to the console ports using either USB or PS/2 as required. Attach each computer to the switch using the appropriate KVM cables. If expansion is needed, cascade additional CS1316 units (up to 16) to increase the total controllable computers to 256. Connect the included DC power adapter and power on the unit; follow on-screen or front-panel selection methods to switch between connected computers.

Usage recommendations

For reliable operation, use high-quality VGA and USB/PS/2 cables, ensure proper grounding of rack equipment, and keep firmware updated using the included firmware upgrade cable. Place the switch in a ventilated rack location to avoid overheating during continuous use.

Specifications

Keyboard port type:
USB, PS/2
Mouse port type:
USB, PS/2
Video port type:
VGA
Weight:
2.5 kg
Number of computers controlled:
256
Product colour:
Black
All features

Packaging content

AC adapter included:
Yes
Cables included:
KVM
Manual:
Yes
Quick installation guide:
Yes

Ports & interfaces

Keyboard port type:
USB, PS/2
Mouse port type:
USB, PS/2
Video port type:
VGA
Number of computers controlled:
256
Console ports:
VGA (D-Sub)

Performance

Maximum resolution:
2048 x 1536
Hot-Plug support:
Yes
Scan interval:
1, 255
Firmware upgradeable:
Yes
HD type:
QXGA
DDC2B support:
Yes

Design

Rack mounting:
Yes
Hot keys:
Yes
LED indicators:
Y
Product colour:
Black
Rack capacity:
1U
Housing material:
Metal
Push button:
Yes
Cascadable:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
6.5 W
Power source:
DC
Input voltage:
5.3

Operational conditions

Operating relative humidity (H-H):
0 - 80
Storage temperature (T-T):
-20 - 60
Operating temperature (T-T):
0 - 50

Logistics data

Master (outer) case height:
258 mm
Master (outer) case width:
375 mm
Master (outer) case gross weight:
9270 g
Master (outer) case length:
565 mm
Products per master (outer) case:
3 pc(s)
Master (outer) case net weight:
7500 g
Harmonized System (HS) code:
85176200

Weight & dimensions

Weight:
2.5 kg
Height:
44 mm
Width:
437.2 mm
Depth:
161.3 mm

Packaging data

Package weight:
2874 g
Package depth:
540 mm
Package height:
233 mm
Package width:
116 mm

Display

On Screen Display (OSD):
Yes
Built-in display:
No

System requirements

Windows operating systems supported:
Y
Mac operating systems supported:
Y
Linux operating systems supported:
Y

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
EU1 1 06.07.2026 Best delivery 282.49 €
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH109 5 23.07.2026 238.99 €
EU6 5 09.07.2026 283.99 €
WH109 5 23.07.2026 353.99 €
282.49 €
Stock: 1
Delivery Date: 06.07.2026 Best delivery
Warehouse: EU1
Available only for legal entities
238.99 €
Stock: 5
Delivery Date: 23.07.2026
Warehouse: WH109
283.99 €
Stock: 5
Delivery Date: 09.07.2026
Warehouse: EU6
353.99 €
Stock: 5
Delivery Date: 23.07.2026
Warehouse: WH109

Customer reviews

Customer questions

FAQ

How much does the KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G cost, and is it available for purchase?

The price is 238.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 16 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 23.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ATEN products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ATEN service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: keyboard port type, mouse port type, video port type, weight, number of computers controlled, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for KVM Switch ATEN 16-Port USB PS/2 VGA CS1316-AT-G?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
