header-product KVM Switch ATEN 8-Port USB DVI Dual Link with Audio
708.99 €

KVM Switch ATEN 8-Port USB DVI Dual Link with Audio

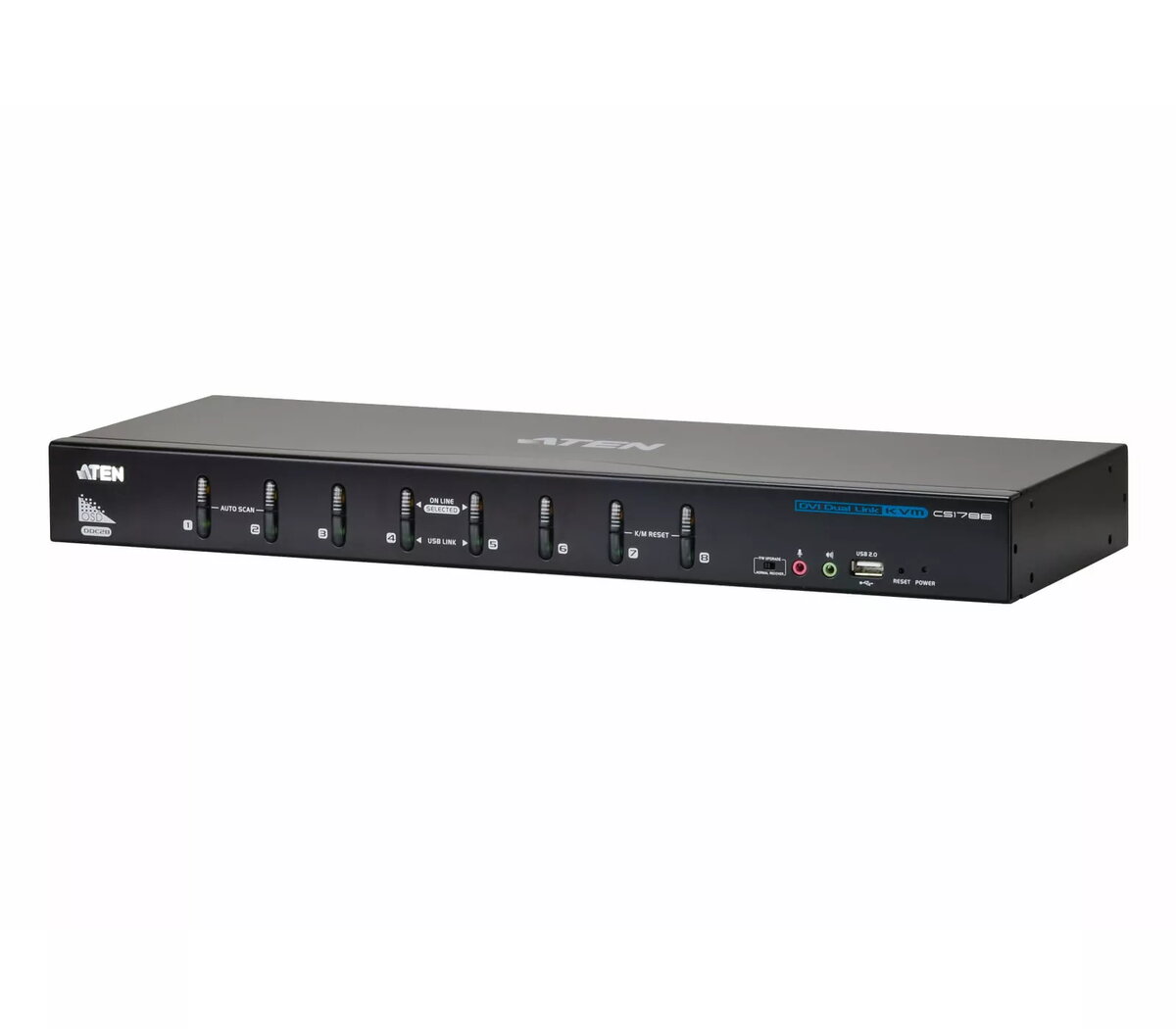

KVM Switch ATEN 8-Port USB DVI Dual Link Photo 1

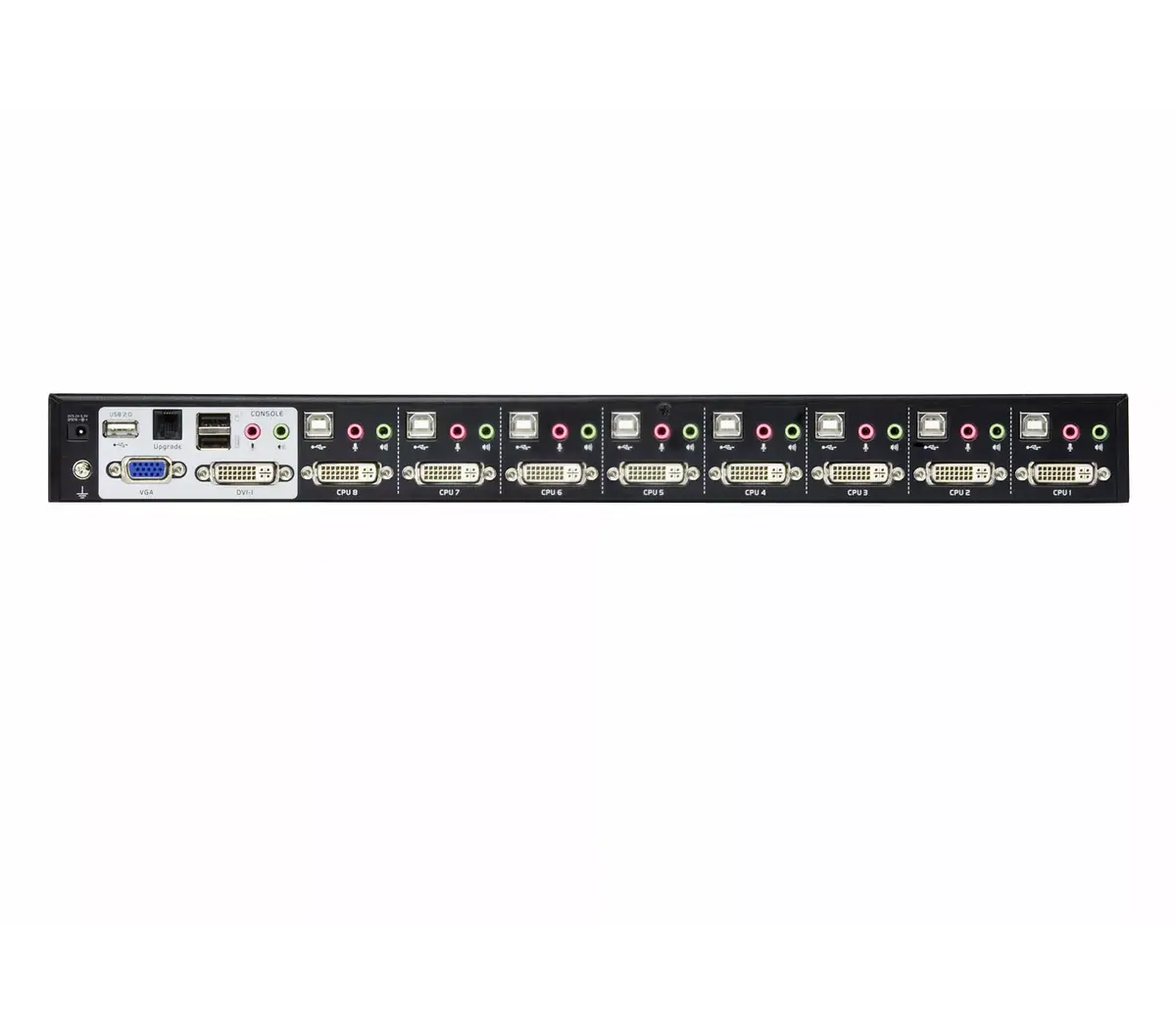

KVM Switch ATEN 8-Port USB DVI Dual Link Photo 2
KVM Switch ATEN 8-Port USB DVI Dual Link Photo 3
KVM Switch ATEN 8-Port USB DVI Dual Link Photo 1
KVM Switch ATEN 8-Port USB DVI Dual Link Photo 2
KVM Switch ATEN 8-Port USB DVI Dual Link Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

KVM Switch ATEN 8-Port USB DVI Dual Link with Audio

{{email}}
You keep track of price changes

KVM Switch ATEN 8-Port USB DVI Dual Link with Audio

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The ATEN 8-Port USB DVI Dual Link KVM Switch allows you to control up to 8 computers using a single keyboard, mouse, and monitor. It supports DVI-I video with a maximum resolution of 2560 x 1600 pixels at 60 Hz, ensuring high-quality visuals. The switch features USB ports for keyboard and mouse connectivity, and it is housed in a durable metal casing. With a compact design, it measures 437.2 mm in width, 161.2 mm in depth, and 44 mm in height, making it suitable for various setups. Power consumption is typical at 8.26 W, and it operates on a 5.3 V DC power source.
Available for order: 3 pcs.
Warranty: 2 Years
SKU: 1853711
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.96 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 24.67 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ATEN 8-Port USB DVI Dual Link with Audio (CS1788) KVM switch provides centralized control of up to eight computers from a single USB keyboard, USB mouse and DVI-I console. Designed for environments that require high-resolution video, it supports DVI-I dual-link output up to 2560 x 1600 at 60 Hz and offers audio support. The unit is housed in a durable black metal enclosure with a compact rack-friendly footprint (437.2 mm x 161.2 mm x 44 mm) and typical power consumption of 8.26 W operating from a 5.3 V DC power source.

Advantages

The CS1788 consolidates peripherals and video signals to reduce desk clutter and simplify multi-computer control. It supports USB keyboard and mouse interfaces for straightforward peripheral compatibility, DVI-I dual-link video for high-resolution displays, and a robust metal chassis for reliable long-term use. The switch can be cascaded and stacked to expand the number of controlled systems and displays without changing the primary console, enabling scalable deployment in IT and professional monitoring scenarios.

Suitable for

  • Server rooms and IT management stations controlling multiple servers
  • Design, post-production and visualization workstations requiring high‑resolution DVI output
  • Control rooms and monitoring stations with multi-computer setups
  • Environments that need scalable KVM solutions via cascading and multi-display stacking

Key specifications

  • Connects up to 8 computers from a single console (keyboard, mouse, monitor)
  • Video interface: DVI-I Dual Link supporting up to 2560 x 1600 @ 60 Hz
  • Keyboard and mouse interface: USB
  • Audio support for integrated audio switching
  • Metal enclosure in black; compact rack-compatible dimensions: 437.2 mm (W) x 161.2 mm (D) x 44 mm (H)
  • Weight: 3.96 kg
  • Typical power consumption: 8.26 W; power input: 5.3 V DC
  • Supports cascading and multi-display stacking for scalable configurations

How to use

Install the CS1788 in a rack or place it on a stable surface and connect the supplied power adapter. Plug the console keyboard, mouse and DVI monitor into the front or designated console ports and connect each target computer using compatible USB and DVI cables. Use the local front-panel controls, hotkeys from the keyboard, or on-screen display (if available) to switch between connected computers. For larger installations, follow ATEN’s cascading and stacking instructions to extend control to additional switches and to configure multi-display monitoring.

Usage recommendations

Use certified DVI dual-link cables and quality USB peripheral cables to ensure full resolution and responsive control. When deploying cascaded or multi-display configurations, plan cable lengths and rack placement to minimise signal degradation and ensure adequate ventilation for the metal chassis.

Specifications

Keyboard port type:
USB
Mouse port type:
USB
Video port type:
DVI-I
Weight:
3.96 kg
Number of computers controlled:
8
Product colour:
Black
All features

Packaging content

Manual:
Yes
Quick installation guide:
Yes

Ports & interfaces

USB connector type:
USB Type-A, USB Type-B
Headphone outputs:
10
DC-in jack:
Yes
DVI-I ports quantity:
8
Keyboard port type:
USB
Mouse port type:
USB
Video port type:
DVI-I
Number of computers controlled:
8
Audio connections:
Yes
Number of microphone inputs:
10
USB hub:
Yes
Console ports:
3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
Console USB ports quantity:
2
USB 2.0 Type-B ports quantity:
8
USB 2.0 Type-A hub ports quantity:
2

Performance

Maximum resolution:
2560 x 1600
Scan interval:
5, 1, 255
HD type:
WQXGA
Video bandwidth:
60 Hz

Display

Built-in display:
No

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
8.26 W
Power source:
DC
Input voltage:
5.3

Operational conditions

Operating relative humidity (H-H):
0 - 80
Storage temperature (T-T):
-20 - 60
Operating temperature (T-T):
0 - 50
Storage relative humidity (H-H):
0 - 80

Logistics data

Master (outer) case height:
258 mm
Master (outer) case width:
420 mm
Master (outer) case gross weight:
14150 g
Master (outer) case length:
565 mm
Products per master (outer) case:
3 pc(s)
Master (outer) case net weight:
11880 g
Harmonized System (HS) code:
85176200

Packaging data

Package weight:
4481 g
Package depth:
540 mm
Package height:
233 mm
Package width:
131 mm

Weight & dimensions

Weight:
3.96 kg
Height:
44 mm
Width:
437.2 mm
Depth:
161.2 mm

Design

LED indicators:
Y
Product colour:
Black
Housing material:
Metal
Push button:
Yes

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the KVM Switch ATEN 8-Port USB DVI Dual Link cost, and is it available for purchase?

The price is 708.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 3 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 23.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ATEN products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ATEN service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: keyboard port type, mouse port type, video port type, weight, number of computers controlled, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for KVM Switch ATEN 8-Port USB DVI Dual Link?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
